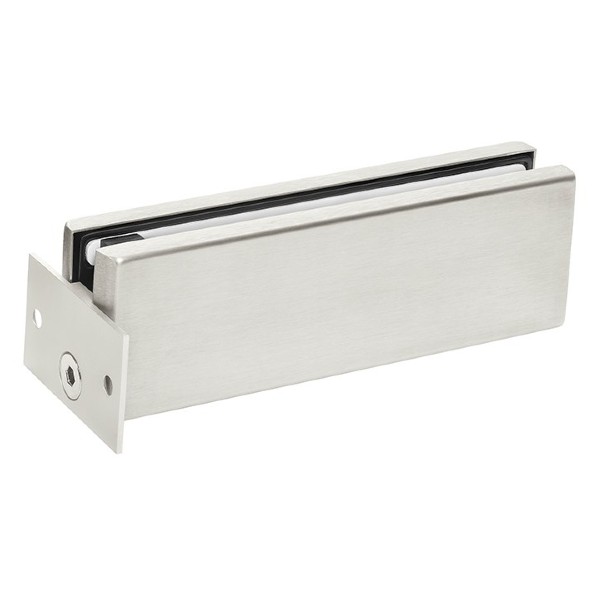

Assa Abloy PFT-34 Glass Door Transom Patch with Wall Bracket and Pivot, Stop or Blank Insert

Assa Abloy PFT-34 Glass Door Transom Patch, with Blank insert, Clear Anodized Aluminum (US28) Finish
Rockwood Company

Assa Abloy PFT-34 Glass Door Transom Patch is suitable for top pivot point installation, it is connected/installed to the wall using it's wall bracket. Can be used with different adapters for glass doors. This product is manufactured to meet the industry standard dimensions and it's synthetic gasketing offers ultimate durability.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      RKPFT-34US28B
    • Market price:$92.00
      • save 5%
    • Starting price: Price: $87.40 per item


    ASSA ABLOY provides glass patch fittings for doors, sidelites, and transoms, offering designers and architects a complete selection of products for most frameless glass configurations. With a maximum door weight of 300 lbs., our glass patch fitting design is manufactured to meet the industry standard and deliver the ultimate in strength and reliability.

    Features:

    • Manufactured for industry standard dimensions
           - Standard glass prep
           - 2-3/4" pivot centerline
    • Snap-on cover
    • Used with monolithic or laminated glass
    • Synthetic gasketing provides ultimate durability
    • Includes Pivot Insert

    Dimension:

    • Body : 6-7/16 (Length) x 2-1/16 (Height)
    • Wall Plate: 1-7-16" (Height) x 2-3/8" (Width)

    Specification:

    • Maximum Door Weight: 300 lbs. (42" maximum door width)
    • Door Thickness: 3/8", 1/2", 9/16"
    • Material:
             • Stainless steel inserts
             •Aluminum body
             •Aluminum or stainless steel cover

    Compatible Parts : (Sold Separately)

    PRICED PER PIECE

    Click here to view our Assa Abloy PFD-100 Bottom Glass Door Patch

      • SKU
        RKPFT-34US28B
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      PFT-34
    • Product Details
      • Application
        Transom Patch
      • Lock Included
        No
      • Body Material
        Aluminum
      • Inserts Material
        Stainless Steel
      • Cover Material
        Aluminum or Stainless Steel
      • Max Door Weight
        300 lbs
      • Included Part
        Pivot Insert, Stop Insert, Blank Insert
    • Dimensions
      • Door Thickness
        1/2", 9/16"
      • Max Door Width
        42"
      • Pivot Center Line
        2-3/4"
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Extra Dark Anodized Equivalent (US314E), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Translucent Brass Powder Coat (US4E)
