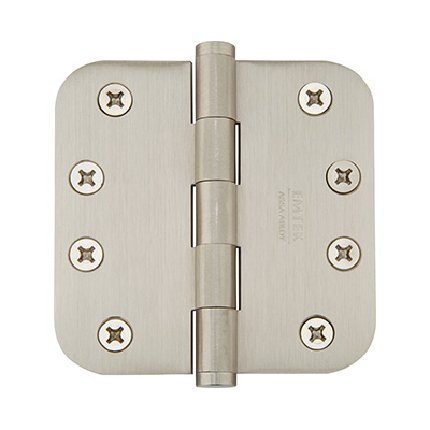

Emtek 96134 Brass Plain Bearing Hinge, 4" x 4", 5/8" Radius - SOLD IN PAIRS

Emtek 96134 Solid Brass 4x4 Hinge with 5/8" Radius Corners, US15 Finish
Emtek

Emtek #96134 Residential Duty, Solid Brass Hinges will complement your door and ensure a matching finish to other Emtek Hardware. Hinges are sized 4" x 4", are plain bearing with 5/8" Radius Corners and are available in selection finishes.

PRICED PER PAIR

Buy more for less:
1-23 items $52.98 / each
24 or more items $50.33 / each save 5%
See tabs below for additional information
    • Weight
      0.2 lbs
    • SKU
      EM96134-US15
    • Market price:$66.22
      • save 20%
    • Starting price: Price: $52.98 per set


    Emtek #96134 Residential Duty, Solid Brass Hinges will complement your door and ensure a matching finish to other Emtek Hardware.

    • Dimensions: 4" x 4"
    • Thickness: 0.098" Thickness of Hinge Leaf
    • Fasteners: #9 x 3⁄4” screws provided
    • Material: Solid Brass
    • Screws Holes: 8

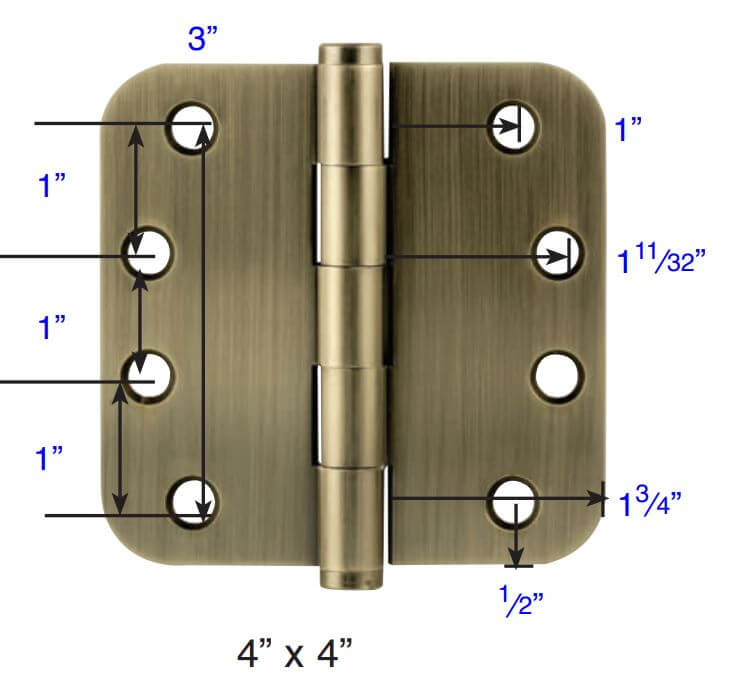

    • Hole Pattern: C Shaped Template
    • Priced and Sold in Pairs
    • See specification tab for more information

    About Plain Bearing Hinges: Plain bearing hinges feature knuckles that move against each other without additional bearings. They are designed for standard residential use and not recommended for heavy traffic entryways. For heavy traffic, consider a Ball Bearing Hinge.

    About the Material: Solid Brass is made of copper and zinc and is popular due to its aesthetics, resilience and durability. It is highly resistant to rusting and is available in a large variety of finishes. However it is significantly more expensive than its steel and stainless steel counterparts.

    Installation: This hinge is fully mortised. Three hinges should be used on doors up to 90". Add one additional hinge per each additional 30" of door height.

    Corners: This hinge is designed with 5/8" radius, also popular for fully mortised hinges are square corners and 1/4" radius hinges.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    See also our Emtek 96124 Solid Brass 4" x 4" Residential Hinge with 1/4" Radius Corners.

      • Weight
        0.2 lbs
      • SKU
        EM96134-US15
    • QuickShip
      No
    • Manufacturer
      Emtek
    • MPN
      96134
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Brass
      • Usage Level
        Residential Grade
      • Throw
        Standard Throw
      • Bearing Type
        Plain Bearing
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Removeable Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        5/8" Radius Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        4" x 4"
      • Hinge Thickness
        .098" Thick
    • Installation
      • Door Type
        Wooden Door
      • Installation Screws
        #9 x 3⁄4” Wooden Screws Provided
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL)
    • Compliance Details
      • Warranty
        5 Year Limited Warranty
