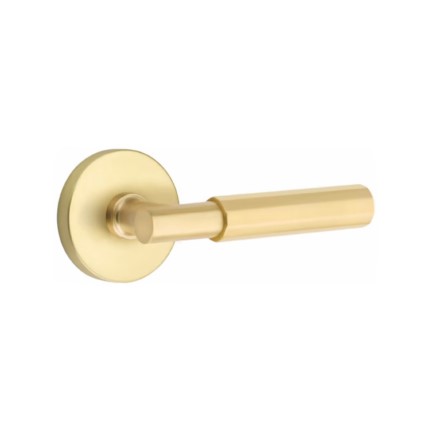

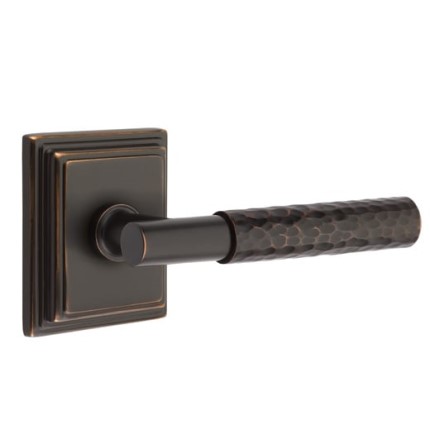

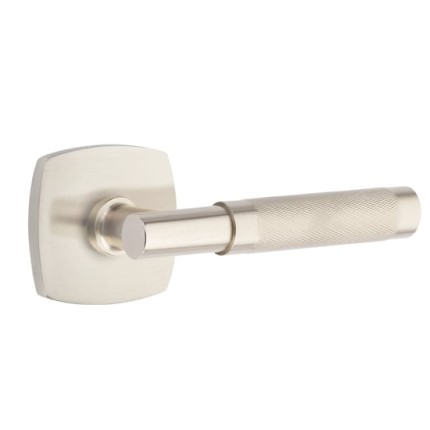

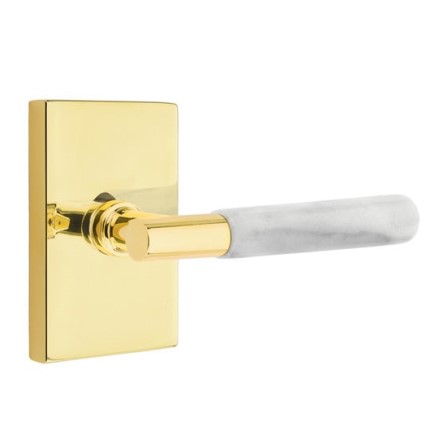

Emtek Select, T-Bar Series, Door Lever, Passage Function - Custom Options

With the Emtek SELECT T-Bar Door Handle series passage function, you can create hundreds of different unique combinations that are built especially for you and your home project. The T-Bar door handle fits any door between 1-3/8” to 2-1/4" thick. Standard latch is for 2-3/8" backset. This lever set is sold as a complete set, it includes Latch and Strike Plate.

You can mix and match this lever set with different rosette styles, handle styles, finishes, and functions for a more customized/personalized look. (NOTE: Stem and Handle will be permanently affixed )

Custom Options:

• Finish: selection of finishes available, select above.
• Handle Style: selection of different Handle styles, select above. See the Handle tab for images

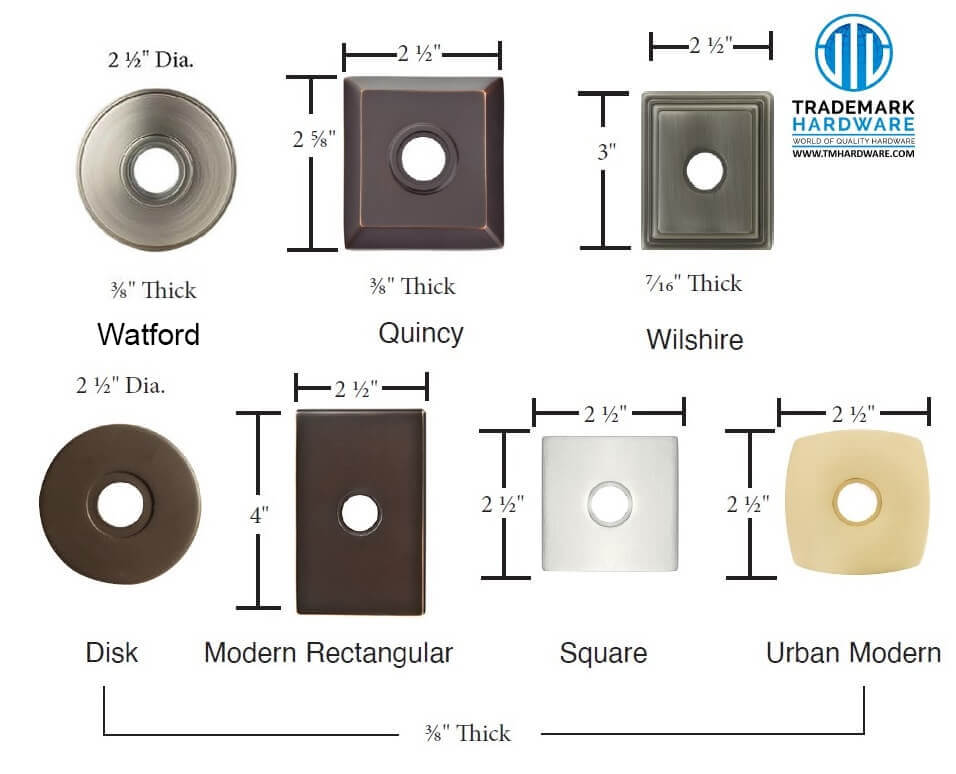

• Rosettes: selection of different rosette styles, select above. See the rosettes tab for images
• Functions: selection of different functions, select above
• Handing: Available on Right or Left, select choices above
• 28° Latch: A latch that requires less rotation on the handle to disengage the latch. Useful for people with ergonomic concerns, like users who suffer from arthritis.

Upgrade Options

• Magnetic Latch: When the door is closing, it magnetizes into the strike case automatically by a magnetic force. Ensures a smooth and silent operation by reducing friction when door closes, providing a superior experience compared to traditional latches, and limiting wear on the closure.
• Concealed Fasteners: this upgrade conceals screws on the interior rosette. This option comes with a 28° Rotation Latch. Please click the checkbox to avail this option.  (Note: The dummy function will have concealed fasteners on the exterior side only as a standard. Don't check this option when ordering the Dummy Function)

Specifications:

• Door thickness: 1-3/8"- and 1-3/4". For 2 inches and above, please contact customer service.
• Backset: comes with a 2-3/8" as a standard. Please use the checkbox above to change it to 2-3/4"
• Bore Hole: 2-1/8" diameter
• Cross Bore: 1"

PRICED PER UNIT

This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
