Falcon 25-C-EO Concealed Vertical Rod Exit Device, Heavy Traffic Applications, Metal Doors - Exit Only

Falcon 25-C-EO Concealed Vertical Rod Exit Device, Heavy Traffic Applications, Metal Doors - Exit Only
Falcon

Falcon 25-C-EO heavy duty concealed vertical rod exit device with Exit Only Function for high traffic applications. Grade 1 standards, made with extruded aluminum construction to deliver greater strength and impact resistance. Available in a variety of finishes and trims.

PRICED PER PIECE - See full product details and specs in the tabs below.

See tabs below for additional information
    • SKU
      FL25-C-EO_US3
    • Market price:$2,241.00
      • save 35%
    • Price: $1,456.65
    Additional discounts will be applied when added to cart!

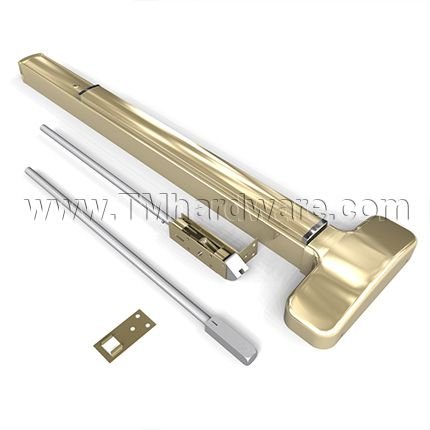

    Falcon Heavy-Duty 25-C-EO Series Exit Device with concealed vertical rod for panic and fire-rated applications.

    Options:

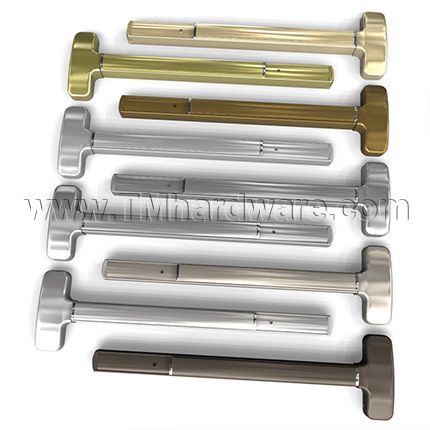

    Finishes: Available in a choice of 9 finishes options: US28, US32D, 313AN, US26D, US26, US32, US10, US4 and US3. 313AN finish will be provided in trims with SP313 finish.

    Device Size: Choose from 3 size options; For door up to 24", 36" (33" device) or 48" (45" device) wide. Device can be easily cut to size on the field.

    Applications: For high traffic applications including offices, retail, healthcare, churches and educational facilities. Can be used on exterior, interior, new construction and retro-fit applications.

    Design: Sleek architectural design with streamlined touch bar and no exposed screws or rivets on the back of the device. Scratch-resistant stainless steel pushpad cover and flush end caps. Patent pending deadlocking technology built into device. Center case is heavy wrought with sintered metal parts.

    Latchbolt: Top stainless steel, 3/4" throw. On 25-C, bottom bolt 1/2" throw.

    Handing: Specify Right Hand Reverse (RHR) or Left Hand Reverse (LHR). To determine door handing see our How To Determine Door Handing and Swing.

    Door Type: For metal doors.

    Door Thickness: For 1 3/4" thick doors, specify if other.

    Mounting Height: Furnished to length based on 40 1/4" horizontal centerline to finished floor. Variations to centerline must be specified in order comments. Please select height in tabs above and extension rods will be furnished to length.

    Stile: 3 1/2" minimum, 4 1/2" minimum on fire-rated doors.

    Projections: 2 3/4" maximum, 2" dogged.

    Strikes: 4188 mortised top. 2130 bottom standard, 4155 and 2126A bottom optional. For F-25-C, 1279 standard, F1280 optional, B label (1 1/2 hr.)

    Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out. Cylinder dogging available upon request (uses 1 1/8" mortise cylinder with standard cam.)

    Fasteners: All mounting screws are concealed, sheet metal screws standard. Machine screws available upon request.

    Installation: Simple to install, All mounting hardware included. See Installation Tab below.

    UL Listed: "A" label (3 hr.) : 4'0" x 10'0" single doors; 8'0" x 10'0" pair of doors (F-25-M x F-25-V or F-25-C). "B" label (1 1/2hr) with F1280 open back strike.

    ANSI: Certified ANSI A156.3-2001 grade 1 standards.

    Electric Functions: Can be interfaced with building security systems. Latch retraction, FSA/FSE trim, security monitoring, delayed egress and exit alarm available (EL fail-secure only). Subject to code requirements, state and local.

    Additional Options: Including shim kits for glass lite applications, mullions and cylinders are available through our office. To order please contact us or call our office at 845-388-1300.

    Priced per piece

    This product has a 10 year warranty against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

    Click here to view our Falcon 25-M Exit Device with Mortise Lock.

      • SKU
        FL25-C-EO_US3
    • QuickShip
      No
    • Manufacturer
      Falcon
    • MPN
      25-C-EO; F-25-C-EO
    • Product Options
      Exit Device 25-C-EO, Fire-Rated Exit Device F-25-C-EO
    • Finish Options
      Bright Brass #US3, Satin Brass #US4, Satin Bronze #US10, Bright Chrome #US26, Satin Chrome #US26D, Anodized Aluminum #US28, Bright Stainless Steel #US32, Satin Stainless Steel #US32D, Anodized Duranodic #313AN
    • Handing
      Right Hand Reverse (RHR), Left Hand Reverse (LHR)
    • Door Height
      7' Height (Standard), 8' Height, 9' Height, 10' Height

    Printable Documents:

    Click to print Falcon 25-C Exit Device Product Data.

    Dimensions:

    Falcon 25R Exit Device DimensionsFalcon 25R Exit Device Dimensions
