Deadbolt, Falcon D200 Series Grade 2

Deadbolt, Falcon D200 Series Grade 2
Falcon

Falcon D200 Series Grade 2 Deadbolt lock provides an extra measure of protection against break-in when used as a supplement to an existing lockset. Standard Deadbolt provided with door thickness 1-3/8" - 1-7/8", backset 2-3/8" - 2-3/4" adjustable, non-handed, 6-Pin, Solid brass, Keyed 5-Pin, Falcon G keyway, Keyed different (KD) cylinder. Variety of functions and finishes available.

See tabs below for additional information
    • SKU
      FLD251_605
    • Market price:$76.00
      • save 35%
    • Starting price: Price: $49.40 per item


    Click here to view the Falcon D200 Series from the Falcon Full Line Catalog

    Handing: Non Handed, May be used on right hand or left hand doors swinging in or out.

    Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

    Trim:

    • Locks are solidly attached to the door by 1/4" heat-treated steel bolts. These bolts pass through a steel plate (D211, D221 and D241) or the inner cylinder housing (D231) and thread directly into the back of the  outer cylinder housing.

    Material: Wrought brass or bronze reinforced with steel insert.

    Keys: Two, Nickel silver cut keys per lock

    Keyway: Falcon G keyway standard

    Additional Keying Options: Additional keying options and keyways available through our office.

    Cylinder / Core:

    • Furnished with solid brass plug and housing.
    • 6-Pin Chambers, Keyed 5-Pin, Falcon G keyway, Keyed different (KD).

    Interchangeable Cores: (Can be purchased through our office.)

    Additional Cylinder Options: (Can be purchased through our office.)

    • Keyed 6-Pin or 7-Pin
    • Construction Cores
    • Small Format Interchangeable Core (SFIC)

    Door Thickness: 1-3/8" - 2-1/4" standard. Other thicknesses available through our office.

    Backset: 2-3/8" - 2-3/4" adjustable deadbolt

    Deadbolt:

    • Housed within the deadbolt is a free-turning, 1/4" thick, hardened steel, saw-resistant roller.
    • 1-1/8" x 2-1/4", Square corner faceplate
    • 1" housing diameter
    • 1" throw
    • 1" projection

    Strike: 2-3/4" x 1-1/8" lipless, with box. Optional ANSI, T-strike, full lip strikes or security strike available through our office.

    Screws: Furnished with wood/machine screws for use on wood or metal doors or frames.

    Reinforcement: Metal dust box reinforcer with three - 3" screws

    Trim Ring: 1" Wrought brass or bronze, reinforced with security insert

    Functions:

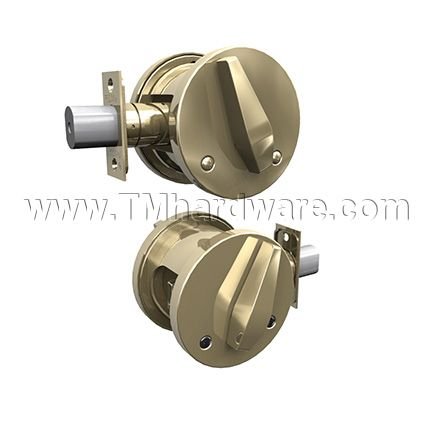

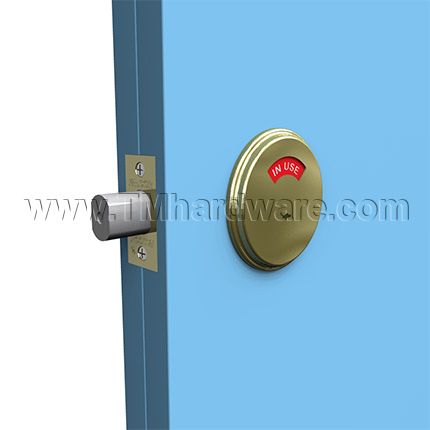

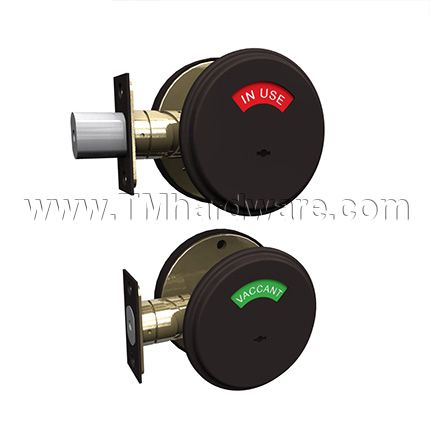

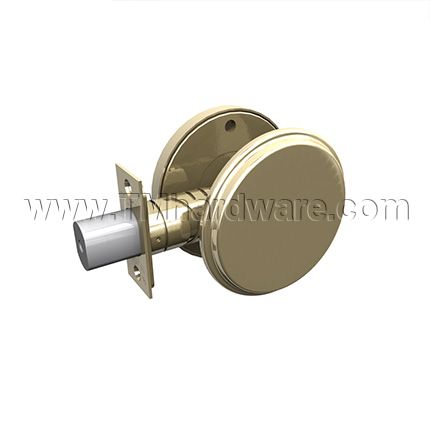

    • Non-Keyed Functions: D251-Turn Both Sides, D261-Thumbturn Inside Only, D261M-Thumbturn with Rose Inside, D271-Thumbturn with Inside Occupancy Indicator
    • Keyed Functions: D211-Classroom Function, D221-Single Cylinder with Blank Rose, D231-Double Cylinder, D241-Single Cylinder with Turn
    • See D200 Series Functions for more information
    • 8 options available. Choose from options above.

    Options available through our office only:

    • Additional latches and strikes
    • Additional cylinders and keyways
    • Additional Dustboxes, strikes
    • Additional Keys, or Large Bow Keys

    Compliance Details:

    • BHMA - ANSI A156.5, 2001, Grade 2 auxiliary lock
    • Available UL Listed for 3-Hour fire door-to be purchased through our office
    • See Compliance Details Tab for corresponding ANSI numbers

    Priced Per Set.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    Product has a 1 year warranty against defects in material and workmanship
     Click to view our Full Warranty Policy.

    Click here to see Deadbolt Lock Falcon D100 Series Grade 2

      • SKU
        FLD251_605
    • QuickShip
      No
    • Manufacturer
      Falcon
    • MPN
      D200
    • Function
      D251-Thumbturn Both Sides (Non-Keyed), D261-Thumbturn Inside Only (Non-Keyed), D261M-Thumbturn with Blank Rose, D271-Thumbturn with Occupancy Indicator, D211-Classroom Function, D221-Single Cylinder with Rose, D241-Single Cylinder with Turn, D231-Double Cylinder Deadbolt
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D)

    Finishes comply with the following ANSI/BHMA Codes:

    • Bright Brass -US3/605
    • Satin Brass - US4/606
    • Oil Rubbed Bronze -US10B/613
    • Bright Chrome -US26/625
    • Satin Chrome -US26D/626

    *All locks shall meet the BHMA - ANSI A156.5, 2001, Grade 2 auxiliary lock

    *Locksets can be UL Listed for 3 hour fire door-Available for purchase through our office
