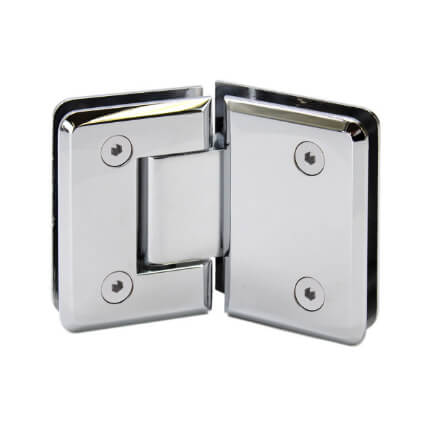

FHC Preston Beveled 5 Degree Positive Close Glass To Glass Hinge for Shower Doors - 135 Degree

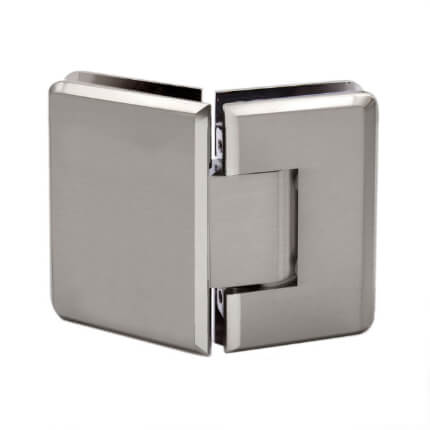

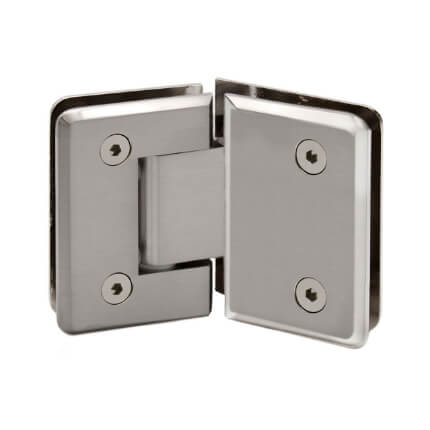

FHC Preston Beveled 5 Degree Positive Close Glass To Glass Hinge for Shower Doors - 135 Degree, Satin Nickel (US15) Finished
FHC - Frameless Hardware Co.

FHC Preston Beveled 5 Degree Positive Close Glass To Glass Hinge for Shower Doors is bathroom glass shower door hinges accessories designed for 3/8" - 1/2" Tempered Glass. They are very helpful for constructing a frameless shower or bathtub closet in a home or business bathroom. Available in different finishes.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      FHPRES535BN
    • Starting price: Price: $171.05 per item


    FHC Preston Beveled 5 Degree Positive Close Glass To Glass Hinge for Shower Doors is bathroom glass shower door hinges accessories designed for 3/8" - 1/2" Tempered Glass. The Preston Series Hinge has a dual degree pivot pin. It is pre-set at 90 degrees for standard door closing applications at the factory. For jobs that demand a firmer positive position against a jamb or seal, there is also a secondary setting on the hinge pivot pin that may be field adjusted to allow an additional 5 degrees of closure.

    FHC Preston Beveled 5 Degree Positive Close Glass To Glass Hinge for Shower Doors Features:

    • Glass Sizes: 3/8" to 1/2" (10 to12 mm) Tempered Glass Only
    • Construction: Solid Brass Construction
    • Closing Type: Self-Centering When Within 15 Degrees of Closed Position
    • Cutout Required: Cutout No. SD41
    • Includes: Hinge, glazing gaskets, wall mounting screws, Allen head/Philips head cover plate screws, and fabrication template.
    • Use: Residential Bath and Commercial Hotel Applications
    • Beveled Edges and Corners
    • Easily Converts to 5 Degree Offset
    • Used in 135 Degree Glass to Glass Applications
    • Many Popular Finishes to Select From.

    PRICED PER UNIT

    This product has a period of three (3) years warranty against defects in material and workmanship. All other Shower Door Hardware is warranted for one (1) year following the date of invoice. Click to view our Full Warranty Policy.

    For additional designs, see our FHC Preston Beveled Glass To Glass 135 Degree Hinge for Shower Doors - 3/8" - 1/2" Tempered Glass

      • SKU
        FHPRES535BN
    • QuickShip
      No
    • Manufacturer
      FHC - Frameless Hardware Co.
    • Product Design
      • Handing
        Non-Handed
      • Hinge Corner
        Radius Corner

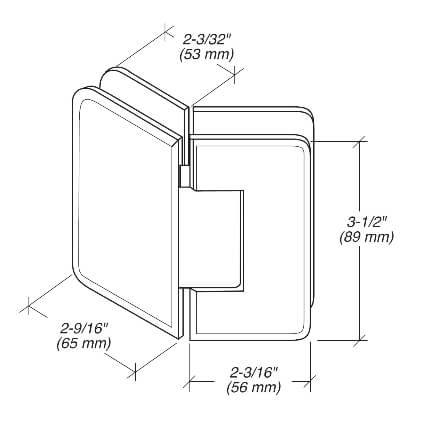

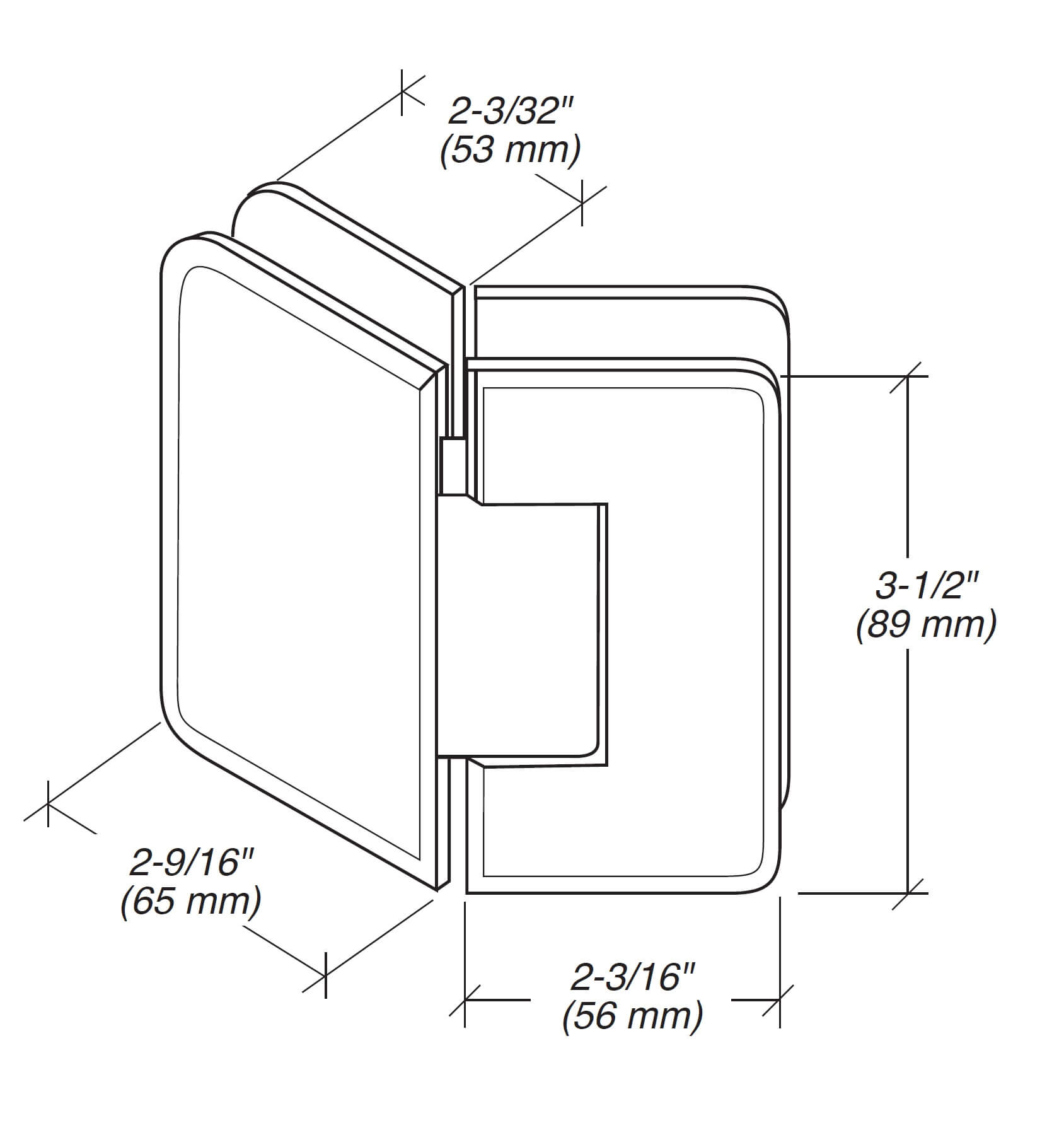

    • Dimensions
      • Hinge Size
        2-3/16"
      • Hinge Height
        3-1/2"
    • Installation
      • Door Type
        Glass Door
    • Finishes
      • Finish

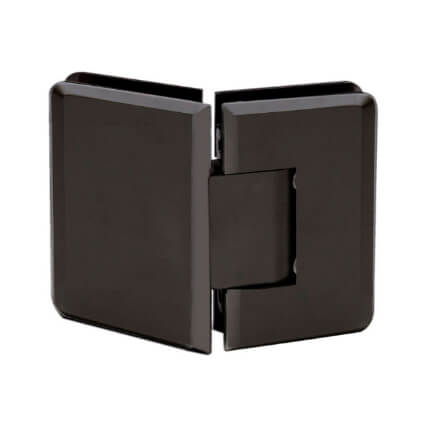

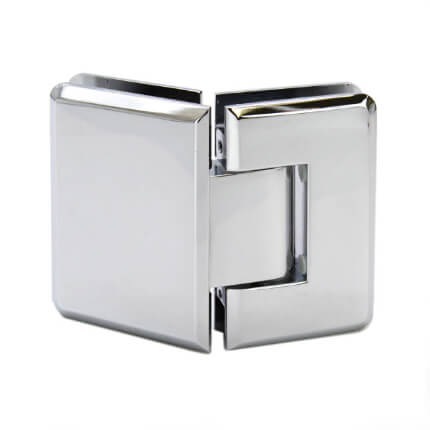

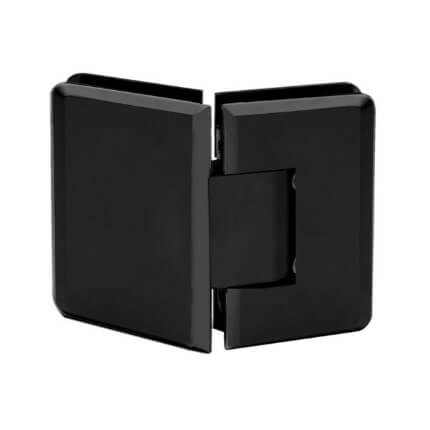

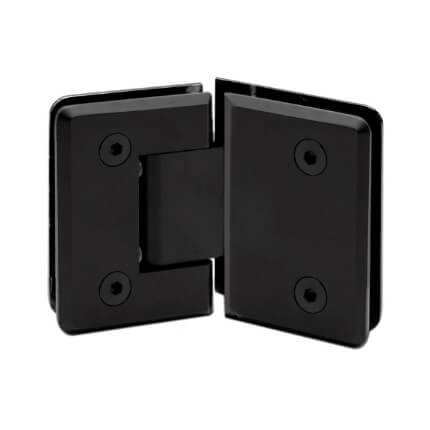

        Satin Nickel (US15), Polished Chrome (US26), Matte Black (BLK), Oil Rubbed Bronze (US10B)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty
