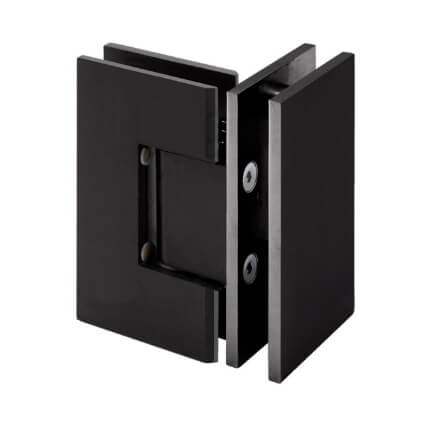

FHC Venice Square Glass To Glass 90 Degree Hinge for Shower Doors - 3/8" to 1/2" Tempered Glass

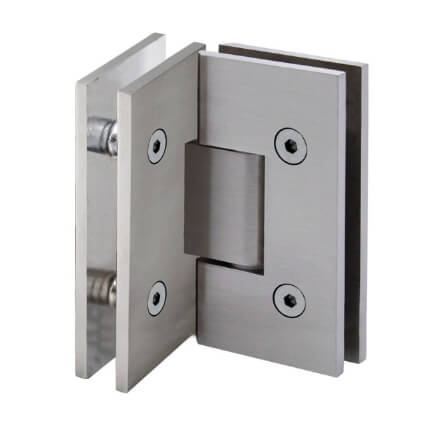

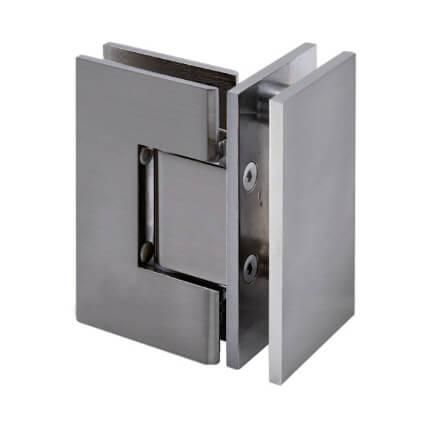

FHC Venice Square Glass To Glass 90 Degree Hinge for Shower Doors - 3/8" to 1/2" Tempered Glass, Satin Nickel (US15) Finished
FHC - Frameless Hardware Co.

FHC Venice Square Glass To Glass 90 Degree Hinge for Shower Doors is bathroom glass shower door hinges accessories designed for 3/8" - 1/2" Tempered Glass. They are very helpful for constructing a frameless shower or bathtub closet in a home or business bathroom. Available in different finishes.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      FHVEN90BN
    • Starting price: Price: $162.09 per item


    FHC Venice Square Glass To Glass 90 Degree Hinge for Shower Doors is bathroom glass shower door hinges accessories designed for 3/8" - 1/2" Tempered Glass. The Junior Glendale Series Hinge has a dual degree pivot pin. It is factory made. For standard door closing applications, set at 90 degrees. For jobs that demand a firmer positive position against a jamb or seal, there is also a secondary setting on the hinge pivot pin that may be field adjusted to allow an additional 5 degrees of closure.

    FHC Venice Square Glass To Glass 90 Degree Hinge for Shower Doors Features:

    • Glass Sizes: 3/8" to 1/2" (10 mm to12 mm) Tempered Glass Only
    • Construction: Solid Brass Construction
    • Closing Type: Self-Centering When Within 15 Degrees of Closed Position
    • Cutout Required: Cutout No. SD37 or SD38
    • Includes: Hinge body, glazing gaskets, mounting screws, Allen head/Phillips head cover plate screws, and fabrication template.
    • Use: Residential Bath and Commercial Hotel Applications
    • Used in 90 Degree Glass to Glass Applications
    • Can Support Larger Doors than Typical Hinges
    • Easily Converts to 5 Degree Offset
    • Many Popular Finishes to Select From.

    PRICED PER UNIT

    This product has a period of three (3) years warranty against defects in material and workmanship. All other Shower Door Hardware is warranted for one (1) year following the date of invoice. Click to view our Full Warranty Policy.

    For additional designs, see our FHC Venice Series 135 Degree Glass To Glass Hinge for Shower Doors - 3/8"-1/2" Tempered Glass

      • SKU
        FHVEN90BN
    • QuickShip
      No
    • Manufacturer
      FHC - Frameless Hardware Co.
    • Product Design
      • Handing
        Non-Handed
      • Hinge Corner
        Square Corner

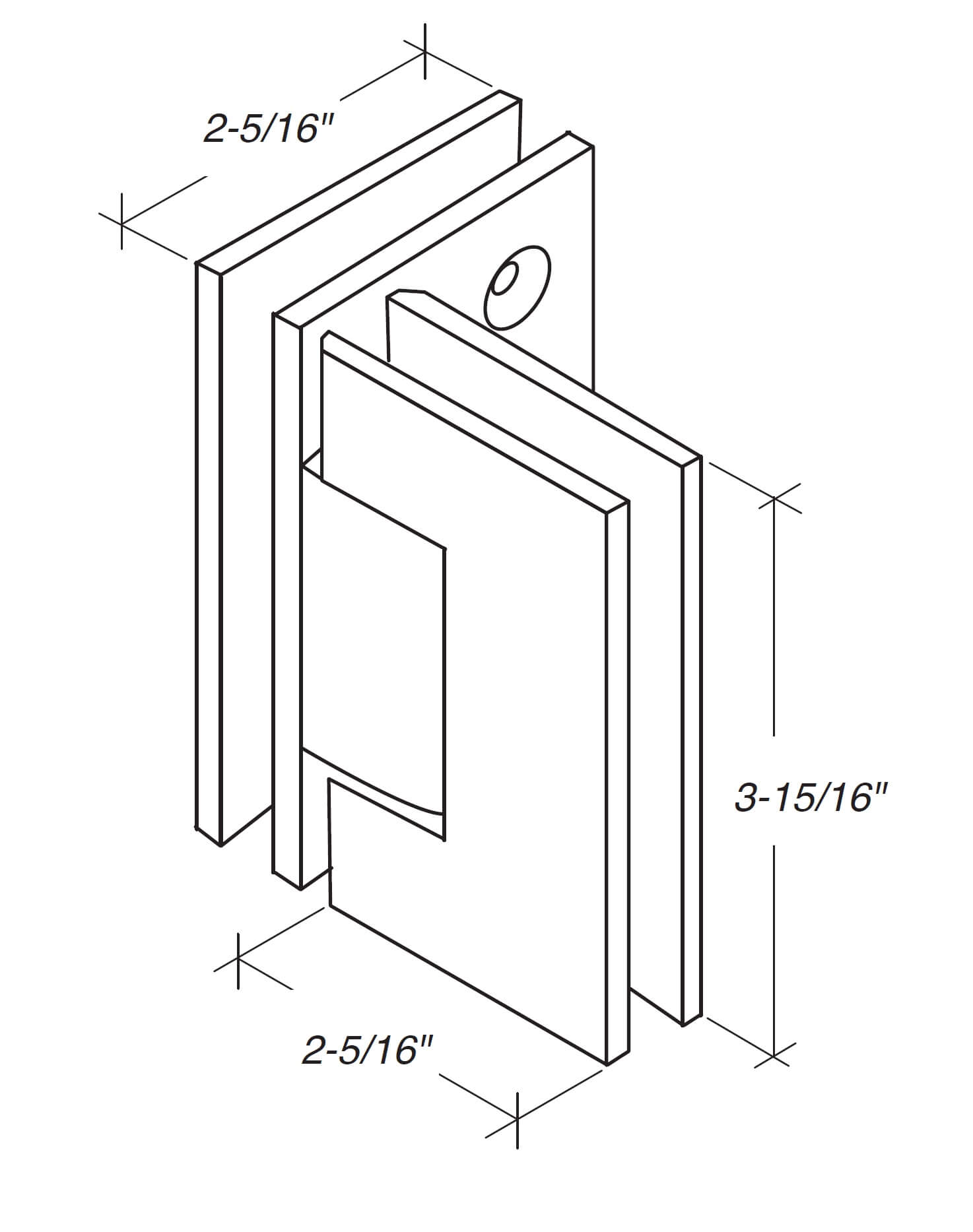

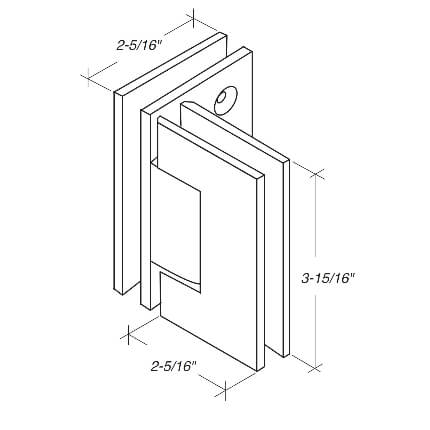

    • Dimensions
      • Hinge Size
        2-5/16"
      • Hinge Thickness
        2-5/16"
      • Hinge Height
        3-15/16"
    • Installation
      • Door Type
        Glass Door
    • Finishes
      • Finish

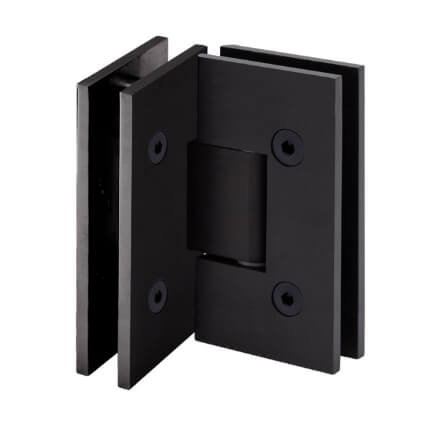

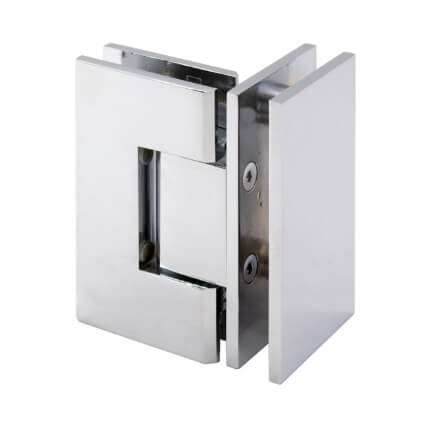

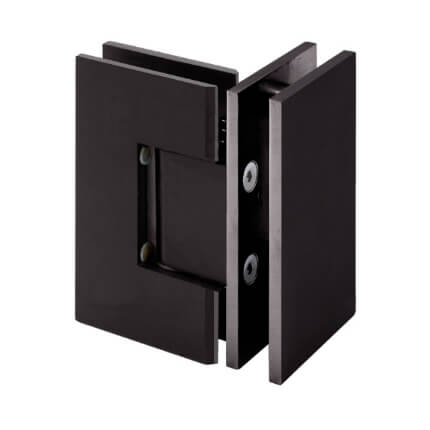

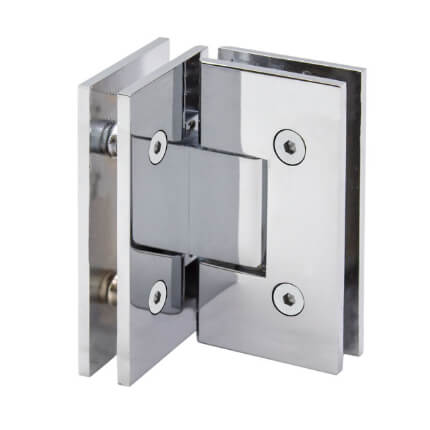

        Satin Nickel (US15), Polished Chrome (US26), Matte Black (BLK), Oil Rubbed Bronze (US10B)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty



    SHIPPING / PROCESSING TIME:


    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.00.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.
