Hafele Accuride 1234 Pocket Pivot Door System, Doors up to 30 LB

Hafele Accuride 1234 Pocket Pivot Door System, Doors up to 30 LB
Hafele

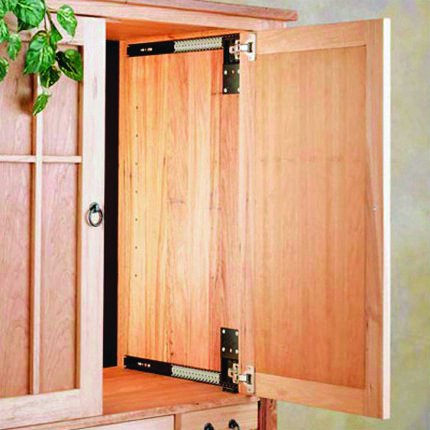

Hafele Accuride 1234 Pocket Door System is suitable for concealed doors in entertainment centers, wall units, and cabinets. The system is for horizontal and vertical mounting and has a maximum weight capacity of 30 lbs (13.6 kg). Includes sliding hardware for 1 doors, hinges not included.

See full product details and specs in tabs below

PRICED PER SET

See tabs below for additional information
    • SKU
      HF408.35.332
    • Market price:$84.98
      • save 20%
    • Starting price: Price: $67.98 per set


    Accuride Pocket Pivot Door System, click to view the Accuride 1234 Catalog.

    Suitable For: Concealed doors in entertainment centers, wall units, and cabinets

    Track / Travel Lengths:

     Length   Travel  Part Number
     12"  7-3/8"   408.35.332
     14"  9-3/8"  408.35.337
     16"  11-3/8"  408.35.342
     18"  13-3/8"  408.35.347
     20"  15-3/8"  408.35.352
     22"  17-3/8"  408.35.357
     24"  19-3/8"  408.35.357
     26"  21-3/8"  408.35.357
     28"  23-3/8"  408.35.357

    Load Bearing Capacity: 30 lbs (13.6 kg)

    Door Dimensions:

    • Vertical Doors: 42" H x 24" W max
    • Horizontal Doors: 42" W x 24" H max
    • Min Door Thickness: 5/8" thick
    • Maximum Door Thickness: 1-1/4" thick
    • Wood Follower Strip (not included): 3/4" thick max, Cut strip is 6" shorter than door height

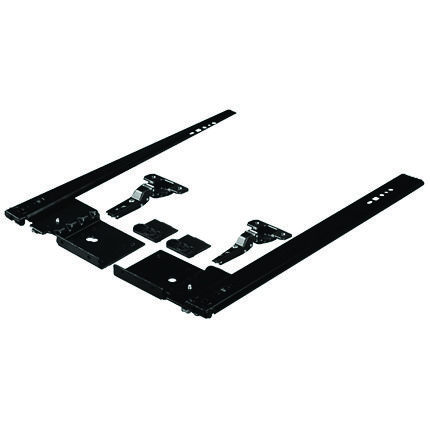

    Supplied with:

    • Two Slides
    • Two Pivot Blocks
    • All Mounting Hardware

    Compatible Hinges (Purchase separately):

    • #408.24.030 Hinge Kit - For doors up to 13/16" thick, 35 mm cup, To purchase full set with hinges, see our Accuride 123 Pocket Pivot System
    • #408.24.031 Hinge Kit - For doors 3/4" - 1-1/4" thick, 40 mm cup
    • #408.24.032 Hinge Kit - For doors up to 13/16" thick, 40 mm cup

    Material: Steel

    Finish: Zinc

    Color: Black

    Priced Per Set

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view Hafele Accuride 123 Pocket Door System (Includes 1-3/8" Hinges)

      • SKU
        HF408.35.332
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      408.35.332

    Click to Print

    Hafele Accuride 1234 Product Specs



     Part Number  A  B  C
     408.35.332   -  8-7/8"  6"
     408.35.337  -  8-7/8"  6"
     408.35.342  -  12-5/8"  9 7/8"
     408.35.347  -  13-7/8"  11 1/8"
     408.35.352  -  16-3/8"  13 5/8
     408.35.357  13-7/8"  18-7/8"  16 1/8"
     408.35.362  13-7/8"  18-7/8"  16 1/8"
     408.35.367  13-7/8"  21-1/2"  18 5/8"
     408.35.372  13-7/8"  24"  21 3/16"
