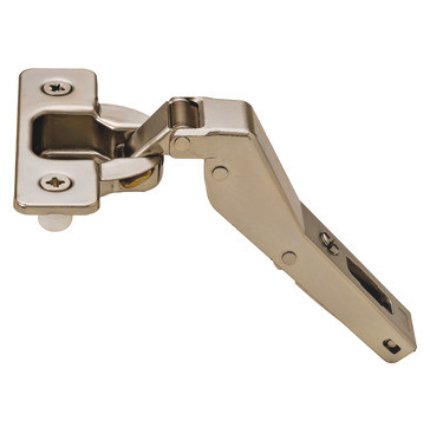

Salice Concealed Hinge, +45º Corner Hinge, 110° Opening Angle, Dowel, Overlay, Silentia+

Salice Concealed Hinge, +45º Corner Hinge, 110° Opening Angle, Dowel, Overlay, Silentia+
Hafele

For small or light door cabinet hardware, C7R6ME9 Silentia+, +45º Corner Hinge from Salice is the best choice. This kitchen cabinet hardware is made from steel, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures.

SOLD PER PIECE

Minimum purchase quantity: 2 units
See tabs below for additional information
    • SKU
      HF-329.25.447
    • Market price:$12.36
      • save 20%
    • Starting price: Price: $9.89 per item


    For small or light door cabinet hardware, C7R6ME9 Silentia+, +45º Corner Hinge from Salice is the best choice. This kitchen cabinet hardware is made from steel, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures..

    Features :

    • Keeps the door from slamming and provides a nice soft closing action
    • Material: Cup: Steel, Hinge arm: Zinc alloy

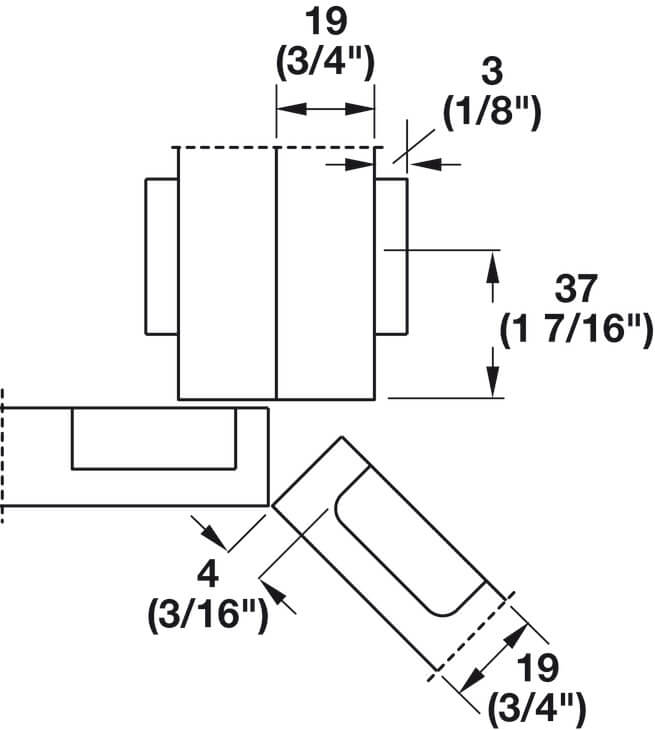

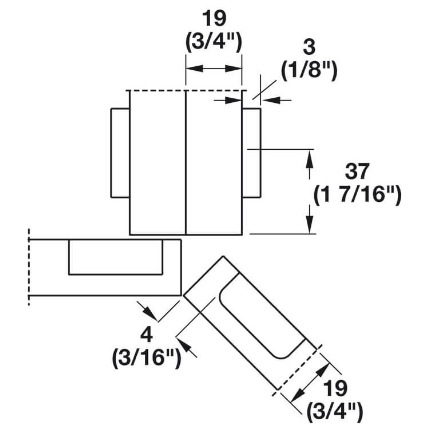

    Dimension:

    • Door thickness: 16–35 mm (5/8"–1 3/8")

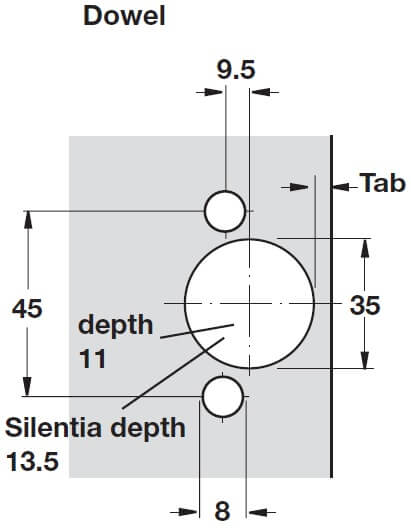

    • Cup Drilling Depth: 11 mm (7/16")
    • Tab: 3–9 mm (1/8"–11/32")

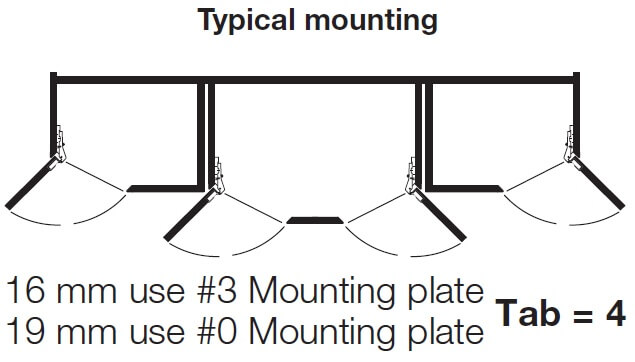

    Application: On a square end panel

    SOLD PER PIECE

    This product has a lifetime limited warranty against defects in material and workmanship
    Click to view our     Full Warranty Policy.

    Click here to view Salice Concealed Hinge, +45º Corner Hinge, 110° Opening Angle, Dowel, Overlay, Silentia+

      • SKU
        HF-329.25.447
    • Mounting Method
      Dowel
    • Cabinet Type
      Frameless
    • Degree of Opening
      110°
    • Overlay Type
      Overlay
    • Cup Mount
      Press Fit
    • Cup Diameter
      35mm
    • Cup Depth:
      11mm
    • Closing Method
      Silentia+
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      329.25.447
    • Finishes
      • Finish
        Nickel Plated
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty
