Hafele SLIDO D-Line11 80P Sliding Door Hardware with Ceiling Mount Track, up to 176 LB

Click here to view Hafele SLIDO 50P - 120P Catalog Pages.

Components - includes all components necessary to hang one door (track optional, select from above)

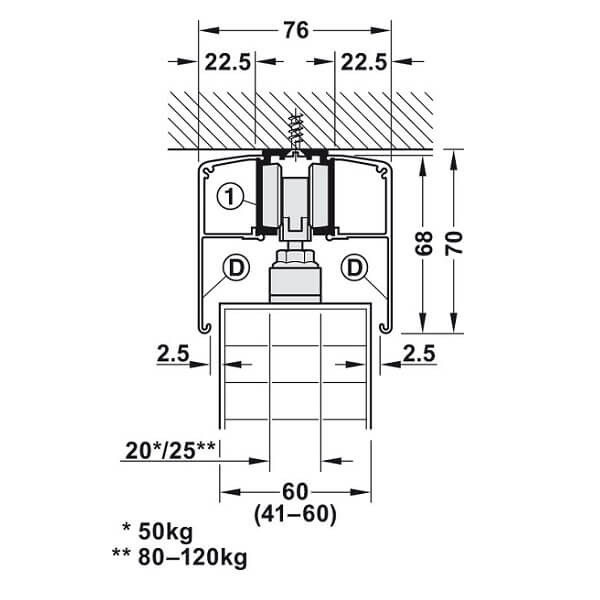

Track:

• Optionally provided with this set, select from above
• Length: 78.75" (2 m) Length,
• Material: Aluminum Mill Finish
• Mount Type: Single Ceiling mount track

Additional Tracks - select link to purchase separately

• Single ceiling mount track (as above) #940.43.921
• Wall Mounted Track #940.25.602
• Double Running Track for Bypass Doors #941.02.920
• Additional tracks, fascia, end caps and accessories are listed in SLIDO 50P Catalog. Contact our office for a quote or to purchase.

Features:

• Max Door Weight: 176 LB (80kg)
• Minimum Door Thickness: 1" (20mm)
• Height Adjustment: +/- 5/32" (4mm)
• Suspension with screwed on support flange, wall mounting and ceiling installation

Minimum Door Widths:

• No Self Closing Mechanism: 19-11/16" Min. Door Width
• Self Closing Mechansim on ONE Side: 19-5/8" Min. Door Width
• Self Closing Mechansim on BOTH Sides: 29-9/32" Min. Door Width

Soft and Self Closing Mechanism:

• Low opening force – easy and convenient operation
• Tested with increased speed up to 0.5 m/s
• Can be retrofitted or replaced at any time

Priced Per Set

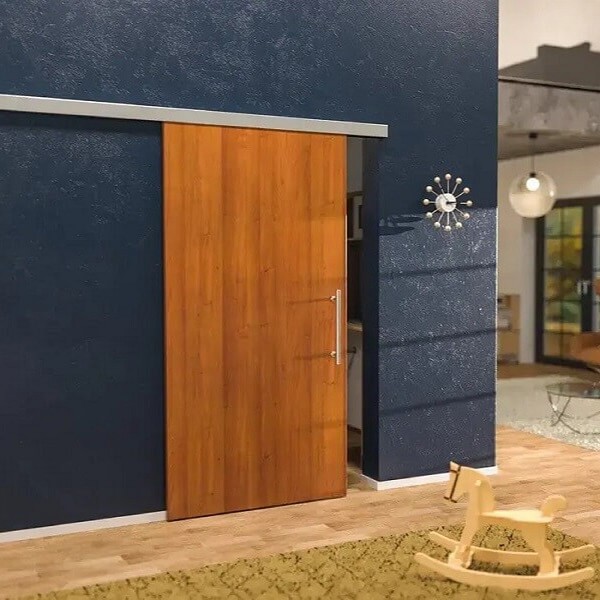

Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Need a solution for heavier doors? See our Hafele SLIDO 120P Single Sliding Door and Track.
