Hager 3400 Series Knob, Grade 1 - Keyed, Passage, Privacy or Dummy Functions

Hager 3400 Series Knob, Grade 1 - Keyed, Passage, Privacy or Dummy Functions
Hager Companies

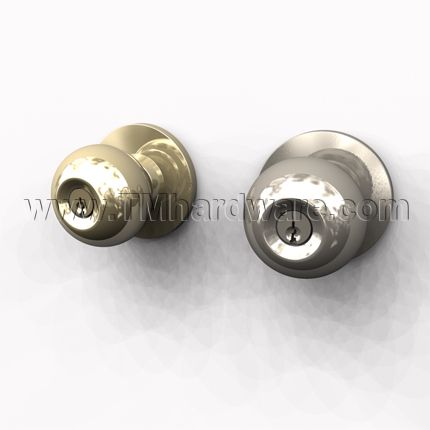

Hager 3400 Series Grade 1 Apollo Knob Lock is designed and engineered to withstand the most abusive environments. This product is non-handed and backed by a LIFETIME warranty! Many functions, finishes and options available. See below for details and pricing.

PRICED PER SET - See full product details and specs in the tabs below



See tabs below for additional information
    • SKU
      HG3410-US3-Knob
    Call for price!
    845-388-1300

    Click here to view Hager 3400 Series from Hager Full Line Catalog.

    Extra Heavy Duty, Commercial, Grade 1

    No Exposed Mounting Screws

    Handing: Non- Handed

    Knob Diameter: 2-9/32" (58mm)

    Rose Diameter: 3" (76mm)

    Exposed Trim: Wrought Brass or Stainless Steel

    Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance

    Keys: Two brass keys

    Cylinders: Brass 6-pin, Keyed 5 Pin, Keyed Different, C Keyway

    Additional Cylinder Options:

    • Keyed 6-Pin
    • Small Format Interchangeable Core (SFIC), Uncombinated or Combinated

    Additional Keying Options:

    • MK-Master key - Master Keying Form must be filled out
    • CMK-Construction master key
    • GMK-Grand master key
    • SK-Customer specified keying
    • "0" bitted cylinder
    • "1" bitted cylinder

    Additional Keyways: Available through our office (see figure below)

    Door Thickness: 1-3/8" - 1-3/4"

    Backset:

    • 2-3/4"
    • 2-3/8" Optional, please list on order comments before completing purchase

    Latchbolt:

    • 1/2" throw-stainless steel
    • 1-1/8" x 2-1/4" faceplate
    • Deadlocking latchbolt-prevents manipulation when door is closed; keyed functions only.

    Strikes:

    • ANSI 4-7/8" x 1-1/4" strike standard
    • Additional strikes available through our office

    Available Finishes: Polished Brass US3, Satin Stainless Steel US32D

    Option of split finish available: Lock can be purchased with one finish for the outside section of the lock and another for the inside.

    Certifications:

    • BHMA Certified ANSI A156.2, Series 4000, Grade 1
    • ANSI A250.13 Severe Windstorm Resistant Component
    • UL/cUL Listed for all functions up to 3 hours for ''A'' label single doors
    • UL10C Positive Pressure Rated
    • UL10B Neutral Pressure Rated

    Functions:

    • 10-Passage; 17-Dummy, 40-Privacy, 50-Office, 53-Entry, 70-Classroom, 80-Storeroom
    • See Hager Knob and Lever Functions for more information

    Standard Door Prep:

    • Cylinder hole: 2-1/8" diameter (cross bore)
    • Latch hole: 1" diameter (edge bore)

    Priced per piece

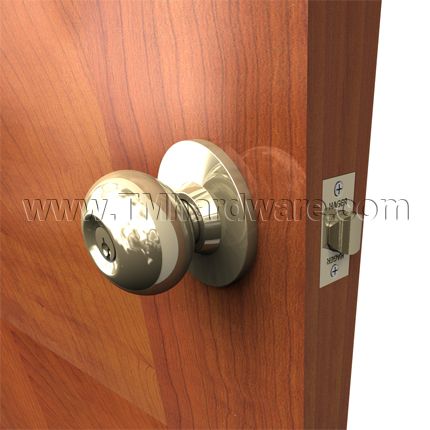

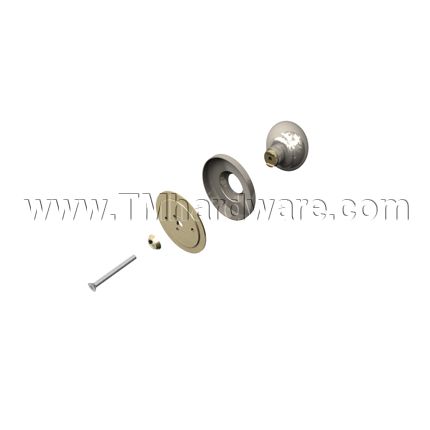

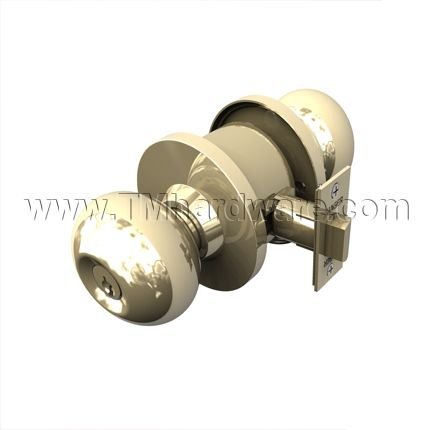

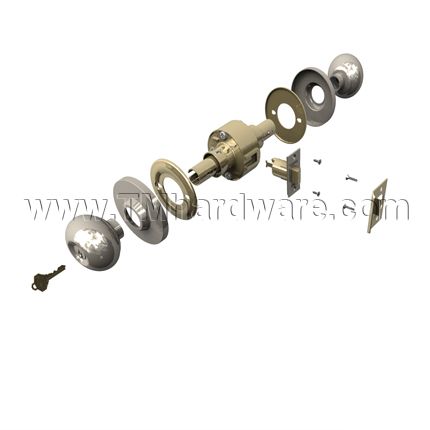

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Please see product specs tab for exact measurements. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    This product has a lifetime guarantee against defects in workmanship and materials.
    Click here to view our Full Warranty Policy.

    Click here to view all our Hager 3200 Grade 2 Lock Series.

      • SKU
        HG3410-US3-Knob
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      3400
    • Function
      10 - Passage (Non-Keyed ), 17 - Single Dummy (Non-Keyed ), 40 - Privacy (Non-Keyed ), 50 - Office, 53 - Entry, 70 - Classroom, 80 - Storeroom
    • Exterior Finish
      Bright Brass - US3, Satin Stainless - US32D
    • Interior Finish
      Same as Exterior Finish, Bright Brass - US3, Satin Stainless - US32D

    Click to Print Product Data Sheet

    Click to Print  Apollo Knob Product Dimensions

    Product Specs of Hager Apollo Knobr for 3400 Grade 1 Cylindrical Lockset

    Click to Print 3400 Series Knob Installation Instructions

    Click to Print 3400 Knob Installation Template

    Please note that all other necessary templates will be included in your order.

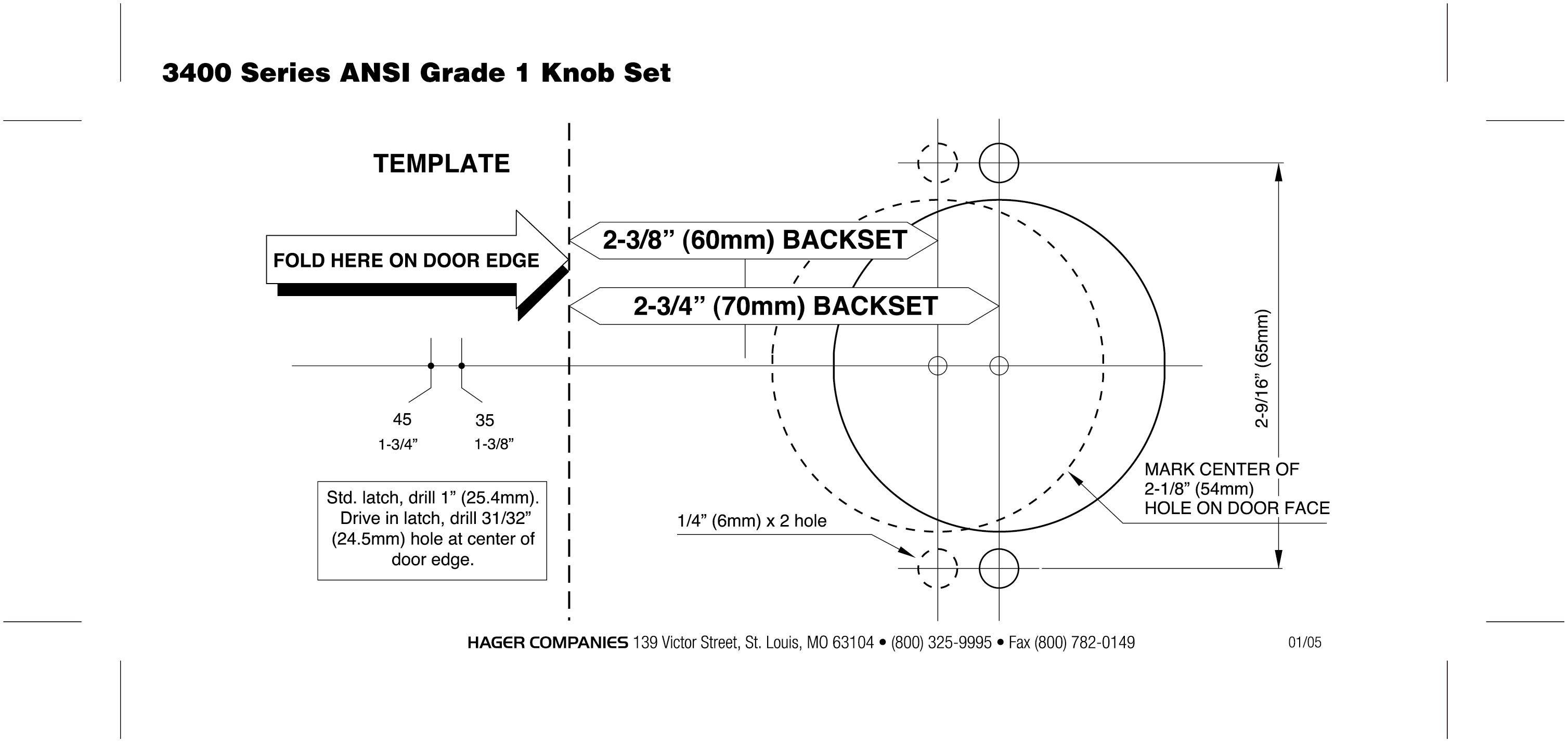

    hager 3400 series knob lock template

    Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    *All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Bright Brass-US3/605
    • Satin Stainless Steel-US32D/630

    *Lockset complies with ANSI A156.2 Series 4000 Grade 1; ANSI A250.13 Severe Storm Resistant Component.

    *UL/cUL listed for all functions up to 3 hours for "A" label single doors.

    *UL10C/UBC7-2 (1997) Positive Pressure Rated

    *UL10B Neutral Pressure Rated
