HES 5000 Electric Strike, For Cylindrical Locksets up to a 5/8" Latchbolt Throw

HES 5000 Electric Strike, For Cylindrical Locksets up to a 5/8" Latchbolt Throw
HES

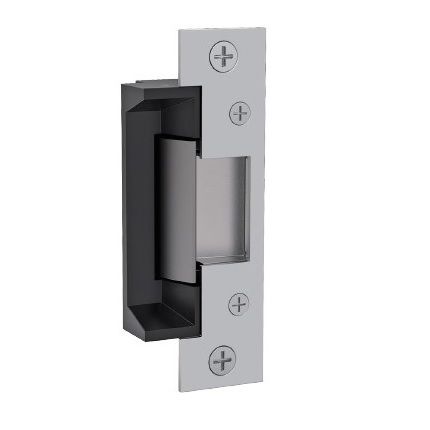

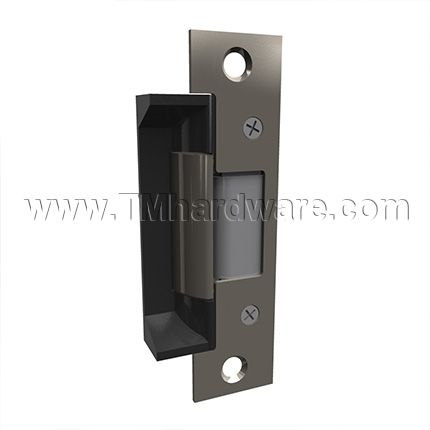

The HES 5000 model is a compact, high-performance electric strike that works with all brands of cylindrical locksets up to a 5/8" latchbolt throw. This strike is ideal for low profile openings with limited space behind the jamb. It features a unique keeper pin locking design, enabling it to exceed the product ratings. The strike includes the body only; for a complete package of an electric strike with faceplates, view the 5000C Complete Pac. Available in a choice of options; select from the dropdown below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HS5000-630
    • Market price:$205.00
      • save 40%
    • Starting price: Price: $123.00 per item


    Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES 5000 electric strike works with all brands of cylindrical locksets up to a 5/8" latchbolt throw.

    Parts Included:

    • Electric strike body
    • Trim enhancer & screws
    • 12 & 24 volt pigtails

    Faceplate kit is not included with this product and is available separately. For a complete package of an electric strike with faceplates, view the 5000C Complete Pac.

    Available Finishes: Satin stainless steel (630)

    Material: Heavy duty stainless steel

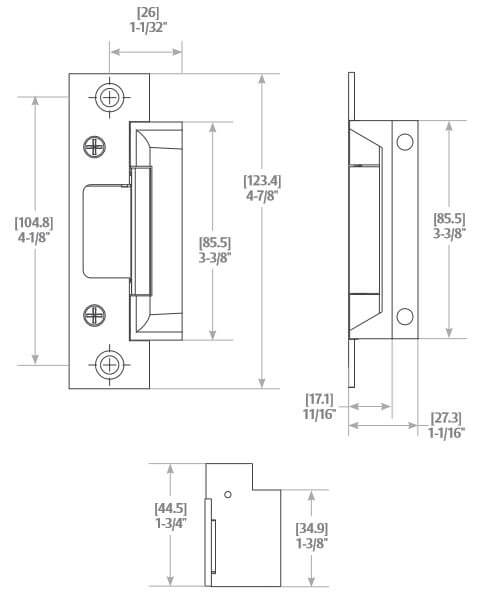

    Depth: 1-1/16" (27 mm)

    Height: 4-7/8" (123.4 mm)

    Shim Height: 3-3/8" (85.7 mm)

    Distance between Mounting Holes: 4-1/8" (104.8 mm)

    Strength:

    • Static - 1,500 lbs.
    • Dynamic - 70 ft-lbs.

    Handing: Non-handed

    Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.

    Operating Mode:

    • Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
    • Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

    The 5000 Electric Strikes Series ship configured for fail secure operation. See our Installation Instructions with steps provided on how to convert to fail safe operation, if desired.

    Electrical (DC Continuous Duty):

    • Dual voltage 12/24 VDC/VAC (Included)
    • 240 mA at 12 VDC/120 mA at 24 VDC
    • PoE friendly

    Features:

    • Tamper-resistant
    • Internally mounted solenoid
    • Plug-in connector
    • Endurance - 1 million cycles
    • Compact, high performance design - ideal for low profile openings with limited space behind the jamb
    • Unique keeper pin locking design - enables the product to exceed the ratings of the frame, door and locking hardware

    Optional Feature: Select from the dropdown above.

    LBM - Latchbolt monitor - An internally mounted signal switch that monitors the position of the latchbolt.

    Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

    Installation: For details on how to install the HES 5000 electric strike, see our Installation Instructions, or view the video clip above.

    Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

    Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    • 150 Strike latch guard
    • HESCUT-MTK Metal template kit
    • 2001M Plug-in bridge rectifier
    • 2004M ElectroLynx® adapter
    • 2005M3 SMART Pac® III
    • 2006M Plug-in buzzer
    • 5104-1/2: 1/2" stackable lip extension
    • 5104-1: 1" stackable lip extension
    • 5104-1-1/4: 1-1/4" stackable lip extension

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES 4500C Complete Pac Electric Strike, Faceplates Included, For all Locksets up to 3/4" Latchbolt Throw.

      • SKU
        HS5000-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      5000
    • Optional Features
      Not Required, Latchbolt Monitor

    ANSI/BHMA A156.31, Grade 1

    UL 1034 burglary-resistant listed and suitable for outdoor use

    UL 294 (6th Edition) listed

    RoHS compliant
