HES-Folger Adam 742-75 Electric Strike, For Major Mortise and Cylindrical Locksets up to a 3/4" Latchbolt Throw

HES-Folger Adam 742-75 Electric Strike, For Major Mortise and Cylindrical Locksets up to a 3/4" Latchbolt Throw
HES

The HES-Folger Adam 742-75 fire-rated electric strike works with all brands of major mortise and cylindrical locksets up to a 3/4" latchbolt throw in hollow metal frame applications. This strike features an industrial-grade design for extreme, heavy-duty, and high abuse applications. It is the one electric strike to choose when uncertain which lockset one may encounter. Available in a choice of options; select from the dropdowns below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HS742-75-12D-630
    • Market price:$1,016.00
      • save 40%
    • Starting price: Price: $609.60 per item


    Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES-Folger Adam 742-75 electric strike works with all brands of major mortise and cylindrical locksets up to a 3/4" latchbolt throw in hollow metal frame applications.

    Parts Included:

    • Electric strike body & faceplate
    • #12-24 x 1/2" Faceplate mounting screws
    • #8-32 Body mounting screws
    • #12 x 2 1/2” Wood faceplate mounting screws
    • Plug-in connector
    • Deadlatch Tabs
    • #6-32 x 5/16” Deadlatch Tabs Screws
    • Keeper Shim
    • #6-32 x 3/16” Keeper Shim Screws

    Available Finish: Available in a choice of finishes, choose from the dropdown above.

    Material: Constructed entirely of stainless steel for strength and corrosion resistance.

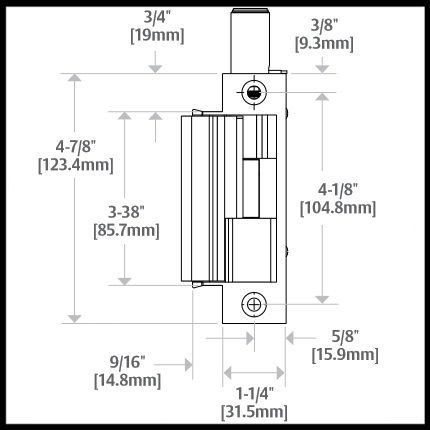

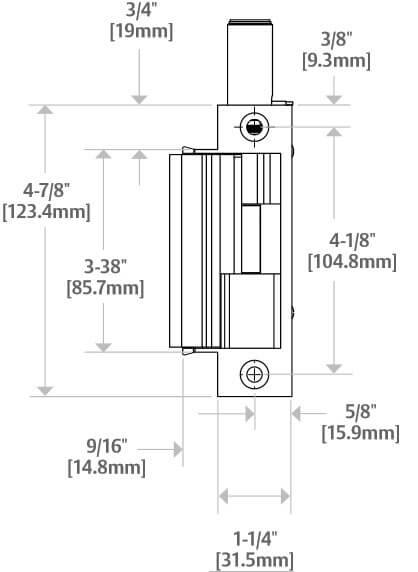

    Strike Body Depth: 1-15/16" (49 mm)

    Keeper Depth: 3/4" (19 mm)

    Height: 4-7/8" (123.8 mm)

    Distance between Mounting Holes: 4-1/8" (104.8 mm)

    Strength:

    • Static - 1,500 lbs.
    • Dynamic - 70 ft-lbs.

    Handing: Non-handed

    Frame Application: For single and double hollow metal doors.

    Operating Mode: Select from the dropdown above.

    • Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
    • Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

    Please note: Operation in fail safe mode removes the fire-rating of the electric strike.

    Electrical (DC Continuous Duty):

    • 290 mA at 12 VDC/150 mA at 24 VDC
    • PoE friendly

    Features:

    • Tamper-resistant, heavy duty construction
    • Fire rated - Rated by numerous safety, quality and fire safety standards; falls within the guidelines for retrofit into fire-rated frames.
    • Endurance 1 million cycles
    • Horizontally adjustable keeper - allows for door and frame misalignment
    • Deadlatch tabs included
    • Plug-in connector
    • Full keeper shim

    Optional Feature: Latchbolt and locking cam monitor feature available, choose from the dropdown above. Switch is actuated by the main device (such as a circuit breaker) for signaling, interlocking, or other purposes.

    Please Note: When using the latchbolt and locking cam monitor feature with a 1/2" (12.7 mm) or 5/8" (15.9 mm) keeper latchbolt, detection may be dependent on the door gap.

    Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

    Installation: For details on how to install the HES-Folger Adam 742-75 electric strike, see our Installation Instructions.

    HES Folger Adam 742-75 is designed to work with a variety of mortise locks without deadbolts, including the Schlage L9000 and Yale 8800 without relocating the strike prep in the frame.

    Please note: The HES-Folger Adam 742-75 will require relocation of the center line when used with moritse locks. Please contact us or call our office at 845-388-1300 regarding use with the Best 40 series.

    Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

    Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    • 150 Strike latch guard
    • 152 Universal mounting tabs
    • 2001-1 Wire-in bridge rectifier
    • 2001M Plug-in bridge rectifier
    • 2004M ElectroLynx® adapter
    • 2005M3 SMART Pac® III
    • 2006M Plug-in buzzer

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES-Folger Adam 712-75 Electric Strike, Fire-Rated, For Hollow Metal Frame Applications with a 1/2" to 3/4" Latchbolt Throw.

      • SKU
        HS742-75-12D-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      745-75
    • Voltage
      12 Volt, 24 Volt
    • Operating Mode
      Fail Secure (Standard), Fail Safe
    • Optional Features
      Not Required, Latchbolt and Locking Cam Monitor
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Satin

    UL 10C fire rated, 3-hour single door (fail secure only)

    UL 10C fire rated, 1 1/2-hour double door (fail secure only)

    CAN4-S104 (ULC-S104) fire door conformant

    UL 1034, burglary-resistant listed

    UL 294 listed

    ANSI/BHMA A156.31, Grade 1

    NFPA-252 fire door conformant

    ASTM-E152 fire door conformant

    HES 7000 Certification Symbol
