Ives 112HD Full Mortised, Concealed Continuous Hinge, Narrow Frame Leaf, Narrow Door Leaf

Ives 112HD Full Mortised, Concealed Continuous Hinge, Narrow Frame Leaf, Narrow Door Leaf
Ives

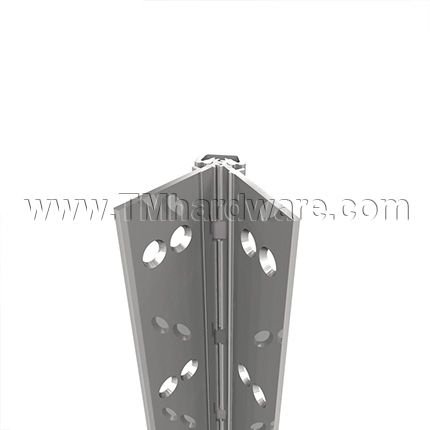

Ives 112HD is a Full Mortised, Concealed Continuous Hinge with a narrow frame leaf and a narrow door leaf for 1 3/4" doors. It is flush mounted and features a  transmission gear design with bearings that are evenly spaced every 3" on center. This hinge is constructed for doors that are maximum 48" wide and up to 600 pounds. Available in various sizes and finishes; choose from the dropdowns below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VS112HD-628-83
    • Market price:$284.66
      • save 30%
    • Starting price: Price: $199.26 per item

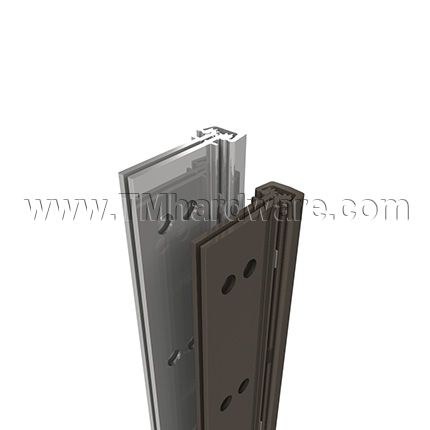

    Continuous Hinges are designed to last the life of the building. The unique design distributes the weight of the door along the entire length of the frame. This Aluminum Geared continuous hinge utilizes a single gear section for the leaf and a separate gear section for the frame side of the door.

    Material: 6063-T6 Aluminum

    Available lengths: Choose from options above.

    Handing: Non handed

    Finishes: Choose from options above.

    Design:

    • Narrow-frame leaf, narrow door leaf.

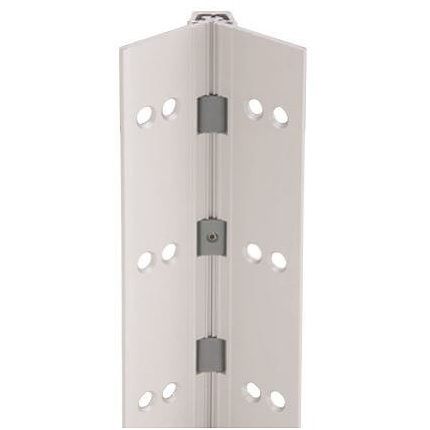

    • Spread bearing design - Features a transmission gear design with bearings that are evenly spaced every 3" on center. Amount of bearings varies by size:
      • 83" .......32 Bearings
      • 85" .......32 Bearings
      • 95" .......36 Bearings
      • 120" ......47 Bearings

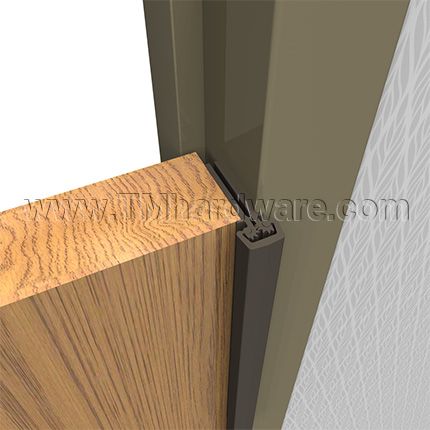

    • Flush mounted; No door inset.

    Hardware Included: 12-24 x 3/4" Steel self drilling / self tapping Phillips head screw.

    Door Type:

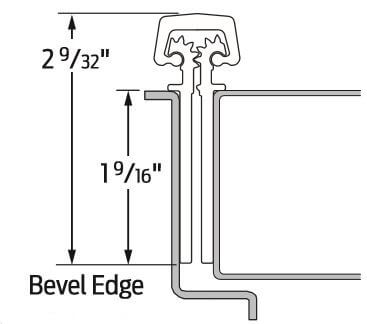

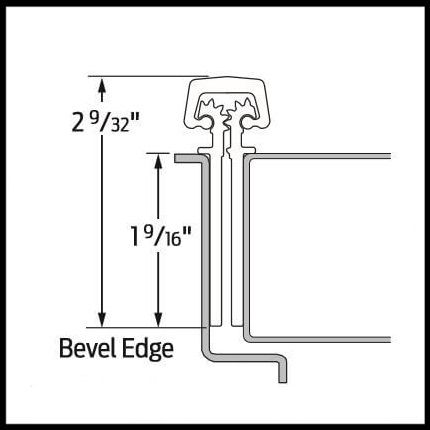

    • Narrow door leaf for 1 3/4" beveled or square edge door.
    • For doors with a maximum width of 48".
    • For doors weighing up to 450 pounds without reinforcing.
    • For doors weighing up to 600 pounds with reinforcing.

    Electrical Options: Additional electrification options including Electric power transfer and Electrical through wire panel, and optional mounting hardware may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    Compliance Details:

    • Meets ANSI 156.26 for 150lbs
    • UL10C certified

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our Ives 112XY Full Mortised Continuous Hinge, Narrow Frame Leaf, Narrow Door Leaf.

      • SKU
        VS112HD-628-83
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      112HD
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Black Anodized Aluminum (315)
