Ives 1-1/2" Offset Fire Rated Pivot Hinge Set with Top Header and Bottom Mortised Cement Case Mount Pivot

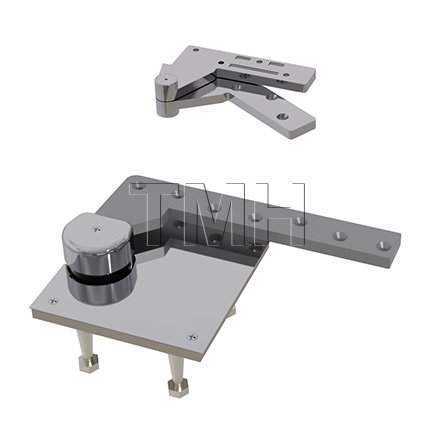

Ives 1-1/2" Offset Fire Rated Pivot Hinge Set in Polished Stainless Steel (US32) Finish
Ives

This Ives Pivot Hinge set reduces stress on the door by distributing the weight of the door throughout the door and structure. This Ives 7245F fire rated pivot set includes a top header mount and bottom mortised cement mount pivot. This pivot is made for doors up to 500 lbs. It is non handed and available in a variety of finishes.

See full product details and specs in tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      VS7245F-SET-629
    Call for price!
    845-388-1300

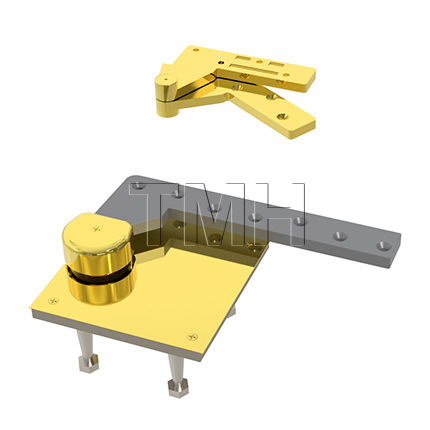

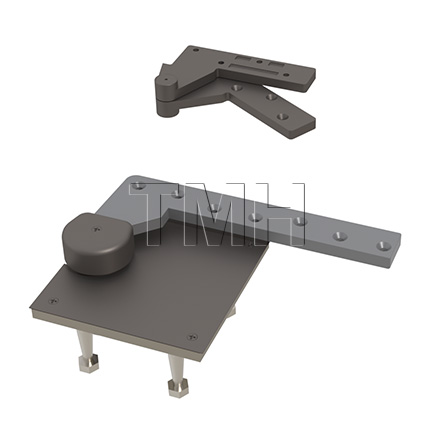

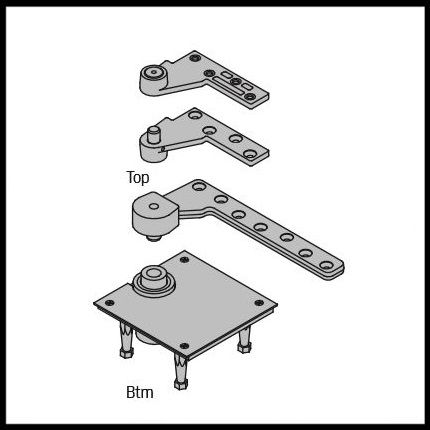

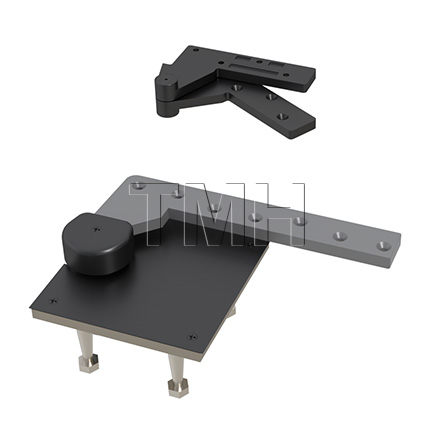

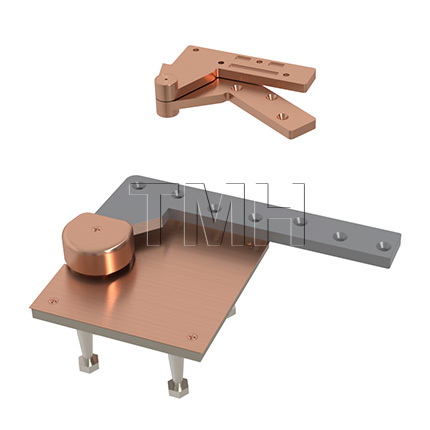

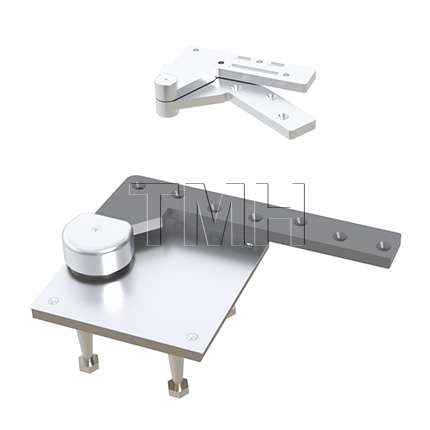

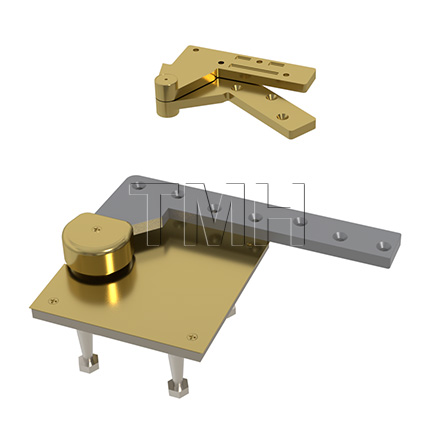

    This Ives 7245F 1-1/2" offset fire rated pivot consists of a top header mount and bottom mortised cement case mount pivot. It has a vertical adjustment range of 3/16" with positive locking that allows the installer to precisely install the door and balance the load.

    Material: 304 series stainless steel

    Available Finishes: Variety of finishes available - Choose from Dropdown above

    Handing: Non Handed

    Door Thickness: Minimum 1-3/4" with 1/8" bevel in 2"

    Feature: Vertical adjustment range of 3/16" with positive locking

    Additional Options: Intermediate Pivot - To use with 7245F Intermediate Pivot - Use one pivot for each 100 lbs. over the pivot set capacity weight. Can be purchased through our office.

    Compliance Details:

    • Meets ANSI/BHMA A156.4 C07121
    • UL listed for 3 hour fire doors

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Ives 7244F 1-1/2" Offset Fire Rated with Top Header Mount and Bottom Base Mount Pivot.

      • SKU
        VS7245F-SET-629
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      7245F
    • Finishes
      • Finish
        Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Matt Black, Polished Brass (US3), Satin Bronze (US10), Aged Bronze (US11E), Aluminum Painted (689), Dull Bronze Painted (691), Dark Bronze Painted (695), Brass Painted (SP4)

    Click to Print - Ives 7245F Template
