Salice Air Specialty Concealed Hinge, 105° Swing Integrated, Soft Close or Push to Open - PAIR OF 2
Despites its compactness and small size, Air delivers full functionality to furniture manufacturers. It is inserted into the top and bottom of the cabinet and the door and is practically invisible. Its small size means that the applications for Air are numerous: kitchens, bathrooms, living- and bedroom furniture or display cabinets. See below for specifications.
PRICED PER PAIR OF 2 HINGES
See tabs below for additional information
Despites its compactness and small size, Air delivers full functionality to furniture manufacturers. It is inserted into the top and bottom of the cabinet and the door and is practically invisible. Its small size means that the applications for Air are numerous: kitchens, bathrooms, living- and bedroom furniture or display cabinets.
Click here to view the Salice Air Catalog Page.
Available Models:
- Soft Close Hinge - Nickel Finish: CEL6XE9XXV, Titanium Finish: CEL6XE6XXV
- Push to Open Hinge - Nickel Finish: CELPX99XXV, Titanium Finish: CELPX66XXV
Features:

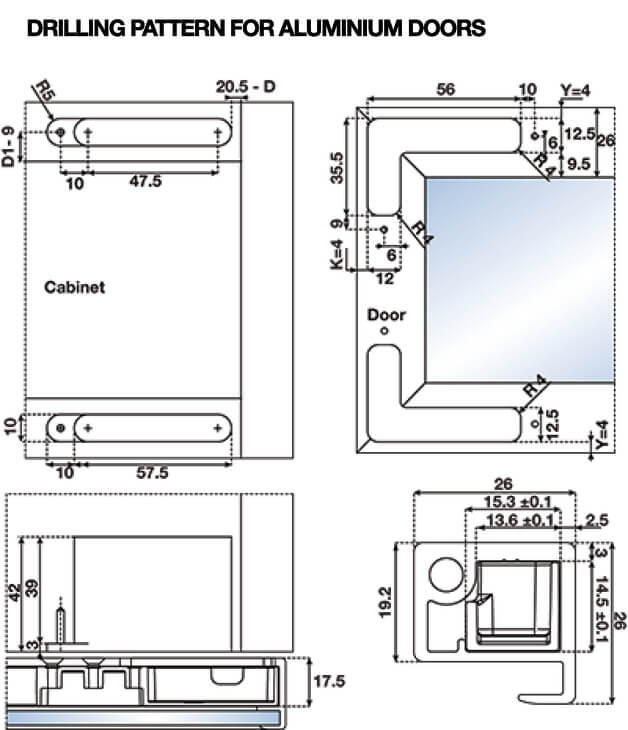

- For min. 18 mm (3/4") thick wood doors and for aluminum-framed doors.
- Max. door weight 20 Kg (44 lbs).
- Max. dimensions of the door : height 2100 mm (84"), width 610 mm (24").
- 16.5 mm deep metal cup
- L = 2.5 mm
- 105° opening..

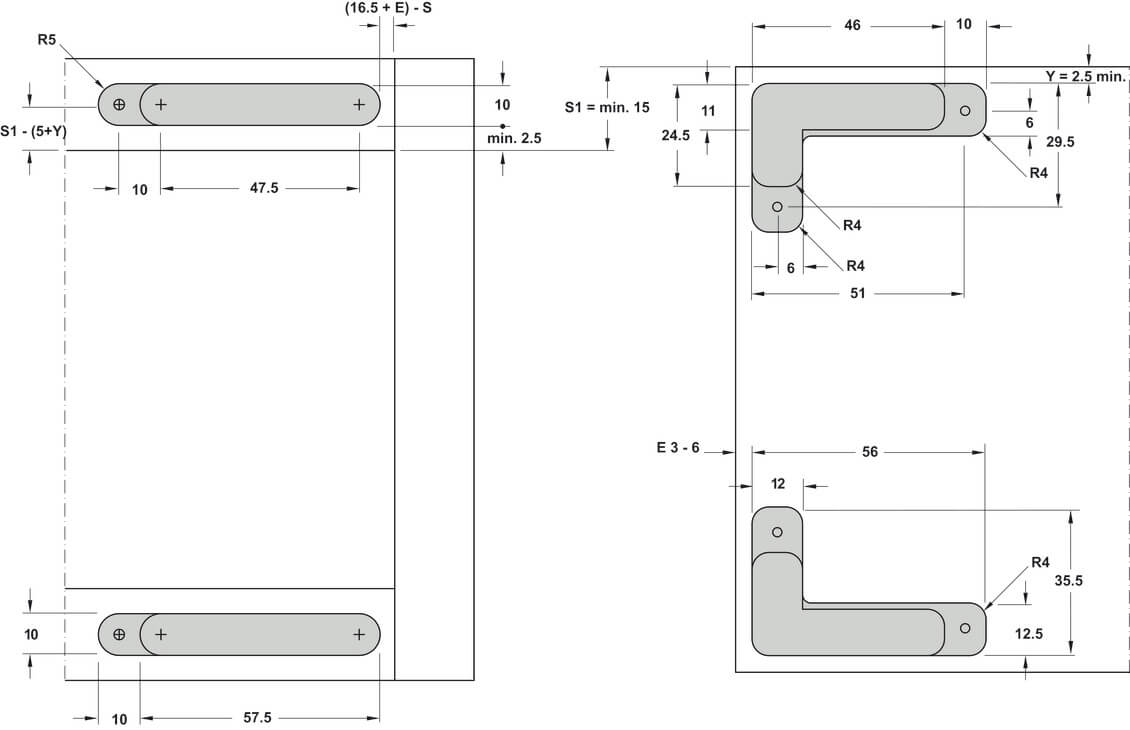

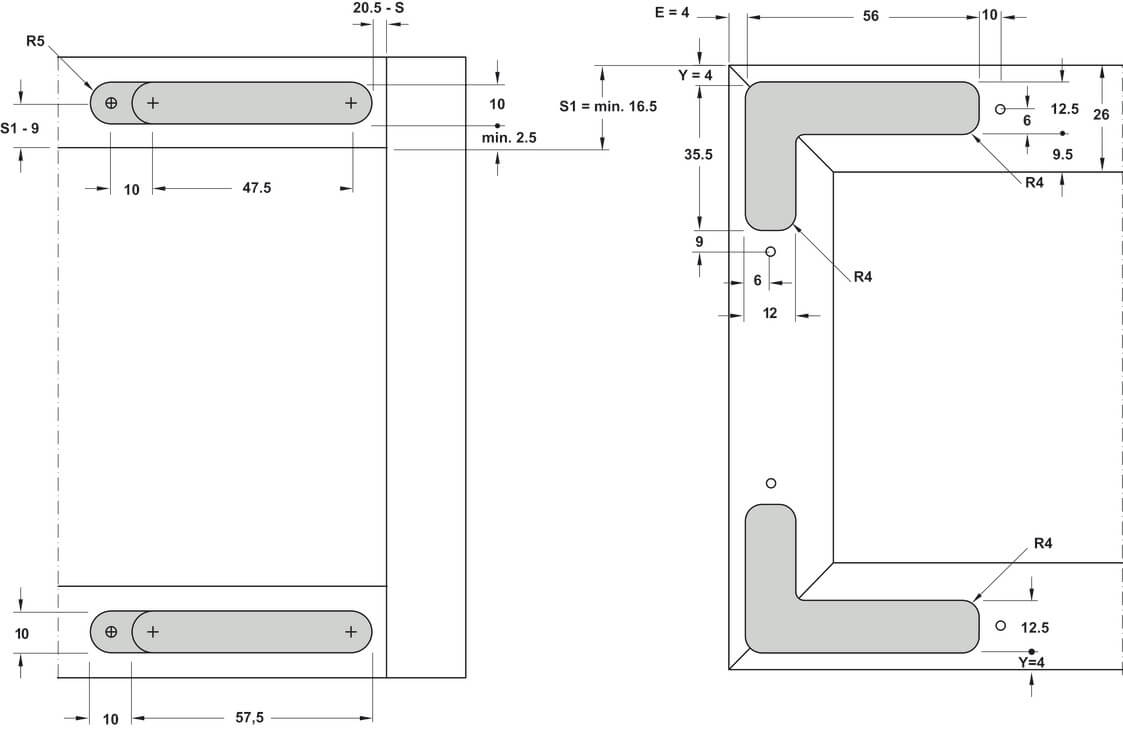

- Possible drilling distance on the door (K): from 3 mm (1/8") to 6 mm (1/4") for wood doors.
- Screws provided.
