Schlage Tubular Door Handle, ND Series, Non-Keyed Function - Custom Options

Schlage Tubular Door Handle, ND Series, Non-Keyed Function, Single Dummy Trim, Satin Chrome Plated Finish
Schlage

Schlage Tubular Door Handle is known for its performance that goes above and above grade 1. After undergoing rigorous testing, the locks have been shown to withstand 3,100 in-lb. excessive lever torque—more than two and a half times the minimum required by Grade 1 standards. All new construction and retrofit applications where grade 1 strength and security are sought will benefit greatly from the ND Series, which is not only strong but also long-lasting, with almost no droop or wobble even after 16 million cycles.

Available in a variety of finishes, and functions. Choose from the dropdown menu.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SC-ND170-TLR-626
    • Market price:$175.00
      • save 25%
    • Starting price: Price: $131.25 per item


    Schlage Tubular Door Handle is known for its performance that goes above and above grade 1. After undergoing rigorous testing, the locks have been shown to withstand 3,100 in-lb. excessive lever torque—more than two and a half times the minimum required by Grade 1 standards. All new construction and retrofit applications where grade 1 strength and security are sought will benefit greatly from the ND Series, which is not only strong but also long-lasting, with almost no droop or wobble even after 16 million cycles.

    Available in a variety of finishes, and functions. Choose from the dropdown menu.

    Benefits:

    • Strong: redesigned to make it the strongest cylindrical lock Schlage has ever built.
    • Secure: standard Everest 29™ cylinder with S123 keyway is provided standard which prohibits unauthorized key duplication at local stores.
    • Smart: innovated to be more efficient, flexible, and easier to install and use.

    Features:

    • Functions:  See FUNCTION tab for details
    • Finish: selection of finishes available, select above
    • Keyway:
      • Everest 29 S123 - 6-pin keyway standard with two nickel silver keys per lock. For commercial space
        • Optional Keyway upgrade: Everest 29™ T restricted, Everest 29™ R restricted ( available upon request, extended lead times may apply.)
    • Door thickness: 1 3/8"  (35 mm) to 2" (51 mm)
    • Backset: 2-3/4" (70 mm) standard; 2-3/8", 3-3/4", and 5" optional
    • Latchbolt: 1/2" (13 mm) throw oil impregnated stainless steel standard; 3/4" throw, 2-3/4" backset anti-friction bolt for pair doors optional
    • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; T-strike with box and T-strike with deep box for fire door latch optional
    • Strike lip length: 1-3⁄16" (30 mm) standard; extended lip strikes - 1-3⁄8" and 1-1/2" optional

    Cylinders:

    • Conventional core is provided with a cylinder.
    • Cylinder Finish: Cylinders are supplied in US4 Satin Brass, US19 Flat Black, US26D Satin Chrome, and US10A Satin Bronze Finish only.

    Certifications:

    • ANSI A156.2-2017 Series 4000, Grade 1 - exceeds strength and operational requirements.
    • California Fire Code - Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk levers comply.
    • ADA compliant  - All levers designed to meet the Americans With Disabilities Act
    • UL / cUL Listed
    • FF-H-106C
    • Florida Building Commission (ASTM E330, E1886, E1996)
    • Miami Dade (TAS 201, 202, 203) requirements for hurricane
    • TDI (ASTM E330, E1886, E1996)

    See SPECIFICATION tab for additional information.

    PRICED PER UNIT

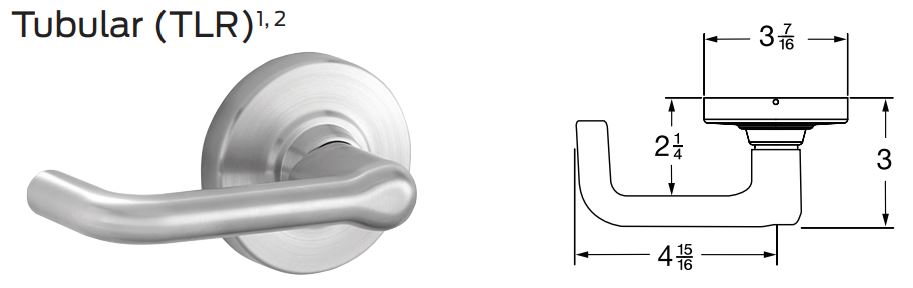

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See LEVER SPECS TAB for exact measurements.

    This product has a 3-year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click here to view our Schlage S200 Series Door Handle, Grade 2 - Custom Options

      • SKU
        SC-ND170-TLR-626
    • QuickShip
      No
    • Manufacturer
      Schlage
    • About this Product
      • Lever Material
        Pressure Cast Zinc
      • Rose Material
        Wrought Brass, Bronze, Zinc
      • Collection / Series
        ND Series
      • Lock Type
        Lever
      • Lever / Knob Style
        Tubular
      • Rosette Style
        Rhodes
    • Specifications
      • Cylinder Type
        6 Pin Cylinder
      • Backset
        Adjustable 2-3/8" or 2-3/4"
      • Latch Throw
        1/2" Latch
      • Strike
        ANSI Curved Lip: 1 1 ⁄4" x 4 7 ⁄8" x 1 3⁄16"
      • Faceplate
        Square Corners
      • Keyway
        Schlage Everest 29 with S123
      • Keying Type
        Conventional Core, Full size interchangeable core, Small format interchangeable core
      • Bore Hole
        2-1/8"
      • Door Thickness
        1-3/8" - 2" Thick Door
      • Function
        Passage Latch, Exit Lock - Lever x Lever, Exit lock, electrically locked (fail safe), Exit lock, electrically unlocked (fail secure), Exit lock - blank plate x lever, Patio Lock, Bath/Bedroom Privacy Lock, Hospital Privacy Lock, Time Out Lock, Single Dummy Trim, Double Dummy Trim
      • Mount Type
        Tubular
      • Grade
        Grade 1
      • Cross Bore
        2-1/8" Cross Bore
      • Locking Mechanism
        Push Button, Thumbturn, Key
    • Finishes
      • Finish
        Satin Chrome Plated (626), Bright Brass (605), Satin Brass (606), Satin Bronze (612), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Aged Bronze (643e), Oil Rubbed Bronze (613), Satin Chrome, Anti-Microbial (626AM)
    • Compliance Details
      • Compliance Details
        UL/cUL - listed for 3 hour fire doors, ADA Compliant
      • ANSI Designation
        ANSI/BHMA A156.2-2011, Series 4000, Grade 1
      • Warranty
        3 Year Limited Warranty
