Yale 4605 Storeroom Knob, Carolina Knob, Grade 2 - Custom Options
Yale 4605 Cylindrical Storeroom Knob is the ideal choice for a wide variety of commercial storeroom and closet applications. The outside knob is always rigid and inside is always active, see below. The 4605 is certified to ANSI/BHMA Grade 2 standards and is UL-Fire Rated.
Selection of finishes and keyways available.
PRICED PER UNIT
Yale 4605 Cylindrical Storeroom Knobs are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economic price.Â
See Yale 4600 Series Grade 2 Locks Full Catalog.

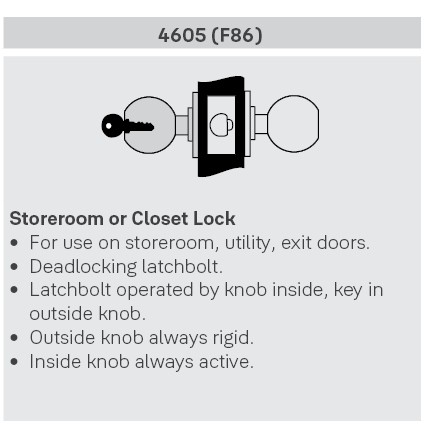

4605 Knob Function - Passage and Closet:
- Â For use on storeroom, utility, exit doors.
- Deadlocking latchbolt.
- Latchbolt operated by knob inside, key in outside knob.
- Outside knob is always rigid.
- Inside knob is always active.
Benefits:
- Versatile: Field reversible and other product options available to suit all applications.
- Economical: Priced affordably for projects of all budgets
- Secure: Quality security from a trusted brand for over 170 years.
- Strong and Reliable: ANSI / BHMA Grade 2 certified for long life
Features:
- Handing: Field reversible for ease of ordering and installation
- Finish: selection of finishes available, select above
- ADA Compliance: for ease of accessibility
Cylinders:
- Conventional core is provided with a cylinder (select keyways from above).

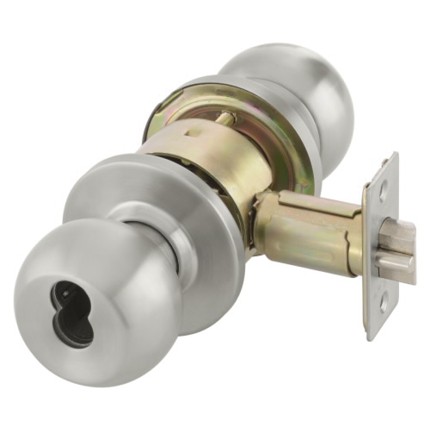

- SFIC core is provided without a core, to be purchased separately.
- Cylinder Finish: Cylinders are supplied in US3 Polished Brass and US26D Satin Chrome only.
See SPECIFICATIONÂ tab for additional information.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.Â
This product has a 3 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.Â
Available also with Lever Trim, see our Yale 4605LN Storeroom Lock.
-
QuickShipYes
-
ManufacturerAccentra
-
MPNCA-4605
- About this Product
-
Lever MaterialCast Zinc
-
Rose MaterialWrought Brass
-
Mechanism MaterialHeavy-gauge steel, zinc plated, dichromated
-
Collection / SeriesYale 4600 Series
-
Lock TypeKnob
-

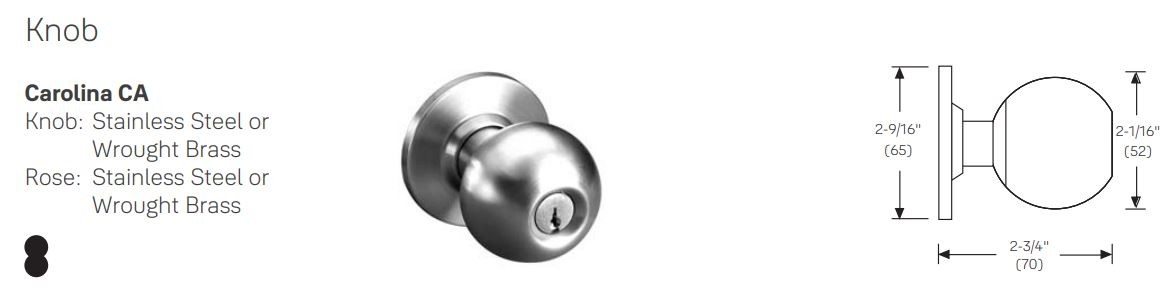

Lever / Knob StyleCarolina Knob
-
- Specifications
-
Cylinder Type6 Pin Cylinder
-
Backset2-3/4" Backset, 2-3/8" Backset
-
Latch Throw1/2" Latch
-
Strike2-3/4" x 1-1/8" x 1-1/4" Lip
-
FaceplateSquare Corners
-
KeywayYale PARA Keyway, Schlage "C" Type, SFIC IC Prep (Less Cylinder)
-
Keying TypeConventional Core, Interchangeable Core
-
Door Thickness1-3/8" - 1-3/4" Thick, Adjustable
-
Keys Provided2 Nickel, Silver Keys Provided
-
HandingReversible
-
FunctionStoreroom
-
Mount TypeCylindrical
-
GradeGrade 2
-
Cross Bore2-1/8" Cross Bore
-
- Finishes
-
FinishSatin Stainless Steel (US32D), Polished Stainless Steel (US32), Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE)
-
- Compliance Details
-
Compliance DetailsADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
-
ANSI DesignationA156.115 Door Prep
-
Warranty3 Year Warranty
-
