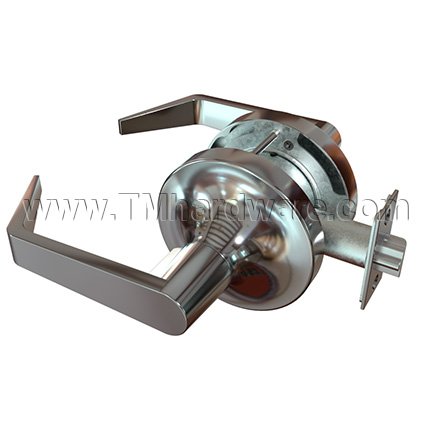

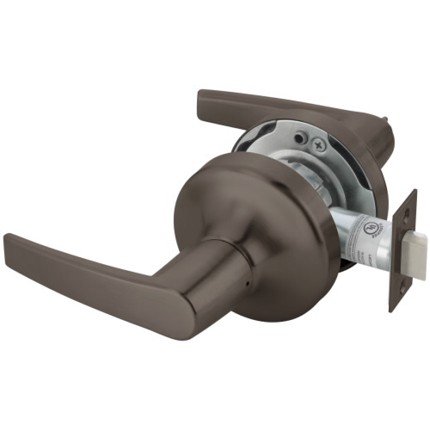

Yale 4701LN Passage or Closet Lever, Grade 1 - Custom Options

Yale 4701LN Commercial Locks Satin Chrome (US26D) Finished

Many options in stock, see our Yale AU4701LN with Augusta Lever, Yale MO4701LN with Monroe Lever or Yale PB4701LN Pacific Beach Lever QuickShip options.

Yale 4701LN Cylindrical Passage and Closet Lock is the ideal choice for a wide variety of commercial applications that require latching, without locking. The 4701LN is is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.

Available in selection of trims and finishes.

PRICED PER UNIT

See tabs below for additional information

Quantity

Add to compare

Click here to view the full Yale 4700 Grade 1 Lever Lockset Catalog.

4601LN Function - Passage and Closet:

For doors that do not require locking.
Either lever operates latchbolt at all times.

Features:

Handing: Field reversible for ease of ordering and installation
Trims: selection of trims available, select from above
Finish: selection of finishes available, select above
ADA Compliance: for ease of accessibility

See SPECIFICATION tab for additional information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Available with Grade 2 Certification, see our Yale 4601LN Grade 2 Passage Lever

- Weight
  7 lbs
- SKU
  YL-AU-4701LN-626
QuickShip
No
Manufacturer
Accentra
MPN
AU-4701LN; MO-4701LN; PB-4701LN;
About this Product
- Lever Material
  Cast Zinc
- Rose Material
  Wrought Brass
- Mechanism Material
  Heavy-gauge steel, die-cast, zinc-plated, chromated
- Collection / Series
  Yale 4700 Series
- Lock Type
  Lever
- Lever / Knob Style
  Augusta Lever (AU), Monroe Lever (MO), Pacific Beach Lever (PB)
Specifications
- Backset
  2-3/4" Backset
- Latch Throw
  1/2" Latch
- Strike
  ANSI 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
- Faceplate
  Square Corners
- Door Thickness
  1-3/4" - 2" Thick Door
- Handing
  Reversible
- Function
  Passage
- Mount Type
  Cylindrical
- Grade
  Grade 1
- Cross Bore
  2-1/8" Cross Bore
Finishes
- Finish
  Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D), Polished Chrome (US26), Black Suede Powder Coat, White Suede Powder Coat, Satin Chrome Microshield®
Compliance Details
- Compliance Details
  ADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
- ANSI Designation
  A156.115 Door Prep, A156.2 Grade 1
- Warranty
  5 Year Limited Warranty

Yale 4700 Template, Hollow Metal Doors 37.8 kB
Yale 4700 Template, Wooden Doors 433.9 kB

Click to Print Yale 4700 Series Product Templates

Yale 4700 Functions, Explained 166.4 kB
Yale 4700 Trim Designs 144.5 kB

Specs of Trims for Yale 4700 Series Grade 1 Lever

Yale 4700LN Series Installation Guide 880.8 kB

Click to Print Yale 4700 Series Installation Guide
