Accentra 4730LN Utility, Asylum or Institutional Lever, Grade 1 - Custom Options

Accentra 4730LN Commercial Locks Black Suede Powder Coat Finished
Accentra

Accentra (Formerly Yale) 4730LN Cylindrical Utility, Asylum or Institutional Locks is the ideal choice for a wide variety of commercial applications that require locking with keyway. The 4730LN is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.

Available in selection of trims and finishes.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      7 lbs
    • SKU
      YL-AU-4730LN-1803-47-BSP
    • Market price:$765.77
      • save 35%
    • Starting price: Price: $497.75 per item


    Accentra 4730LN Cylindrical Utility, Asylum or Institutional Locks is the ideal choice for a wide variety of commercial applications that require locking with keyway. The 4730LN is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.

    Click here to view the full Accentra 4700 Grade 1 Lever Lockset Catalog.

    4730LN Function - Utility, Asylum or Institutional Funtion:

    • Deadlocking latchbolt.
    • Latchbolt is operated by key in lever from either side.
    • Both levers always locked.

    Features:

    • Handing: Field reversible for ease of ordering and installation
    • Trims: selection of trims available, select from above
    • Finish: selection of finishes available, select above
    • ADA Compliance: for ease of accessibility

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click here for Accentra 4729LN Communicating Classroom Lever, Grade 1 - Custom Options

      • Weight
        7 lbs
      • SKU
        YL-AU-4730LN-1803-47-BSP
    • QuickShip
      No
    • Manufacturer
      Accentra
    • MPN
      AU-4730LN; MO-4730LN; PB-4730LN;
    • About this Product
      • Lever Material
        Cast Zinc
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, die-cast, zinc-plated, chromated
      • Collection / Series
        Accentra 4700 Series
      • Lock Type
        Lever
      • Lever / Knob Style

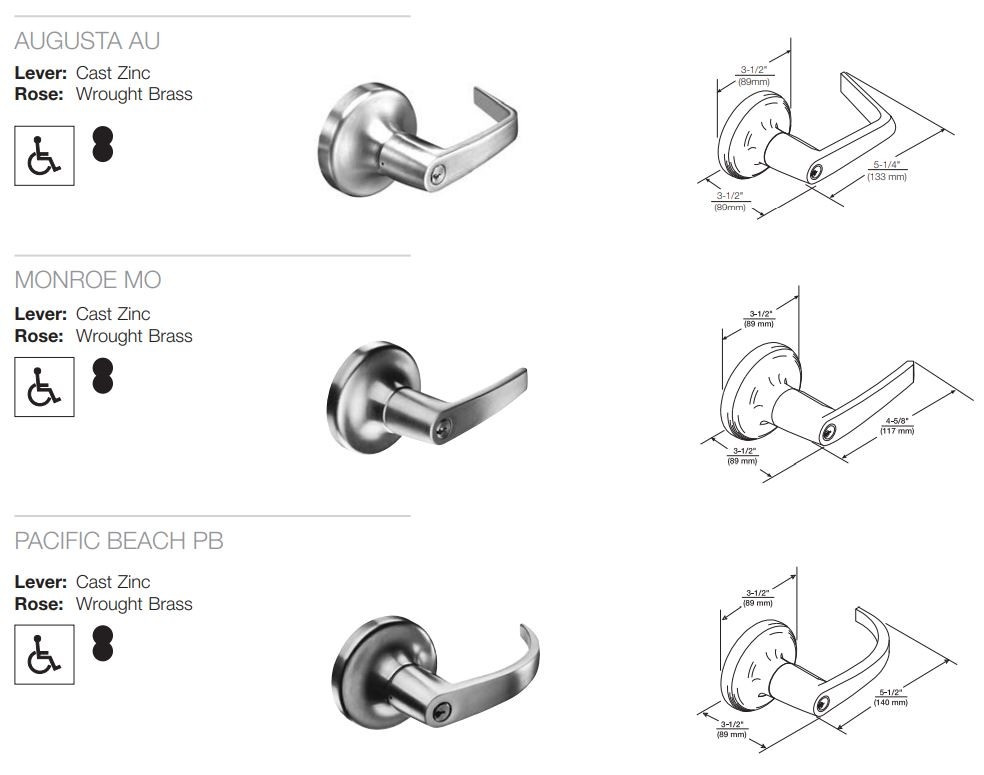

        Augusta Lever (AU), Monroe Lever (MO), Pacific Beach Lever (PB)
    • Specifications
      • Cylinder Type
        6 Pin Cylinder
      • Backset
        2-3/4" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        ASA Strike, 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
      • Faceplate
        Square Corners
      • Keyway
        Schlage "C" Type
      • Keying Type
        Keyed Random
      • Door Thickness
        1-3/4" - 2" Thick Door
      • Keys Provided
        2 Nickel, Silver Keys Provided
      • Handing
        Reversible
      • Function
        Asylum
      • Mount Type
        Cylindrical
      • Grade
        Grade 1
      • Cross Bore
        1-5/8" Cross Bore
    • Finishes
      • Finish
        Black Suede Powder Coat, Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), White Suede Powder Coat
    • Compliance Details
      • Compliance Details
        ADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
      • ANSI Designation
        A156.2 Grade 1, A156.115 Door Prep
      • Warranty
        5 Year Limited Warranty

    Click to Print Yale 4700 Series Product Templates

    Click to Print Yale 4700 Series Installation Guide
