Markar FS321 Stainless Steel Hinge, Full Surface with 3/4" Offset

Markar FS321 Stainless Steel Hinge, Full Surface with 3/4" Offset
Markar

Markar FS321 is a Heavy-Duty Full Surface Leaf Continuous Hinge which is attached to surfaces of the door and frame with 3/4" offset.  This hinge is designed for door weighing up to 600 lbs. and a maximum width of 4'0". Hinge is Satin Stainless Steel and available in standard stock sizes, see below for details and pricing.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRS321_79_RH
    • Market price:$1,267.00
      • save 25%
    • Starting price: Price: $950.25 per item

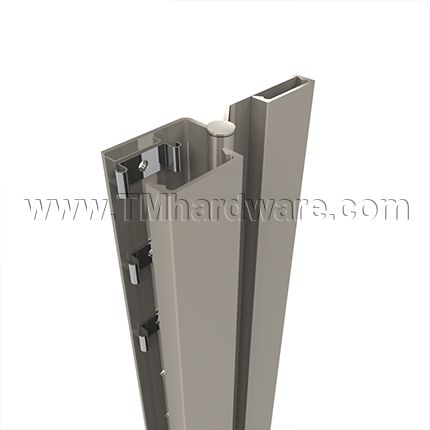

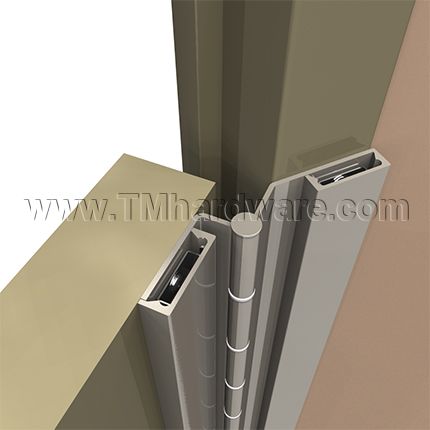

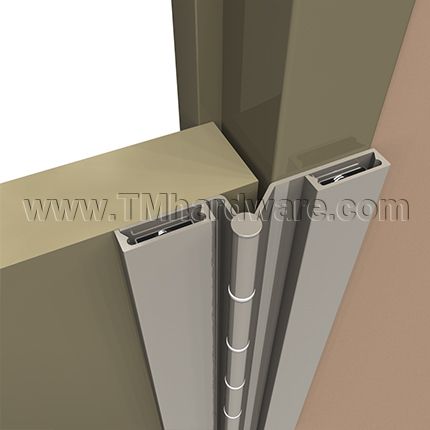

    Marker FS321 is a Pin and Barrel Type Continuous Stainless Steel Full Surface Leaf Hinge with 3/4" Offset.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0", 10'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 600 lbs. 4'0" maximum door width. Extra heavy duty for high traffic, high abuse door applications, including correctional facilities, high security locations and extra heavy doors. Works in conjunction with 3/4" offset door closers. Where top or intermediate pivots have worn and the floor closer will remain, this hinge is the solution to extending the life of the opening.

    • Design: Constructed from 14 gauge 304 stainless steel (US32D) with medical bearings and end pin caps. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Developed to work in conjunction with existing 3/4" offset floor closers. Fasteners concealed by extruded aluminum cover.

    • Finish: US32D Satin Stainless Steel (630).  Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: 1/4-14 x 3/4" Security TORX TEK Screws.

    • Handing: Specify Handing when ordering hinge. Select handing from options above. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

    • Certifications: Fire-Rating: 3 hours on hollow metal doors. 90 minutes- hollow metal and composite. 20 minutes- wood door.
                            Classified in accordance with UL10C for positive pressure.
                            Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203-94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13.
                            ANSI/BHMA Standard A156.26 Grade 1.
                            Note: Fire label for doors and frames should be placed on the header and top rail of fire rated doors and frames.

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar HG322 Full Surface Continuous Hinge with 3/4" offset.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRS321_79_RH
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MFS321
    • Handing
      Right Hand, Left Hand

    Printable Documents:

     Click to print Markar FS321 Continuous Hinge Product Specs.

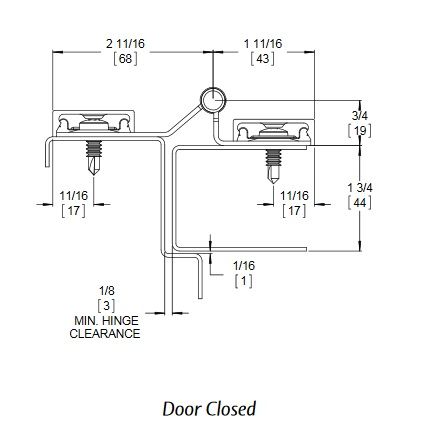

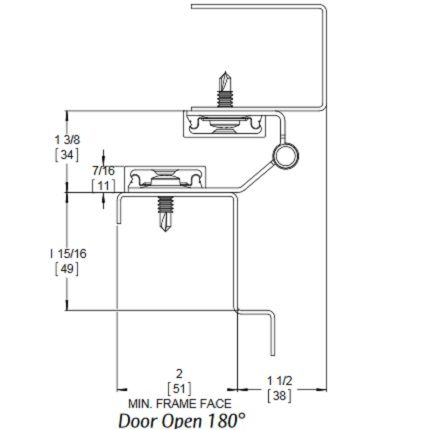

    Product Specs:
    Markar FS321 Continuous Hinge Product SpecsMarkar FS321 Continuous Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications



    Click here to view Installation Instructions for FS321 Pin and Barrel Hinge.

    General Information:

    All holes in the hinge must be drilled correctly and fasteners properly installed. Failure to use the fasteners supplied by our manufacturer will void the UL or WHI fire rated listing. This model hinge is designed for use with existing floor closers.

    Do not install Snap-On cover until installation is 100% complete and all aspects of the assembly are correctly fastened and properly fitted.

    The Universal Screw Pack contains self-drilling Tek screws. These screws are also recommended for grout-filled frames. Perform each step of these instructions.

    Installation:

    1. Place hinge on frame. Allow 1/8" between top of hinge and underside of header. Note that the hinge may require cutting to fit between the top of the door and the floor closer spindle. Note that at least 1 7/8" of frame face is required for mounting this hinge. The hinge's pivot point must line up with the pivot point of the existing floor closer.

    2. Mark the position of the top and bottom holes with a center punch, then drill and fasten. The use of a center punch can help center the hole so that the fasteners will enter straight.

    3. After the top and bottom screws are installed, drill and fasten the balance of the holes. Install at least five cover clips by passing a screw through the clip, hinge leaf and frame. We recommend that clips be positioned in the top, center and bottom holes, with the remaining clips spaced equally along the length of the hinge.

    4. Fold the door leaf back over the frame leaf and place the door in the door frame. Place shims under the door to provide 1/8" clearance between the header and the top of the door. Add shims at both the hinge and latch side of the door so the 1/8" clearance will be maintained equally on the lock side of the door.

    5. With the door held firmly in place, return the door leaf to the face of the door and repeat the drilling procedure described in steps 2 and 3. Molly Jacknuts and aluminum sleeve boldts are available through our office as an optional means of attaching the door. Steel sleeve bolts (available through our office) must be used on mineral core wood fire doors.

    6. Install the Snap-On covers by engaging the side of the cover next to the hinge pin first.

    7. Insert a large screwdriver between the hinge knuckle and the cover. Using the screwdriver as a lever, twist it and snap the opposite side of the cover onto the clip.

    8. Start at the top and work downward until the entire length of each cover is firmly engaged.

    With the covers firmly in place, secure them at both ends through the hinge and into the door or frame with #8 x 3/4" self-drilling flat head Tek screws.
