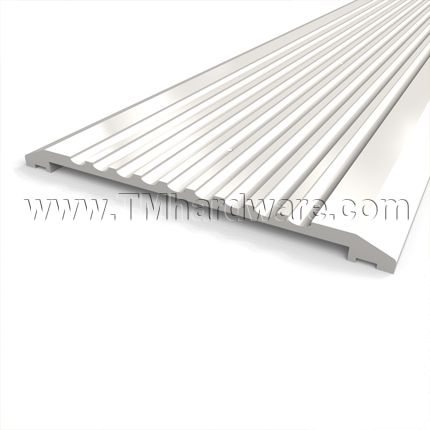

Zero #6575 Utility Threshold, 7.5" Aluminum, .5" Height
This Zero #6575 aluminum Utility Threshold is 7.5" wide and made of high quality .250" thick metal, sure to withstand heavy usage. It is used as a floor closure, with floor springs, in existing applications. Available with Epoxy Abrasives and Full Body Strength. Length is custom cut to size.
PRICED PER FOOT
Threshold is very heavy duty, and can be used for a floor closure with a floor spring in existing applications.

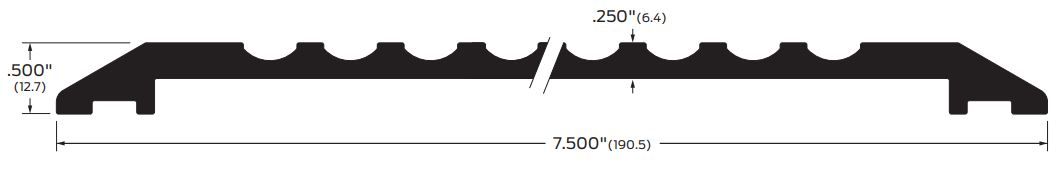

Width: 7.5" (7-1/2")
Height: .5" (1/2")
Thickness: .25" (1/4")
Length: Custom cut to size

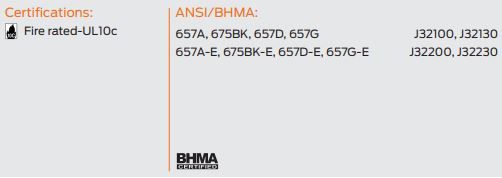

Compliance Details: Fire Rated
Installation: Installation screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: Drilling for threshold is not supplied unless specified and template is provided. Please contact us or call at 845-388-1300 to supply template.
Additional Options- Call for pricing:

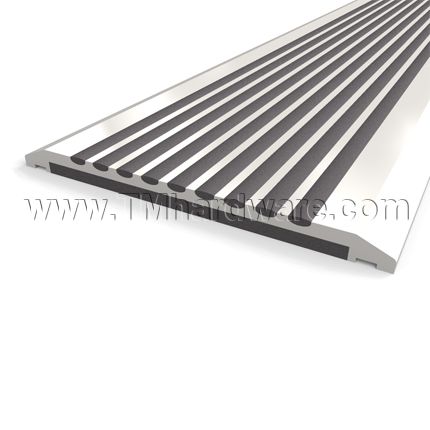

- Non-Stick Epoxy Abrasives: can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

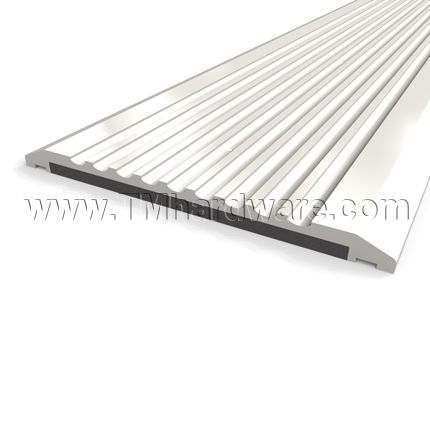

- Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
-
QuickShipNo
-
ManufacturerZero International
-
MPN6575
-
OptionsNone, Epoxy Abrasives, Full Body Strength, Both Epoxy and Full Body
- Dimensions
-
Overall Height.5" Height
-
Overall Width7.5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.25" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold, Cover Plate
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Flat Black (US19)
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
