Zero #3056FS-3557FS Aluminum Meeting Stile, Mortised .890" Wide, with Fire Stop

Zero #3056FS-3557FS Aluminum Meeting Stile, Mortised .890" Wide, with Fire Stop
Zero International

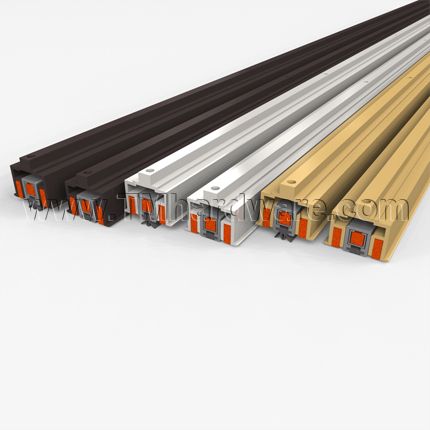

This Zero #3056FS-3557FS fully mortised, for double active doors specialty aluminum and silicone mortised meeting stile utilizes Intumet™ intumescent material which prevents the spreading of fire and effectively seals the gap between a pair of doors from the infiltration of fire, smoke, sound, light, drafts and insects. Available in various anodized aluminum finishes and is custom cut to size.

PRICED PER FOOT

How to order: This product can be ordered as a full set or as individual parts. Select which parts you would like to order from the 'Options' drop-down menu below.

See tabs below for additional information
    • SKU
      ZR3056FS-3557FS-AA
    • Market price:$94.72
      • save 5%
    • Starting price: Price: $89.98 per foot

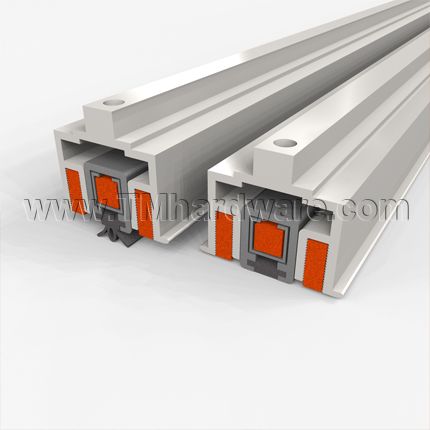

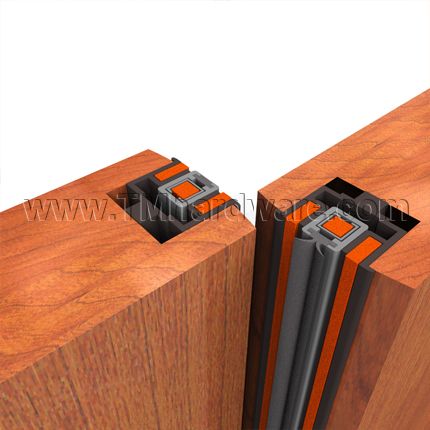

    This meeting stile has two corresponding aluminum and silicone astragals. The inserts are manufactured from high quality, self-extinguishing, solid silicone. One lip-shaped seal projects out and compresses against a complementary solid insert and serves as an astragal between double active doors. Minimum required clearance space is .250".

    This specialty meeting stile utilizes Intumet™ intumescent material which expands when heated to prevent the spreading of fire. An adjusting screw and stainless steel spring permits the seal to be adapted to effectively close clearance gaps of varying sizes resulting from natural warping or inevitable shifting of the doors. These distinctive features assure fire and smoke protection, prevent sound from leaking in or out of a room, provide a weather seal, ensure privacy, as well as minimize the passage of light between the doors.

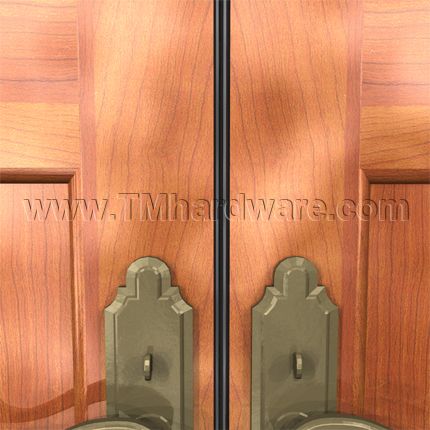

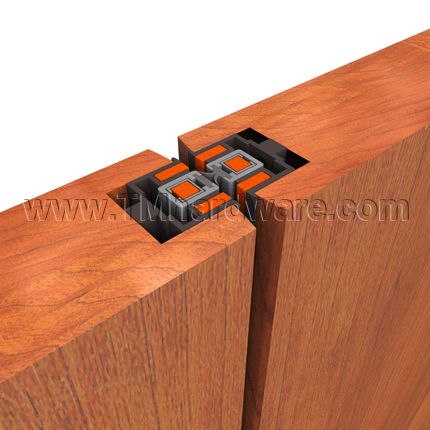

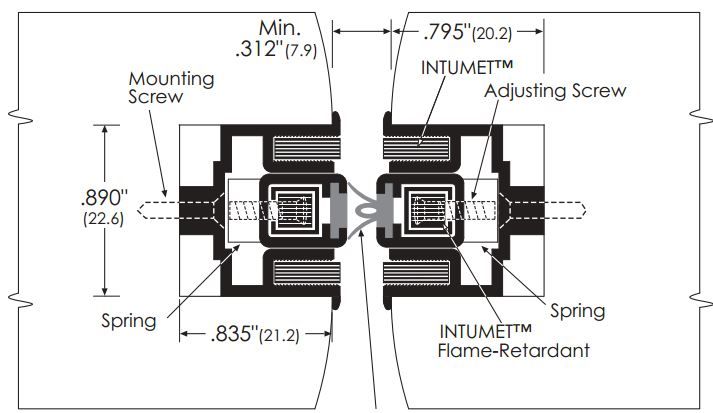

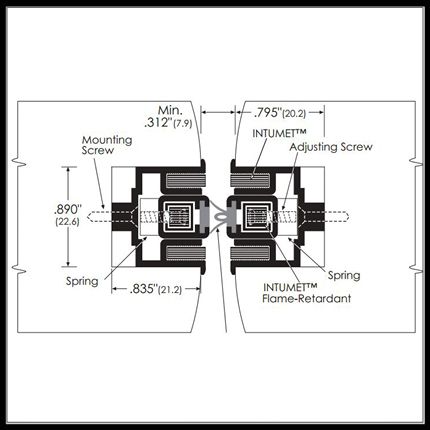

    A mortised application allows the door to maintain a clean, unobtrusive appearance, making it an optimal choice for high-end designer doors and luxury hotels and condos. The aluminum casing with the lip-shaped silicone insert is .890” wide and .795” deep while the aluminum casing with the solid insert is .890” wide and .835” deep.  The screw is easily adjustable with a screwdriver.

    ­­­Door Gasket is fitted with FS3003 INTUMET™ material. For more information, see Understanding Intumescent ­­­­Fire Stop Material and Product Data Tab.

    How to order: This product can be ordered as a full set or as individual parts. Select which parts you would like to order from the 'Options' drop-down menu above.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    Check out our other Products with INTUMET™

      • SKU
        ZR3056FS-3557FS-AA
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      3056-3557
    • Options
      Full Set, Stile with Double-Lip Insert Only, Stile with Solid Insert Only
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Silicone
      • Door Type
        Double Active Doors
      • Mounting
        Fully Mortised
    • Dimensions
      • Total Height
        .890"
      • Width
        .835"
    • Installation
      • Installation Screws
        Provided
    • Finishes
      • Finish

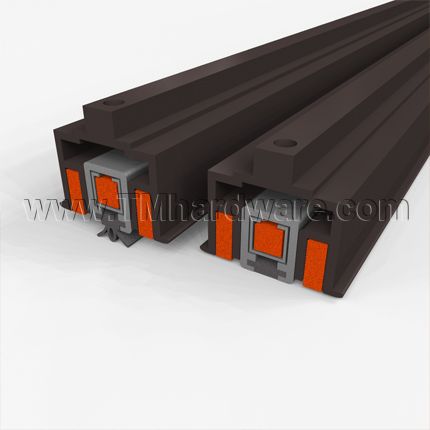

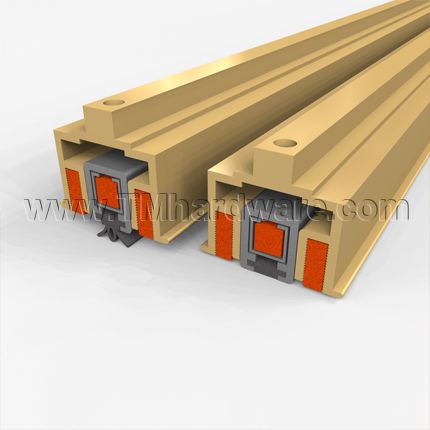

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
    • Compliance Details
      • Compliance Details

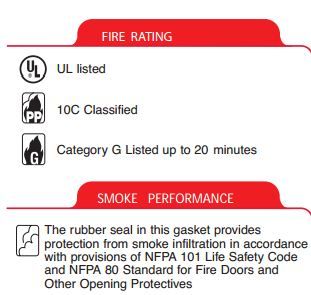

        UL Classified, Fire Rated, Smoke Rated
      • Warranty
        1 Year Limited Warranty
