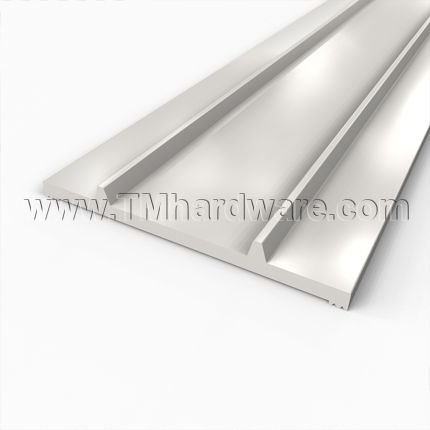

Zero #469 Custom Threshold, Connector Component, Aluminum, .125" Height
This Zero #469 Assembly Connector is part of the adjustable threshold width system and made of Aluminum Mill Finish. Formed with notches, it is easily interlocked with our threshold plates and other parts to create a threshold specific to your needs. It has a .125" height and is .095" thick making it extremely durable.Â
SOLD BY THE FOOT
Please note: This product is part of the adjustable thresholds and is designed to be used in conjunction with a variety of pieces/parts of all different lengths. To view all other parts go to our Adjustable Threshold Page.

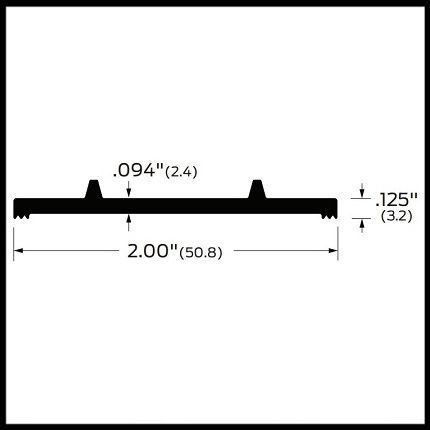

This Aluminum assembly connector is made of high quality material and is .095" thick. It is 2" wide and has a .125" height. As part of the adjustable width system, the assembly connector is formed with notches on the top, making it easy to link (without any welding required) to other parts from the adjustable width-system. When used in conjunction with our Threshold Rests, the complete threshold is wheelchair compliant, creating easy access. With the threshold adjustable width system you are able to create a threshold according to your exact measurements (see product specs and applications.) Great for commercial and home use.
- Has passed the ANSI Standard Load Test
- .095" thick metal - extremely durable
- .125" height
- 2" width
- Part of adjustable width system
- Length is custom cut to size
Please note: This product is part of the adjustable thresholds and is designed to be used in conjunction with a variety of pieces/parts of all different lengths. To view all other parts go to our Adjustable Threshold Page.
For a higher clearance see our Assembly Connector with a .250" height.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
Please allow 7-14 business days for this product to ship.
This product has a 1 year guarantee against defects in material and workmanship.
-
QuickShipNo
-
ManufacturerZero International
-
MPN469

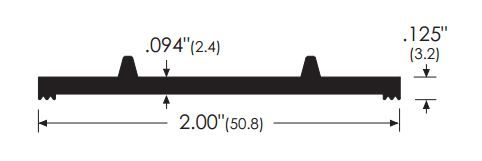

- Dimensions
-
Overall Height.125" Height
-
Overall Width2" Width
-
Threshold LengthCustom Cut to Size
-
Thickness.095" Thick
-
- Product Design
-
Flat Saddle DesignSmooth Top Design
-
Threshold TypeCustom Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishFlat Black (US19)
-

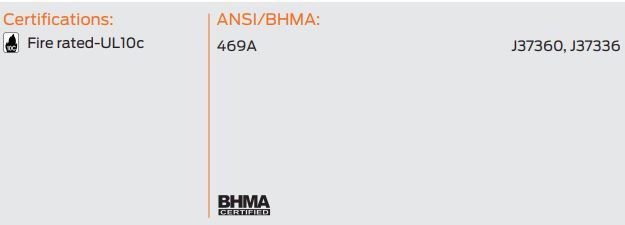

- Compliance Details
-
Warranty1 Year Limited Warranty
-
