Zero #364FS, Automatic Door Bottom, Mortised Aluminum and Neoprene Bulb Seal with FireStop INTUMET

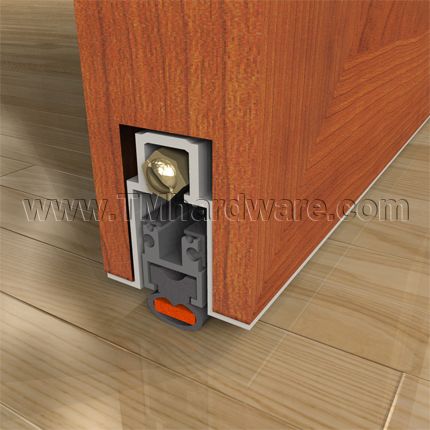

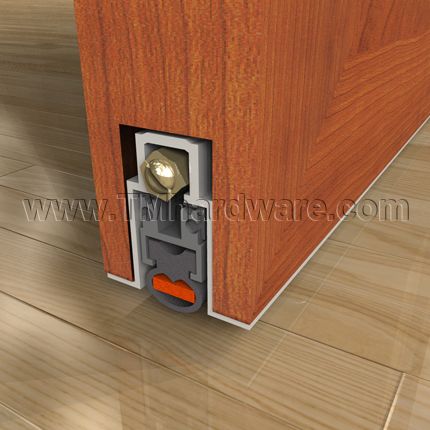

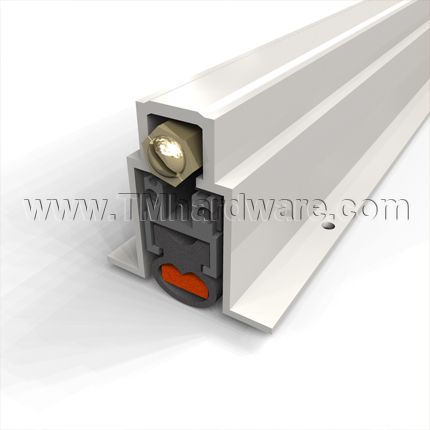

This Zero International #364FS, Fully Mortised, Heavy Duty Automatic Door Bottom has a solid neoprene bulb drop seal with INTUMET™ Fire Stop Material Insert (see below for more details) which is great for maintaining fire ratings on doors. This door bottom will block sound, light, drafts and more. It is made of high quality mechanisms which have been successfully tested through 5 million cycles. Rated for fire, smoke and sound and length is custom cut to size.
How to Order: Selecting Exact Size will determine your price. Note, 18.25" - 36" Range is the lowest priced range. To determine length needed, see How to Measure for an Automatic Door Bottom.
See tabs below for additional information
This product is great for maintaining fire ratings on doors. The fully mortised aspect of this automatic door bottom is great for high end designer doors and luxury hotels and condo units that prefer their doors retain their clean, unobtrusive look.
INTUMET™ Fire Stop Interior: Utilizing Intumet™ intumescent material which expands when heated to prevent the spreading of fire, this product effectively seals the air gap from the infiltration of fire, in addition to smoke, sound, light, drafts and insects. Fire, smoke, and draft rated. Door Gasket is fitted with FS3003 INTUMET™ material.
For more information, see Understanding Intumescent Fire Stop Material.
Sizing: To determine length needed, see How to Measure for an Automatic Door Bottom.

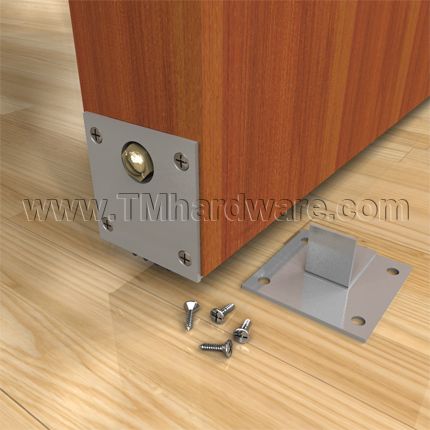

Additional Options - End Caps: This product comes with standard end caps. Easy Access End Cap brackets can be purchased by selecting link. Easy Access Brackets are designed to secure Mortised Automatic Door Bottoms to the door without using bottom screws, enabling easy access for repairs and maintenance and for the unit to be removed without taking the door off the frame.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
Check out our other products that utilize Intumet™ Intumescent Material.
-
QuickShipNo
-
ManufacturerZero International
-
MPN364FS
- Product Design
-
Mounting TypeFully Mortised
-
Door TypeWooden Door
-
- Dimensions
-

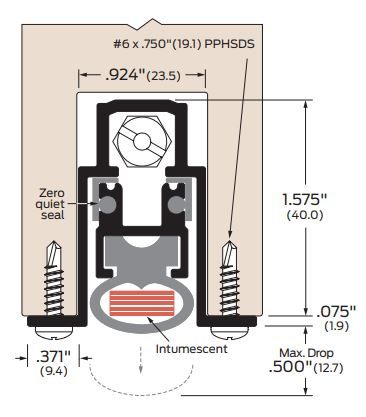

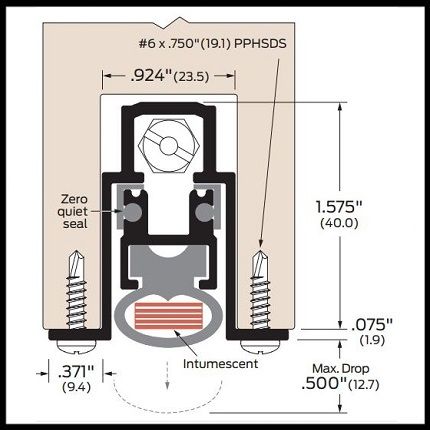

Casing DimensionsBody measures 1.575" H x .924" W. Extended flanges on both sides measure .371". Total Width is 1.6". Compatible with doors with a thickness of at least 1.75".
-
LengthCustom Cut to Size
-
Drop SizeUp to .5" Drop
-
Suggested Door Cut-Out1" x 1-5/8"
-
Door Thickness1-3/4" Thick
-
- Installation
-
HandingNon-Handed
-
Installation ScrewsInstallation Screws Provided
-
SizingTo determine sizing required see 'How to Size an Automatic Door Bottom'
-
- Additional Options - Purchase Through Our Office
-
Colored End CapsYes
-
- Special Features
-
Compatible Easy Access End CapsZ49 Easy Access End Caps
-
FireStop MaterialYes
-
- Finishes
-
FinishClear Anodized Aluminum (US28)
-
- Compliance Details
-
Compliance DetailsFire Rated, BHMA Certified
-
ANSI DesignationR3B3241
-
Warranty1 Year Limited Warranty
-
Click here for a Printable Copy of How to Install a Mortised Automatic Door Bottom.
|
Automatic Door Bottoms are available with three mounting options: Surface Mounted, Semi-Mortised and Fully Mortised. A surface mounted application can be applied without removing the door from its hinges. For a semi-mortised, if the rabbet in the door is cut-out already, the door does not need to be removed. For a fully mortised application the door should be removed before starting. |
|
STEP 1: PREPARE YOUR DOOR BOTTOM
Remove door and cut mortise in bottom of door as per the dimensions of the provided product specs. NOTE: If a door is fire labeled or of special construction, mortise preparation must be done by the door manufacturer. |
|
STEP 2: MEASURE AND TRIM YOUR DOOR BOTTOM
Measure your door from side to side. That will determine the length required for your Door Bottom. |
|
Once you have you determine the size needed, if necessary, trim your door bottom. Use a chop saw or table saw to create a perfectly straight cut. Note, Only trim opposite the actuating plunger, brass nut. (Trimming from the brass nut side will ruin your ADB). You can trim from the edge up to one inch of the screw on the side wall of the ADB. |
|
STEP 3: APPLY YOUR AUTOMATIC DOOR BOTTOM
With door removed from opening, install the door bottom with plunger at the hinge side, fasten with screws provided and install door in opening. |
|
STEP 4: ADJUSTING YOUR AUTOMATIC DOOR BOTTOM
Screw the actuating plunger in or out as required until the gasketing just touches the sealing surface when the door is closed. It is not necessary to squash the gasket to provide an effective seal. |
|
Once you have followed through with all the instructions your Automatic Door Bottom is good to go! Enjoy years of quality sound, draft and light infiltration control with your new door bottom. |
.jpg "How to Install an Automatic Door Bottom- Figure 1")
.jpg "How to Install an Automatic Door Bottom- Figure 1")
.jpg "How to Install an Automatic Door Bottom- Figure 1")
.jpg "How to Install an Automatic Door Bottom- Figure 1")
.jpg "How to Install an Automatic Door Bottom- Figure 1")
The Automatic Door Bottom utilizes a concealed flat spring mechanism which is activated upon opening and closing of the door. A brass plunger is compressed when the door is closed to automatically drop the seal, starting from the hinge side first. The seal is raised when the door opens. This motion ensures a smooth drop without a drag, even on an uneven surface. It is compatible with a door saddle or against the floor. The door bottom is built from durable materials that are meant to last. It has been tested through 5 million cycles!
See also About Automatic Door Bottoms.
