Deltana Curved Door Handle, Grade 2 with Cylinder
Door Handle with or without Lock, 2 3/4" backset and Grade 2 certification. Available in a variety of functions and finishes, see below for details and pricing.
PRICED PER PIECE

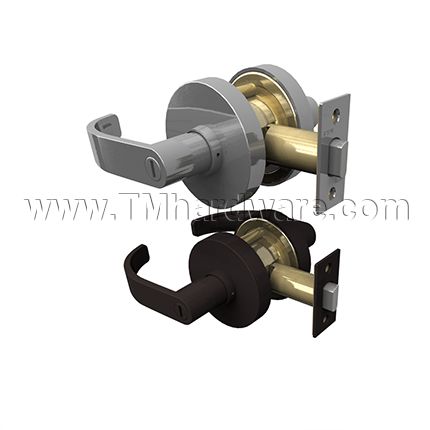

Deltana CL600EVC, CL601EVC, CL602EVC, CL609EVC Door Levers.

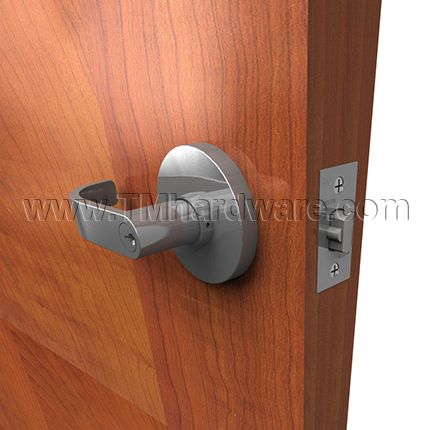

Function: CL600EVC Single Cylinder Entry Lever, locks and unlocks with a key on the outside and thumbturn on the inside.

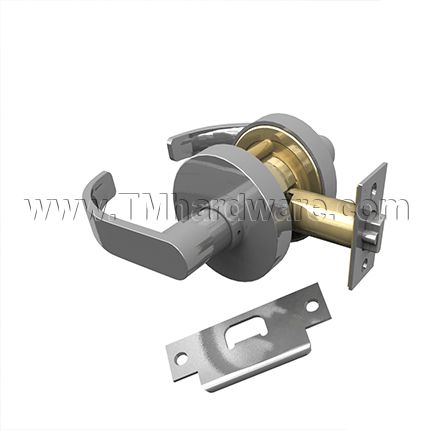

CL601EVC Passage Lever, no locking mechanism
CL602EVC Privacy Lever, no locking mechanism on the outside, locks on the inside with push button mechanism.
CL609EVC Classroom Lever, locks and unlocks with a key on one side, no locking mechanism on the second side.
Design: Curved door levers. Grade 2. For 1-3/8"-2" thick doors. Schlage C compatible keyway.
Specifications: Strike plate and latch included. For standard 2-1/8" bore holes.
Handing: Universal
Material: Steel/Zinc
Dimensions: Lever: 6 1/8"
Projection: 2- 3/4"
Backset: 2 3/4"
Door Thickness: 1-3/8"-2"
Rose Diameter: 3-3/8"
See Product Data Tab for additional information
Available Finishes: Oil-rubbed Bronze: US10B, Brushed Chrome: US26D.
Priced per piece
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.
Click to view our Grade 2 Curved Door Handle.
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNCL600EVC; CL601EVC; CL602EVC; CL609EVC
-
FunctionEntry, Passage, Privacy, Classroom
-
FinishSatin Chrome (US26D), Oil-Rubbed Bronze (US10B)
Printable Documents: |
Click to print Deltana CL600EVC Entry Curved Door Lever. |
Dimensions: |
