Deltana, Plain Bearing, Brass, Residential Grade, 5 Knuckle, Full Mortise, Staggered Hole Pattern Hinge, 4" x 4"

Deltana DSB4-RZ is a Residential, Full Mortise, 5 Knuckle Plain Bearing Hinge, with a Staggered Hole Pattern and is made of Solid Brass. Size of hinges is 4" x 4" with Square Corners and Button Tip Finials. Available in choice of finishes.

PRICED PER PAIR - See full product details and specs in the tabs below

See tabs below for additional information

Quantity

Add to compare

Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.

Finials: Button Tip Provided. See the additional Finial options available.

Priced Per Pair

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year warranty against defects in material and workmanship
Click to see our Full Warranty Policy.

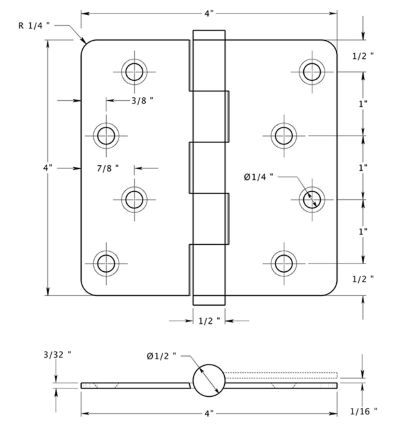

For additional hinges, see our Deltana Full Mortise, 5 Knuckle Hinge with a Staggered Hole Pattern 4"X 4"X 1/4" with Radius Corners DSB4R4-RZ

- SKU
  DTDSB4-RZU3
QuickShip
Yes
Manufacturer
Deltana Hardware
MPN
DDSB4-RZ
Product Design
- Hinge Category
  Full Mortised Hinge
- Base Material
  Brass
- Usage Level
  Residential Grade
- Throw
  Standard Throw
- Bearing Type
  Plain Bearing
- Knuckles
  5 Knuckle Hinge
- Pin Type
  Standard Hinge Pin
- Hinge Tip Type
  Button Tip
- Hinge Corner
  Square Corner
- Hole Pattern
  Staggered (Zig-Zag) Pattern
- Number of Holes
  8 Holes

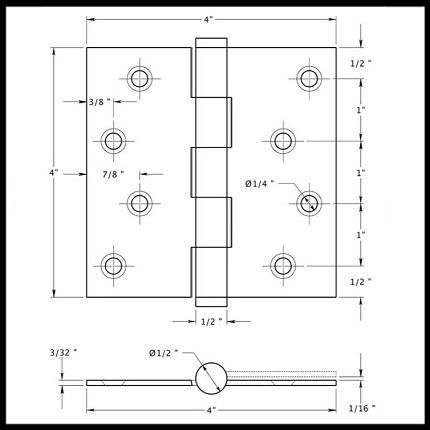

Dimensions
- Hinge Size
  4" x 4"
- Hinge Thickness
  .085" Thick
Installation
- Door Type
  Wooden Door
- Installation Screws
  Wooden Screws #10x1" Provided
Finishes
- Finish
  Polished Brass (US3), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26), Polished Nickel (US14), Flat Black (US19)
Compliance Details
- Warranty
  1 Year Limited Warranty
