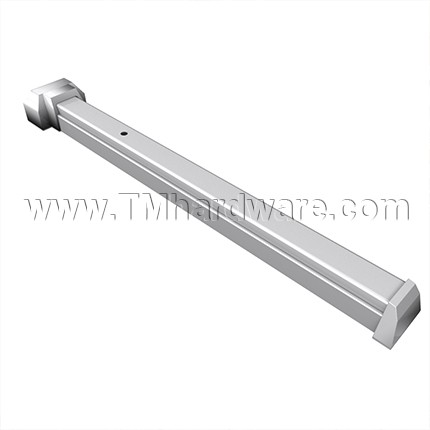

Deltana Push Bar for Emergency Exits

Deltana Push Bar for Emergency Exits
Deltana Hardware

Deltana Push Bars are panic/exit devices  for use on both standard and fire-rated exit doors. They are commercial grade and are available in 36" or 48" for doors 1-3/4" thick. See below for details and pricing

PRICED PER PIECE

See tabs below for additional information
    • Weight
      7 lbs
    • SKU
      DTPDR36-AL
    • Market price:$290.00
      • save 5%
    • Starting price: Price: $275.50 per item

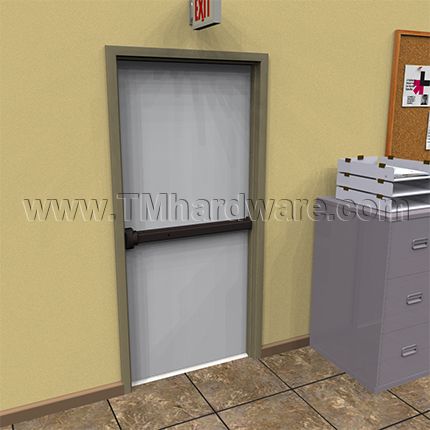

    Deltana Exit/Panic Devices provide fast and easy egress to allow building occupants to exit safely in an emergency.

    Function: Exit/Panic Devices are a door latching assembly incorporating a rim exit device that releases the latch upon the application of force in the direction of egress travel.
                     PDR36 for standard exit doors,     with option of 1-4" mechanical dogging.
                     PDR36UL for fire-rated exit doors, mechanical dogging not allowed.

    Materials: PDR36-Cold Rolled Steel
                     PDR36UL-Stainless Steel

    Applications: Schools, offices, hospitals, commercial buildings

    Handing: Universal for all functions and trims

    Dimensions:     Length: Available in 36" or 48"
                             Door width: 36" standard for door width 2'6"-3'.  48" standard for door width 3' - 4'.
                             Door thickness: For doors 1-3/4" thick. For thicker doors, please contact our office.
                             Latch bolt: 3/4" throw, stainless steel
                             Strike: For 5/8" stop plus shim for 1/2" stop
                             Projection: 2-1/2" maximum, 1-7/8" pressed
                             Backset: 2-3/4"

    Mounting Height: 40-5/16" from CL to finished floor recommended.

    Cylinders:  For trim, knob, lever and thumb-press type. Schlage C compatible keyway

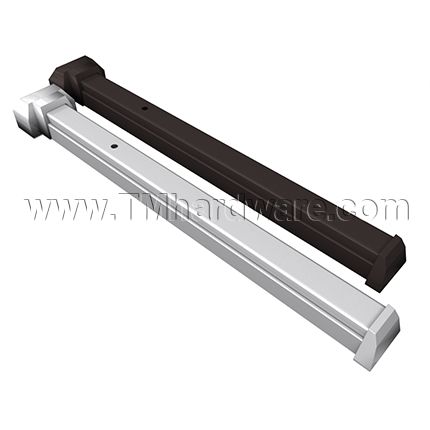

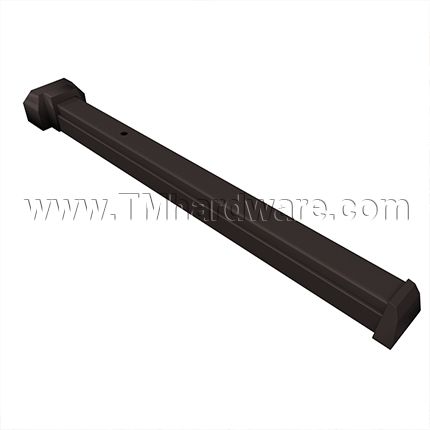

    Finishes: PDR36 is available in Aluminum and Duro finishes.
                    PDR36UL is available in Aluminum finish.

    Mounting Hardware: Furnished standard with metal sheet and machine screw or SNB as option.

    Priced per piece

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    See Product Specs for exact measurements.

    Click here to view our Deltana PDVR36 Push Bars with Vertical Rod.

      • Weight
        7 lbs
      • SKU
        DTPDR36-AL
    • QuickShip
      Yes
    • Manufacturer
      Deltana Hardware
    • MPN
      PDR36
    • Finish Options
      Aluminum, Duro
    • Specifications
      Standard, UL Listed

    Printable Documents:

    Click to print Product Specs for Deltana PDR36 Push Bar.
    Click to print Product Specs for Deltana PDR36UL Push Bar.
    Click to print Product Specs for Deltana PDR48 Push Bar.

    Dimensions for PDR36:
    Deltana PDR36 Exit/Panic Push Bar Dimensions

    Dimensions for PDR36UL:
    Deltana PDR36UL Push Bar Dimensions
