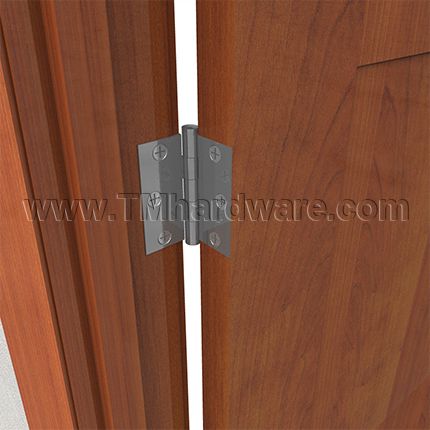

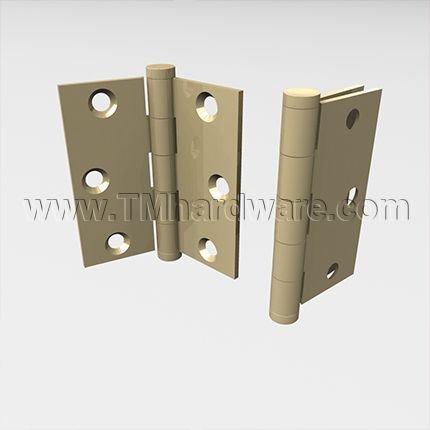

Deltana, Plain Bearing, Brass, Standard Weight, 5 Knuckle, Full Mortise Hinge, 3.5" x 3.5"
Deltana DSB35 is a Full Mortise, 5 Knuckle Plain Bearing Hinge, and is made of Solid Brass. Size of hinges is 3-1/2" x 3-1/2" with Square Corners and Button Tip Finials. See below for available finishes.
PRICED PER PAIR - See full product details and specs in the tabs below
Deltana DSB35 is a Full Mortise, 5 Knuckle Plain Bearing Hinge, and is made of Solid Brass. Size of hinges is 3-1/2" x 3-1/2" with Square Corners and Button Tip Finials. See below for available finishes.
Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.
Finials: Button Tip Provided. See the additional Finial options available.
Priced Per Pair
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship
 Click to see our Full Warranty Policy.
For additional hinges, see our Deltana 3-1/2" x 3-1/2" Â Solid Brass Fully Mortised Ball Bearing Hinges DSB35B
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNDSB3
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialBrass
-
Usage LevelStandard Duty
-
ThrowStandard Throw
-
Bearing TypePlain Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes6 Holes
-
- Dimensions
-

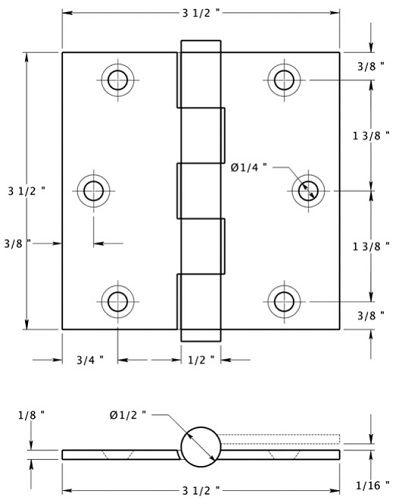

Hinge Size3-1/2" x 3-1/2"
-
Hinge Thickness.119" Thick
-
- Installation
-
Door TypeWooden Door
-
Installation ScrewsWood Screw: #10 x 1" Provided
-
- Finishes
-
FinishPolished Brass (US3), Unlacquered Brass (US3NL), Satin Brass (US4), Antique Brass (US5), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Antique Nickel (US15A), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), PVD Polished Brass
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
