Pemko #308V Door Bottom, .875" Aluminum Casing with .563" Eco-V Vinyl Seal

This door sweep can be used to seal up to a .563" (9/16") the gap between the door and threshold or to the floor surface. The casing is surface mounted to the face of the door and is fitted with a fire rated Eco-V™ (Vinyl) extrusion. Available in various aluminum finishes and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information

Finish
Size

Quantity

Add to compare

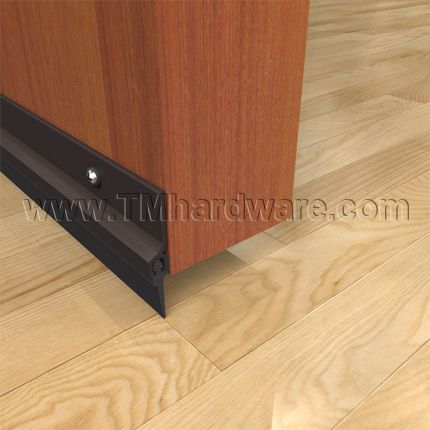

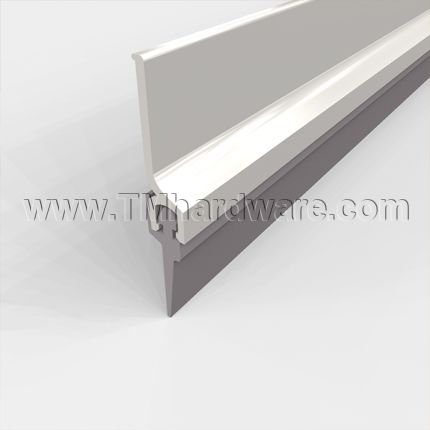

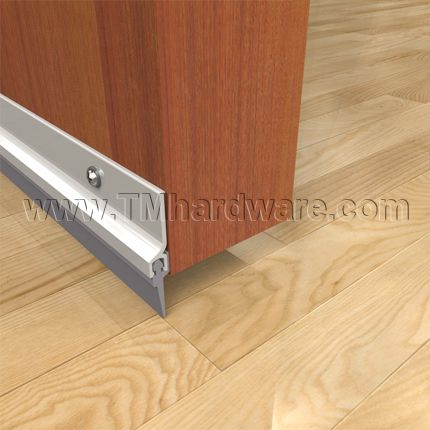

This door bottom is surface mounted to the face of a door to prevent infiltration of smoke, fire, air, drafts, light and moisture through the gaps under doors. The .875" (7/8") aluminum channel is fitted with an Eco-V™ (Vinyl) extrusion that can seal gaps up to .563" (9/16"). It can be applied above a doorway threshold or directly over the floor surface.

Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. The seal is fire rated and UL GreenGuard Gold Listed, to help acquire LEED Certification.

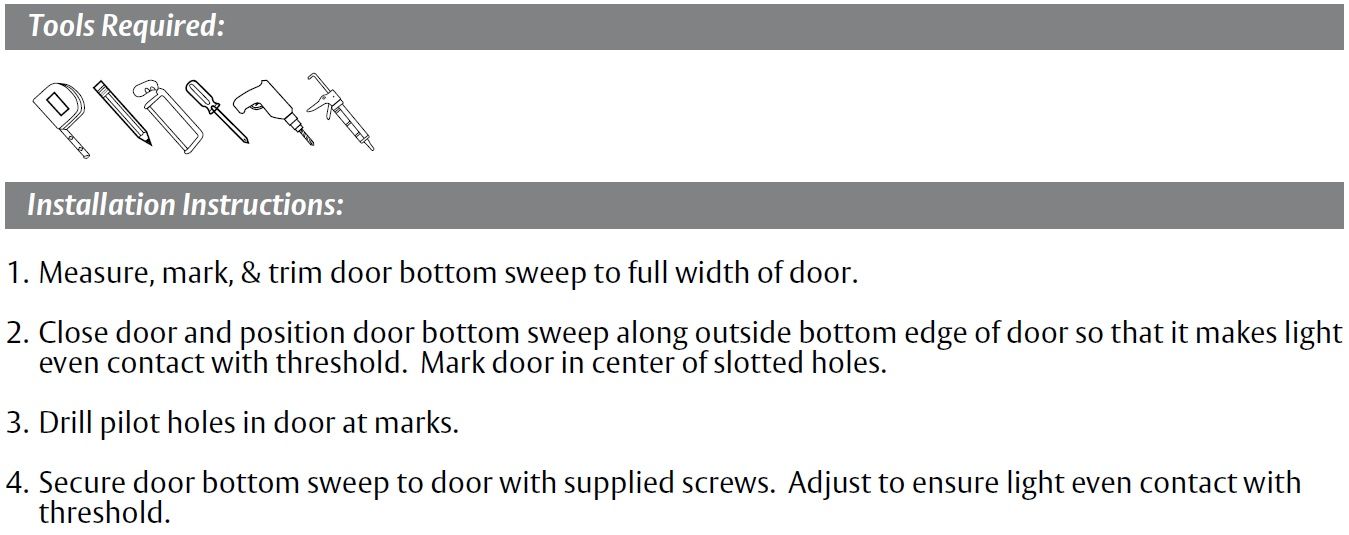

Installation Guide and Screws provided. Screws are colored to coordinate with casing.

Insert Colors: Please refer to images above for the color of the insert. If alternate combination is required, please contact us or call us at 845-388-1300.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

To seal larger gaps, see our Aluminum Casing Door Bottom with 1" Rubber Lip.

- SKU
  PK308-10BEV
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
308V
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Eco-Vinyl Rubber Seal
- Mounting
  Surface Mounted
Dimensions
- Seal Height
  9/16" Height
- Total Height
  1-7/16" Height
- Additional Dimensions
  Door seal is 1/4" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
Finishes
- Finish
  Mill Finish Aluminum (US27), Oil Rubbed Bronze, Equiv. (10BE), White Suede Powder Coat
Compliance Details
- Compliance Details
  Fire Rated, GreenGuard Gold Certified
- ANSI Designation
  R3D434
- Warranty
  5 Year Limited Warranty

Click to Print

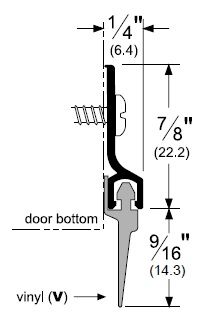

P308V Product Specs:

Click to Print

P308V Product Specs:

Click to View Ratings Explained

Fire Rating Compliance Details - 10C

Finishes Comply with the Following ANSI / BHMA Codes:

Aluminum Mill Finish - US27 / 719
Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Bright Dip Gold Anodized Aluminum - US3 / 707
Gold Anodized Aluminum - US4 / 688
Satin Nickel Anodized Aluminum - US15 / 619
Painted White Aluminum - 714
