Pemko #3151N Door Bottom, 1.25" Aluminum Casing with 1" Neoprene Seal

This door bottom, with a 1.25" sleek aluminum casing, is fitted with a .25" thick neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface to seal gaps of approximately 1". Available in various anodized aluminum variations and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information

Finish
Size

Quantity

Add to compare

This door bottom is surface applied to create a seal between the door bottom and threshold / floor surface. It is fitted with a fire, smoke and air infiltration rated .25" thick neoprene extrusion. Encased in a 1.25" high quality aluminum / brass casing, it is surely long-lasting and will provide ongoing superior performance and will not impede proper operation of door. The seal can fill gaps of approximately 1".

Installation Screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

Don't need to fill such a large gap? See our popular Aluminum or Bronze Door Bottom with .438" Neoprene Seal.

- SKU
  PK3151CN
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
3151N
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Metal Door, Wooden Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Surface Mounted
Dimensions
- Seal Height
  1" Height
- Total Height
  2-1/4" Height
- Additional Dimensions
  Door seal is 1/4" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
Compliance Details
- Compliance Details
  Fire Rated, Smoke Rated, Air Infiltration Rated, UL Classified, BHMA Certified
- ANSI Designation
  R3B434
- Warranty
  5 Year Limited Warranty

Click to Print

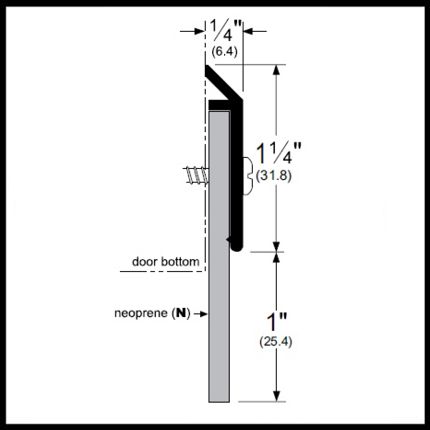

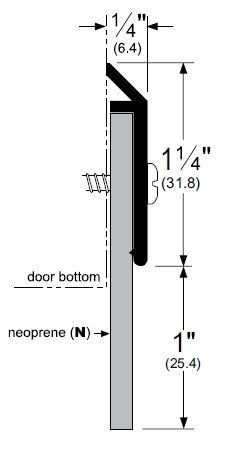

P3151N Product Specs:

Click to View Ratings Explained

Air Infiltration Rating for Pemko Door Bottom with Neoprene Seal, 3151N Smoke Rating for Pemko Door Bottom with Neoprene Seal, 3151N Fire Compliance Rating for Pemko Door Bottom with Neoprene Seal, 3151N UL Classification Rating for Pemko Door Bottom with Neoprene Seal, 3151N BHMA Certification for Pemko Door Bottom with Neoprene Seal, 3151N

Finishes Comply with the Following ANSI / BHMA Codes:

Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Gold Anodized Aluminum - US4 / 688
