Pemko #294 Door Gasket, .875" Aluminum Casing with Eco-V (Vinyl) Fin Seal

Pemko #294 Door Gasket, .875" Aluminum Casing with Eco-V (Vinyl) Fin Seal
Product Specs of Door Gasket #294 Aluminum Mill Finish Door Gasket Door Gasket with Eco-V Seal Bright Dip Gold Anodized Door Gasket Door Gasket with Eco-V Seal Dark Bronze Anodized Door Gasket Door Gasket with Eco-V Seal Gold Anodized Door Gasket Door Gasket with Eco-V Seal Painted White Door Gasket Door Gasket with Eco-V Seal

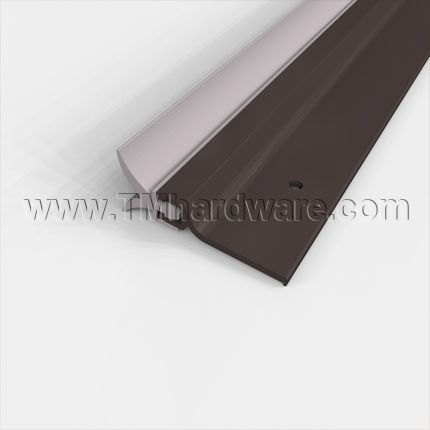

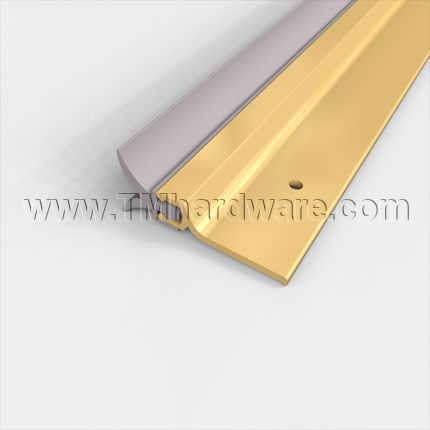

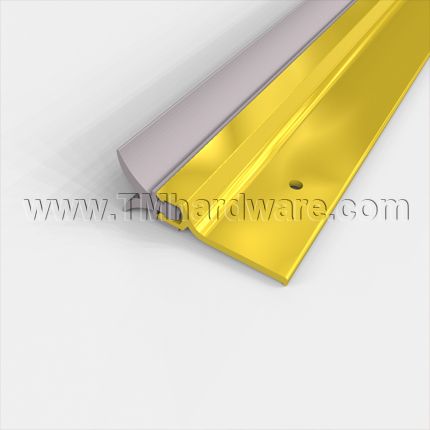

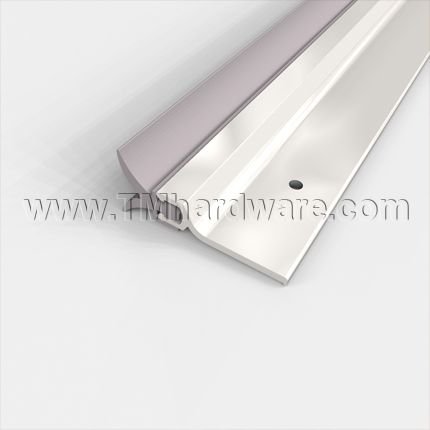

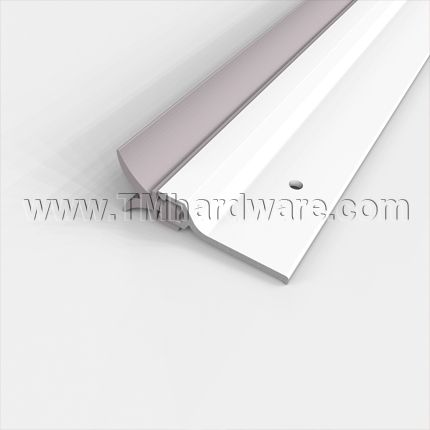

This door gasket is made of an Aluminum Casing fitted with an Eco-V Vinyl Fin Seal. The seal is designed for openings with 1/16" gaps, but it can seal up the depth of its seal. The .875" Casing is available in seven finishes and is custom cut to size. Additional mounting options are available for some finishes.

PRICED PER FOOT.

Market price: $1.68
save 15%
Price: $1.43
Finish
Mounting
Size (Inches)
Qty
Save to wishlist
SKU P294AV
Options Screws or Adhesive Mounting
Shipping See Shipping Tab Below
Description

This gasketing weatherstrip is applied along the header and jamb of a door frame to seal the gaps along the perimeter of the door. It is fitted with a high quality Eco-V Fin seal which prevents infiltration of fire, smoke, sound, drafts and light. Casing is available in seven finishes and is custom cut to size.

Key Features of this Product Include:

Seal: This Door Gaskets seal is made of high quality Eco-V (Vinyl). Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version. It surpasses the quality and durability of standard vinyl, resulting in a longer service life and less need for replacement.

The fin seal is designed for openings with gaps of 1/16", but can seal gaps up to the depth of its seal. The protruding fins are great for doors with slight surface irregularities. The flexibility compensates for misalignment of the door, due to poor installation or natural warping and shifting.

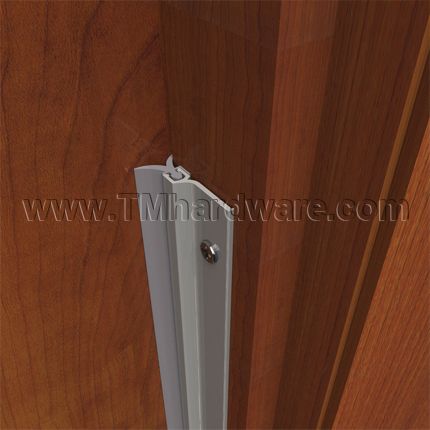

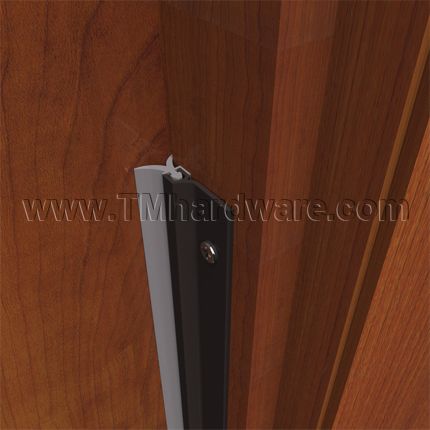

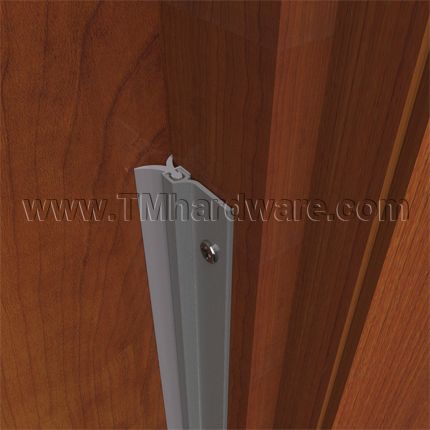

Casing: The gasketing seal is housed in a high quality aluminum casing which is surface mounted to the stop of the door. The casing is punched with elongated slots which allow for easy adjustments while installing. Casing has dimensions of .875" x .25" (7/8" x 1/4").

Mounting: This door gasket is available with standard screw holes. Additional self-adhesive backing, which aids in installation, is available for the aluminum mill and dark bronze anodized finishes. Select from options above.

Compliance: This door gasket is fire rated and complies with UL GreenGuard Gold Requirements which is useful in achieving LEED certification.

  • Eco-V Vinyl Fin Seal
  • Option of Self-Adhesive Backing for Easy Installation
  • Header and Jamb Protection
  • Surface Mounted, Applied to Stop
  • Aluminum or Anodized Aluminum Casing
  • Custom Cut to Size

Installation Guide and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Click here to view all Door Gaskets with Eco-V Seals.

Product Specs

Click to Print

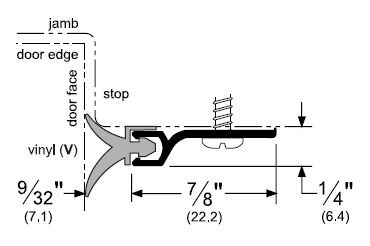

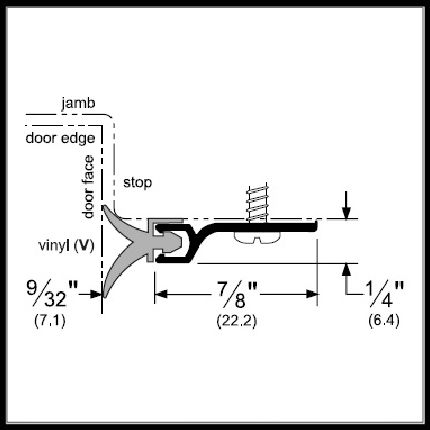

P294 Product Specs:

Product Specs of Surface Mounted Door Gasket with Eco-V Seal - P294V

Installation

Click to Print



P294 Installation Guide:

Installation Guide for Surface Mounted Door Gasket with Eco-V Seal

Compliance Details

Click to View Ratings Explained

Compliance Details for P294 Door Gasket with Eco-V Seal

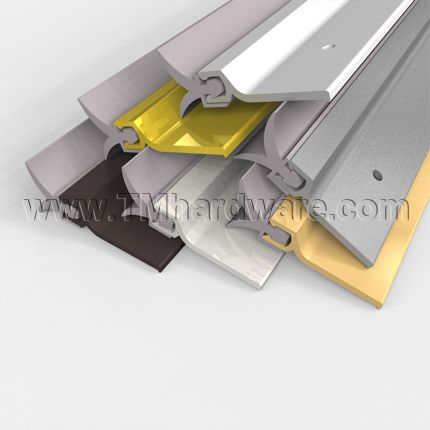

Finishes Comply with the Following ANSI / BHMA Codes:

  • Aluminum Mill Finish - US27 / 719
  • Clear Anodized Aluminum - US28 / 628
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Bright Dip Gold Anodized Aluminum - US3 / 707
  • Gold Anodized Aluminum - US4 / 688
  • Satin Nickel Anodized Aluminum - US15 / 619
  • Painted White Aluminum - 714
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 10-14 Business Day to ship.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 25% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
