Pemko #285 Door Gasket, 1" Aluminum Casing with Large Sponge EPDM or PemkoPrene Seal

Pemko #285 Door Gasket, 1" Aluminum Casing with Large Sponge EPDM or PemkoPrene Seal

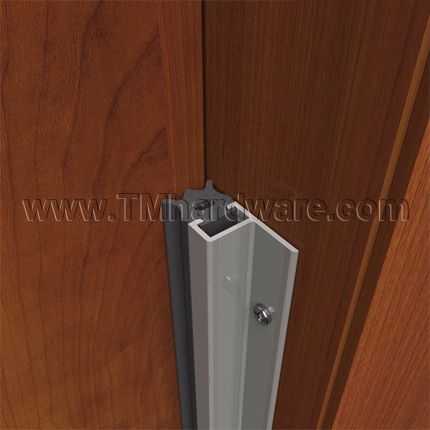

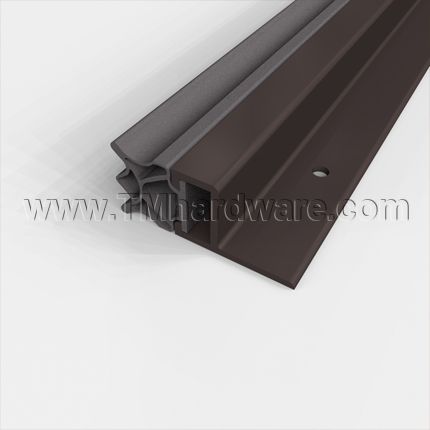

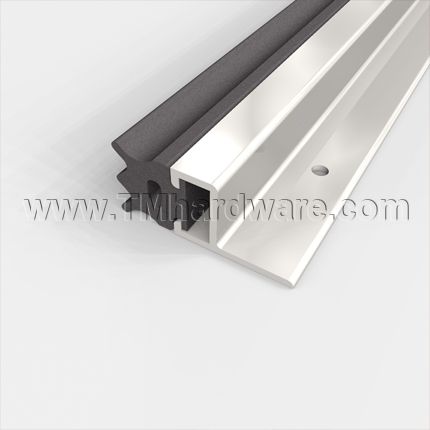

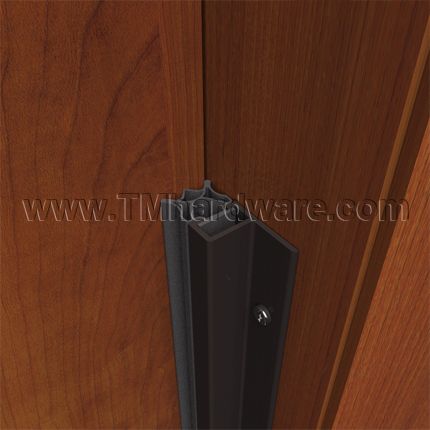

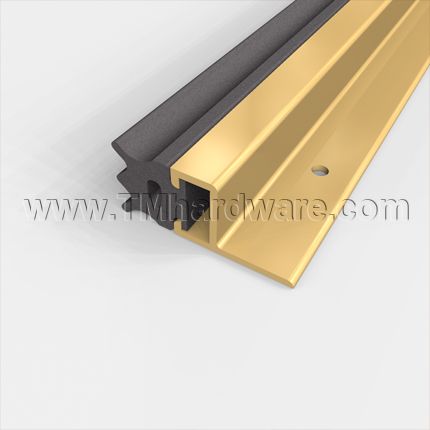

Product Specs of Door Gasket #285 Clear Anodized Door Gasket with EPDM Seal Door Gasket with EPDM Seal Dark Bronze Door Gasket with PemkoPrene Seal Door Gasket with PemkoPrene Seal Gold Anodized Door Gasket with EPDM Seal Door Gasket with EPDM Seal
0.0

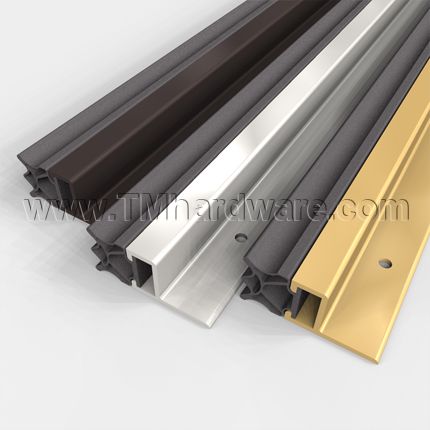

This surface mounted head and jamb protection is fitted with either a large Sponge EPDM or PemkoPrene seal. This gasketing weatherstrip is designed to seal gaps up to 1/16", though it can seal up to the depth of its seal. Casing is available in three anodized finishes and is custom cut to size.

PRICED PER FOOT.

Market price: $7.92
save 15%
Price: $6.73
Finish
Seal Type
Size (Inches)
Qty
Save to wishlist
SKU P285CR
Options EPDM or PemkoPrene™ Seal
Shipping See Shipping Tab Below
Description

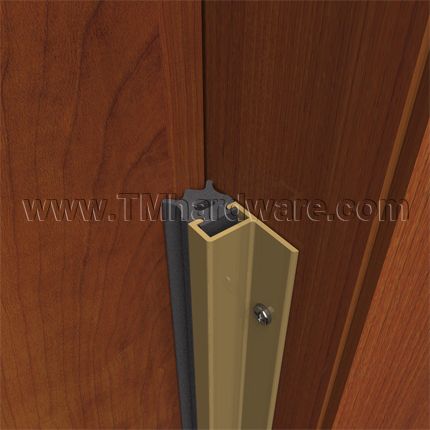

This gasketing weatherstrip is applied along the header and jamb of a door frame to seal the gaps along the perimeter of the door. It is fitted with a high quality rubber seal which prevents infiltration of fire, smoke, sound, drafts and light. Casing is available in three finishes and is custom cut to size.

Key Features of this Product Include:

Seal: Seal material is available in Sponge EPDM or PemkoPrene. Sponge EPDM is comparable to Sponge Neoprene, but is more ecofriendly and delivers overall better performance. Specifically, it has great sound control properties and is resistant to solvents. PemkoPrene has a multi-point compression design which works great on uneven surfaces. Additionally, it is not a firm seal which allows for more leniencies. Both options remain effective in a wide range of temperatures and is a great option for external doors.   See Understanding Rubber Seals for more information.

Gasket is designed to seal gaps of 1/16", however it can seal up the depth of its seal, see product specs for dimensions.

Casing: The gasketing seal is housed in a high quality aluminum anodized casing which is surface mounted to the stop of the door. The casing is punched with elongated slots which allow for easy adjustments while installing. Casing has dimensions of 1" x .65" (21/32").

Compliance: PemkoPrene Seal is rated for Fire, Smoke and Air Infiltration. Sponge EPDM is rated for fire. See Product Specs tab for more information.

  • Fire, Smoke and Air Infiltration Rated
  • Sponge EPDM or PemkoPrene™ Seal
  • Header and Jamb Protection
  • Aluminum Anodized Casing
  • Applied Onto Stop
  • Custom Cut to Size

Installation Guide and screws provided. Screws are colored to coordinate with color of casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

Click here to view all our Rubber Door Gaskets.

Product Specs

Click to Print

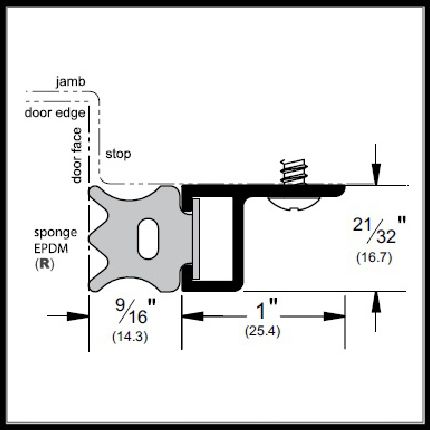

P285 Product Specs:

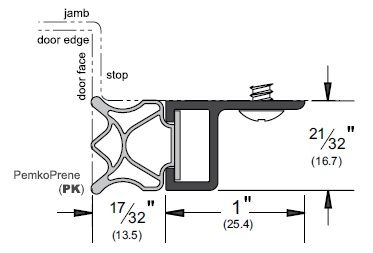

PemkoPrene Seal:

Door Gasket with Large PemkoPrene Seal by Pemko

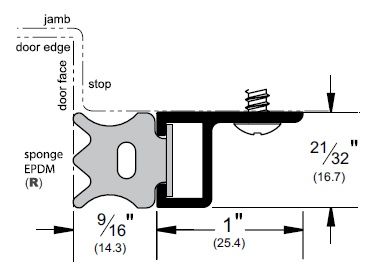

Sponge EPDM Seal:

Door Gasket with Large Sponge EPDM Seal by Pemko

Installation

Click to Print

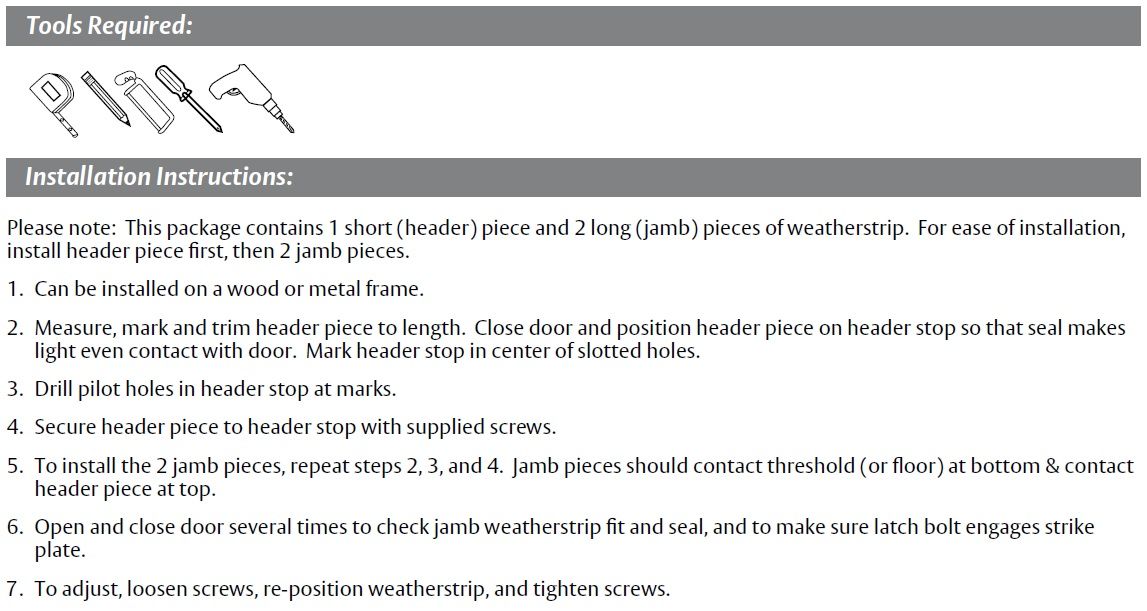

P285 Installation Guide:

Installation Guide for Door Gasket with Large Rubber Seal by Pemko

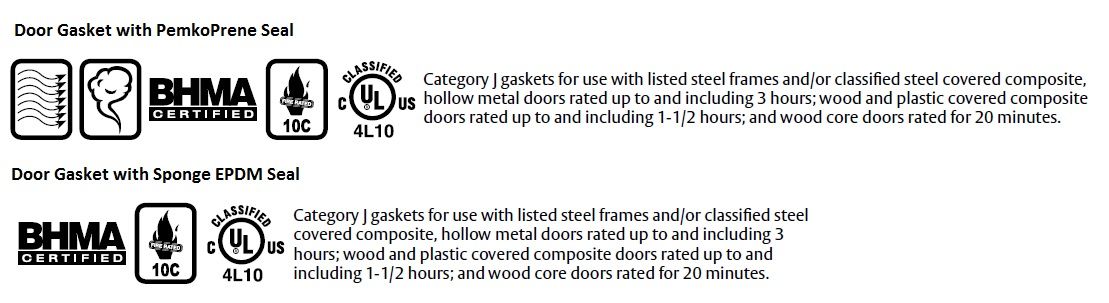

Compliance Details

Click to View Ratings Explained

Compliance Details for Door Gasket with PemkoPrene and Sponge EPDM Seal


Finishes Comply with the Following ANSI / BHMA Codes:
  • Clear Anodized Aluminum - US28 / 628
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 10-14 Business Day to ship.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 25% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
