Door Louver 1500A, Inverted Split Y-Blades with Security Grille, Vandal Proof Thru-Bolt Mount, 1-3/4" Door, up to 3' x 6'-8"

Door Louver 1500A, Inverted Split Y-Blades with Security Grille, Vandal Proof Thru-Bolt Mount, 1-3/4" Door, up to 3' x 6'-8"
Activar Air Louvers

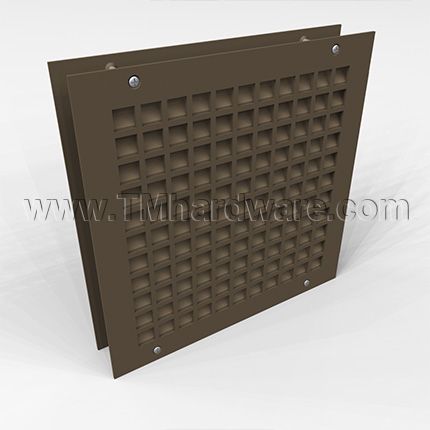

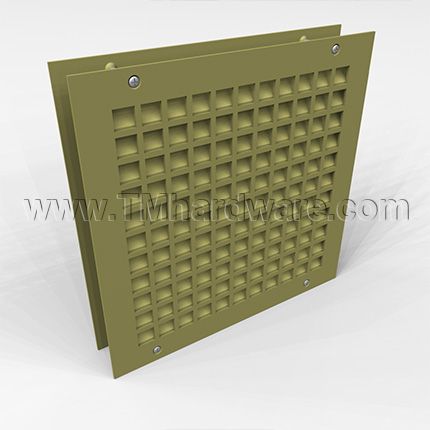

Air Louver 1500A is a Security Door Louver with a Vandal Proof Design. It has Inverted Split "Y" blades with a 12 guage Security Grille on both sides. Compatiable with doors that are 1-3/4" thick and has a free flow area of 40%. This door louver is a two piece louver with a Thru-bolt construction. Available in many different sizes and finishes.

PRICED PER PIECE - See product details and specs in tabs below

See tabs below for additional information
    • SKU
      AC1500A 1212B
    • Market price:$345.00
      • save 20%
    • Starting price: Price: $276.00 per item

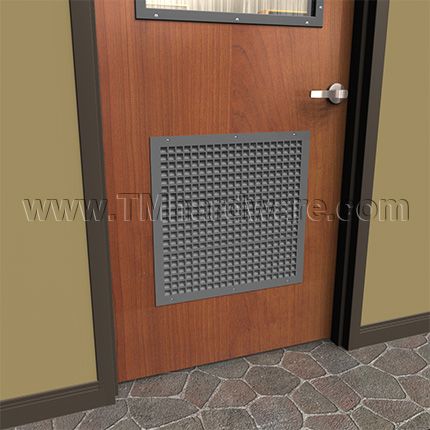

    Door Louvers provide ventilation and air flow while still maintaining the privacy of a closed door. This Vandal Proof Door Louver has a free flow area of 40% and is a security louver with a two piece thru-bolt design.

    Material: 18 gauge CRS frame and blades; 12 gauge CRS security grille

    Dimensions: Available in standard sizes through our site. Additional sizing can be purchased through our office.

    • Available widths: 6" - 36"
    • Available heights: 4" - 72"

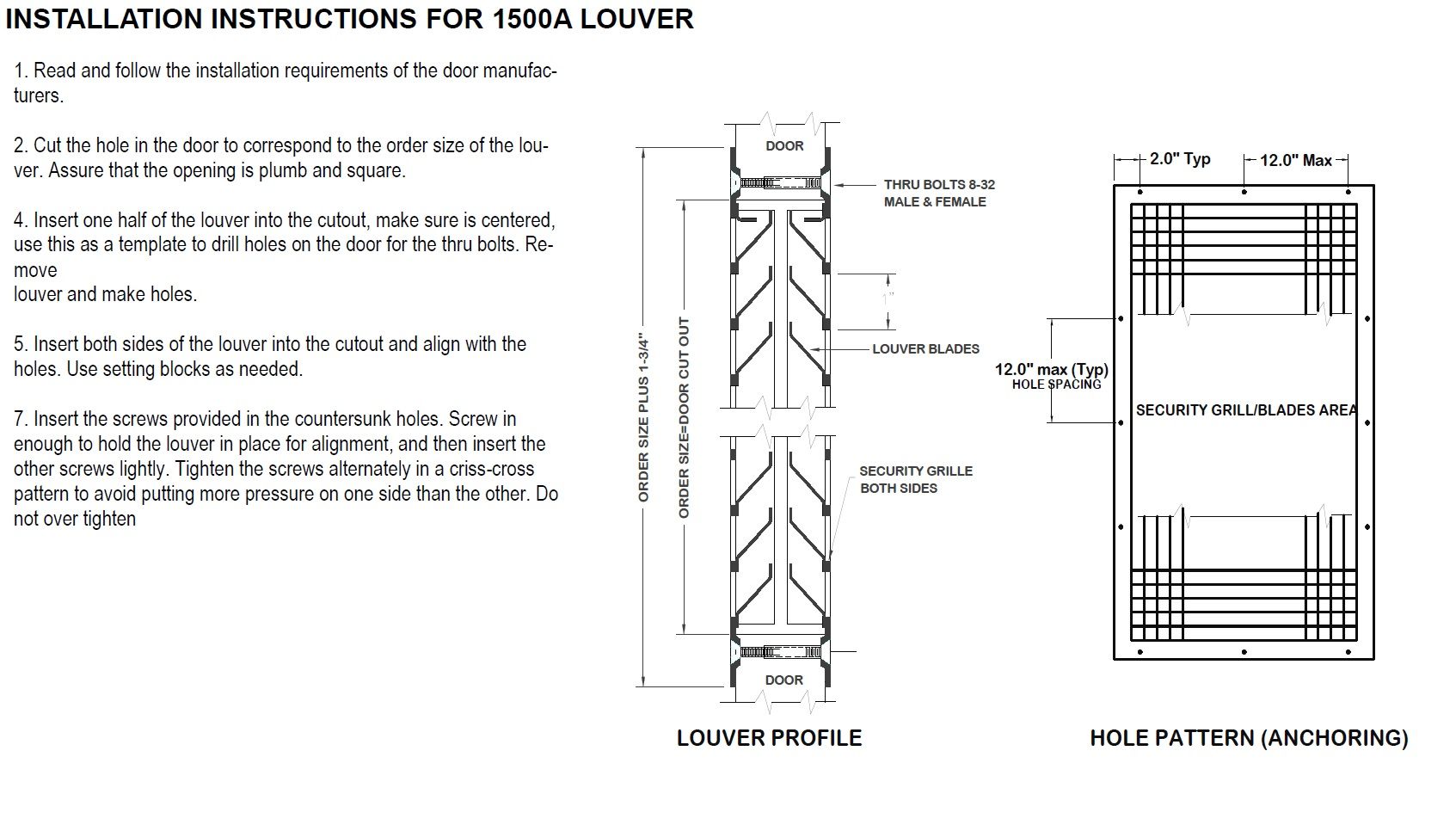

    How to Order: Orders size is the Door Cut-out Dimensions. See Product Specs for details

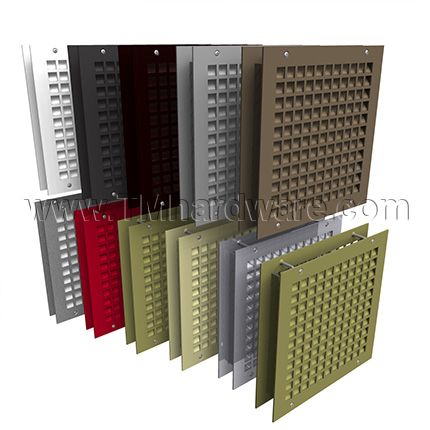

    Available Finishes: Available in all standard Powder Coat Finishes, see our Lites and Louvers Standard Finishes

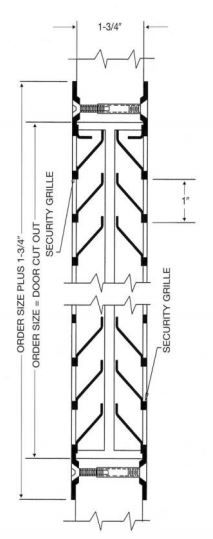

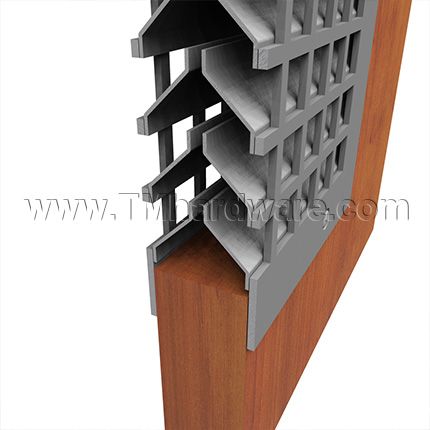

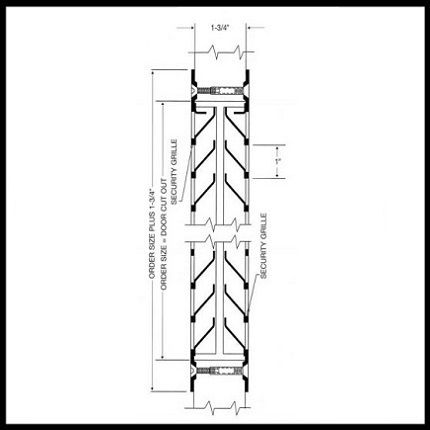

    Construction: Louvers: 2 rows of Inverted, split “Y” blades with 1” blade spacing are attached to welded frame with by interlocking construction. Non-vision. Security Frame: Security grille is welded to on interior and exterior of louver with 13/16” square openings 1” on center. Thru-bolted to door

    Door Type: For 1-3/4” Doors

    Fasteners Included: #8 x 32 Phillips head thru-bolts with blank head one side to match finish

    Free Flow Area: 40% free area

    Additional Options: Custom options are available, please contact us for details and pricing

    • Optional Materials:
      • 20 gauge stainless steel—#4 finish.
      • Electro Zinc Plating for Maximum Corrosion Resist
      • 16 gauge CRS blade
    • Torx Fasteners
    • Optional Screens

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements

    This product has a 5 year gurantee against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click to view our Door Lover 1500A-HRC, Hurricane Rated with Inverted "Y" Blades

      • SKU
        AC1500A 1212B
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      1500A
    • Size (W" x H")
      12" W X 12" H, 18" W X 12" H, 18" W X 18" H, 24" W X 12" H, 24" W X 18" H, 24" W X 24" H, 24" W X 60" H, 24" W X 64" H
    • Finishes
      • Finish
        Mineral Bronze Powder Coat, Gray Powder Coat, Black Powder Coat, Flat Black (US19), White Powder Coat, SC Beige Powder Coat, Silver Powder Coat, Sand Powder Coat, AMS Beige Powder Coat, Red Powder Coat, Gray Hammertone

    Our products are designed to be maintenance free. However, it is recommended that the surfaces of the products be kept clear from debris and dirt. If latches, locks or hinges need to be lubricated, use a "3 in One" type light oil, removing excess with a cloth.

    Mantence for Door Louver 1500A
