Zero #8193, Door Sweep, .59" Aluminum Casing with .375" Nylon Brush
This Zero International #8193 nylon brush door sweep is a convenient way to create a seal for dust, moisture, rain, snow, fumes and even insects and rodents. The door bottom's high quality bristles conforms well to surface irregularities and stay flexible in the cold or heat. Can be custom cut to size.
SOLD BY THE FOOT.
This Zero International #8193 nylon brush door sweep is a convenient way to create a seal for dust, moisture, rain, snow, fumes and even insects and rodents. It seals gaps up to .375". The door bottom's high quality bristles conforms well to surface irregularities and stay flexible in the cold or heat.
Screws are Included. They are colored to blend unobtrusively with casing.
Retainer: Aluminum-High Quality Aluminum casing - Anodized to 204!
This door bottom can also be used as other applications, such as a head and jamb protector and a meeting stile (see our Nylon Brush Door Gasket and Nylon Brush Meeting Stile).
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For larger gaps, see our Large Nylon Brush Door Bottom Sweep.
-
QuickShipNo
-
ManufacturerZero International
-
MPN8193-DB
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Door TypeWooden Door, Metal Door
-
Seal TypeNylon Brush Seal
-
MountingSurface Mounted
-

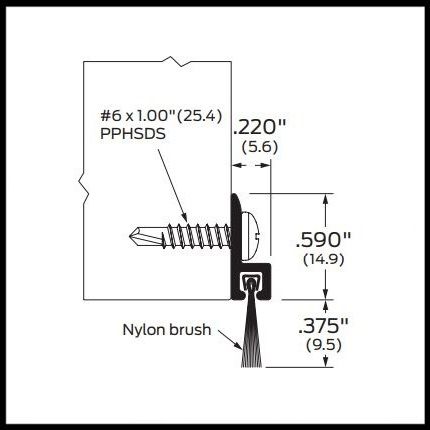

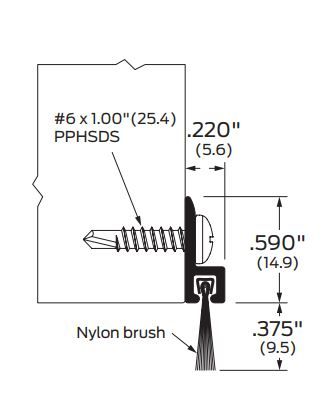

- Dimensions
-
Seal Height.375" Height
-
Total Height.965" Height
-
Additional DimensionsDoor seal is .220" thick
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
Installation Screws#6 x 1.00" (25.4) PPHSDS Provided
-
- Finishes
-

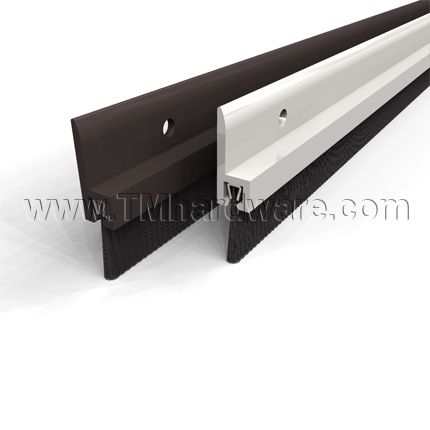

FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Flat Black (US19)
-

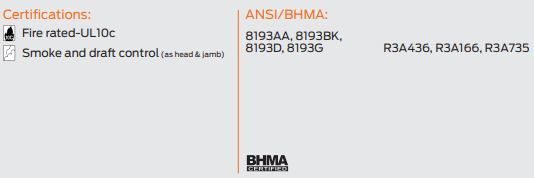

- Compliance Details
-
Compliance DetailsSmoke Rated, Fire Rated, BHMA Certified
-
ANSI DesignationR3A436, R3A166, R3A735
-
Warranty1 Year Limited Warranty
-
