Pemko #18137 Door Sweep, .875" Aluminum Casing with 1.375" Nylon Brush
Similar item in stock sizes that can ship within 1 business day. see our  Barzen #SBS20 Door Sweep, 1.375" Nylon Brush - QUICK SHIPÂ

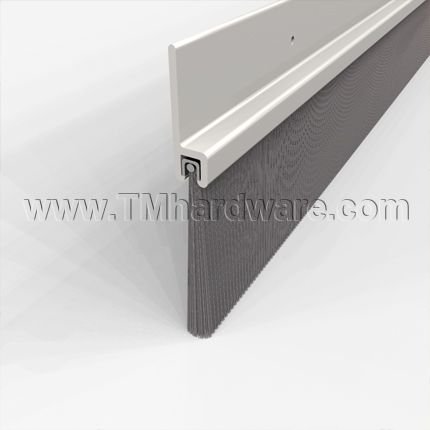

This Door Sweep is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures .875" H, while brush portion has a height of 1.375". Available in variety of finishes and is custom cut to size.
Need it sooner? Stock size and finish is available to ship within 1-3 business days. See our Pemko #PK18137CNB Door Sweep, .875" Aluminum Casing with 1.375" Nylon Brush - QuickShip
PRICED PER FOOT - see product specs and details in the tabs below
Â
This Door Sweep is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities.
Need it sooner? Stock size and finish is available to ship within 1-3 business days. See our Pemko #PK18137CNB Door Sweep, .875" Aluminum Casing with 1.375" Nylon Brush - QuickShip

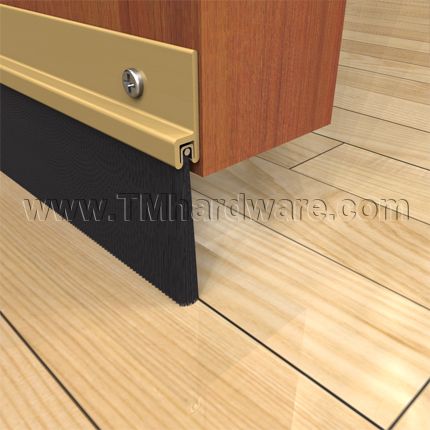

Installation: Installation instructions and screws provided. Screws are colored to coordinate with casing.
Installation Holes: This item is drilled with slotted holes to allow for easy installation
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
 Click to view our Full Warranty Policy.
For a larger brush size, see our Door Sweep 1.75" Nylon Brush.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN18137NB
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature RangeSeals remain flexible between -40° F and over 400° F
-
Door TypeWooden Door, Metal Door
-
Seal TypeNylon Brush Seal
-
MountingSurface Mounted
-

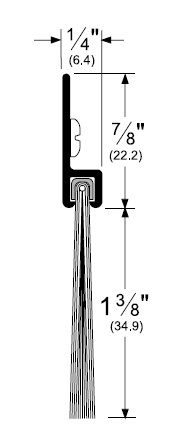

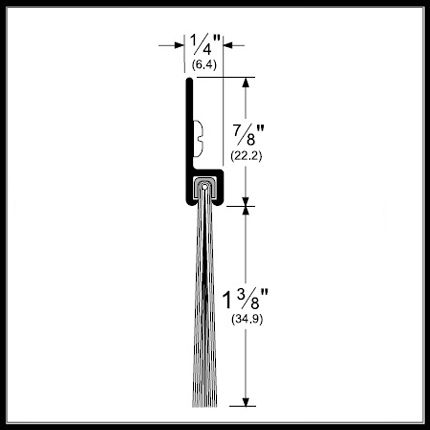

- Dimensions
-
Seal Height1-3/8" Height
-
Total Height2-1/4" Height
-
Additional DimensionsDoor seal is 1/4" thick
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), White Suede Powder Coat (WSP), Black Suede Powder Coat (BSP)
-
- Compliance Details
-
Compliance DetailsFire Rated, Smoke Rated, BHMA Certified, UL Classified
-
ANSI DesignationR3A434
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
Â
Finishes Comply with the Following ANSI / BHMA Codes:
- Clear Anodized Aluminum - US28 / 628
- Dark Bronze Anodized Aluminum - US10B / 710
- Gold Anodized Aluminum - US4 / 688
- Painted White Aluminum - 714
