Falcon 19-R Rim Pushpad Exit Device - Cylindrical Functions and Trims

Falcon 19-R Rim Pushpad Exit Device - Cylindrical Functions and Trims
Falcon

Falcon 19R Series Pushpad Rim Exit Device with trim functions including Night Latch and Dummy Trim. Grade 1 standards, provides a low maintenance narrow stile rim exit device for medium duty applications. Can be used to cover a 161 door prep. Available in a variety of functions, finishes and sizes.

Note: All Functions are less cylinder aside from Key in Lever functions.

PRICED PER PIECE - See full product details and specs in the tabs below.

See tabs below for additional information
    • SKU
      FL19-R-US32D_920_DT
    • Market price:$664.00
      • save 35%
    • Starting price: Price: $431.60 per item


    Falcon Medium Duty 19-R Series Rim Exit Device for panic and fire-rated applications.

    Options:

    Functions and Trims: Large trim selection available with options for functions including: Night Latch, Dummy Trim and Blank Escutcheon. See options tab for full selection.

    Finishes: Available in a choice of 3 finish options; SP28, SP313 and US32D. Centercase and end cap are powder coated black only. (SP28 and SP313 contain certain exposed parts that are molded from black plastic material or black powder coated finish).

    Length: Choose from 2 size options;  3' long (for doors from 2'5" up to 3') and 4' long (for doors from 3' to 4' long). Can be easily cut to size on the field.

    For use on: Commercial, apartments, retail and any medium traffic applications in interior, exterior and retrofit construction.

    Applications: Used for superior panic hardware with modern touchbar styling. Non-handed device covers a 161 cutout and may be used on 1 3/4" narrow stile aluminum doors.

    Materials: Built with rugged steel operating mechanisms, durable aluminum push bars with black powder-coated metal end caps and cast metal cover plates.

    Latch: Stainless Steel, 3/4" throw dead locking.

    Handing: Non handed

    Door Type: For metal or wood doors.

    Door Size: 24", minimum.

    Door Thickness: 1 3/4" thick doors, specify if other

    Door Stile: 1 3/4" thick, minimum.

    Strikes: F570 Standard. F490, 565, 571, 571A Optional.

    Dogging feature: Hex key dogging standard. Cylinder dogging or less dogging optional.

    Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable). Cylinders are only included with key in lever trims.

    Projections: 2-1/2" in neutral position, 1-7/8" in dogged position. Pushbar height is 1-3/4".

    Fasteners: Three 4122 Sex Bolts supplied standard, at no charge. All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

    ANSI: Certified ANSI A156.3 Grade 1 Standards.

    Mullions: Removable mullions are available for pairs of doors.

    Installation: See Installation Tab for complete installation instructions.

    Additional Options: Including electrical modifications, extension rods, 1/2" shims and cylinder options are available through our office. To order please contact us or call our office at 845-388-1300.

    Priced per piece

    Click here to view our Falcon 19-V Surface Vertical Rod Exit Device for Medium Duty Applications.

    This product has a 10 year warranty against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

      • SKU
        FL19-R-US32D_920_DT
    • QuickShip
      No
    • Manufacturer
      Falcon
    • MPN
      19-R; F19-R
    • Product Options
      Exit Device (19-R), Fire Exit Device (F-19-R)
    • Finish Options
      Satin Stainless Steel (US32D), Aluminum Painted (SP28), Dark Bronze Painted (SP313)
    • Size
      32" Device (Doors up to 36"), 44 3/8" Device (Doors up to 48")
    • Function
      Exit Device with Trim, Exit Device with Dummy Trim, Exit Device with Night Latch, Exit device with Lever and IC Core
    • Trim Options
      Trident Trim #920, Centron Trim #930, Control Trim #918, Knob Control #911, Dane Lever Control #912, Key in Lever #914

    Click to print Falcon 19-R Exit Device Product Specs.
    Click to print Falcon F-19-R Fire-Rated Exit Device Product Specs.

    Dimensions:

    Falcon 19-R Exit Device Dimensions

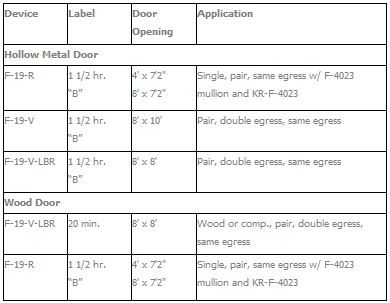

    Applications:

    Falcon 19-R Exit Device Function Options

    ANSI Functions:

    Falcon 19-R ANSI Ratings

    Function Options:

    Falcon 19-R Function Options

    Trim Options:

    Falcon 19-R Series Trim Options
