Pemko #H180A Standard Sliding Door System, Overhead or Side Wall Mount, 180 Lbs.
Aluminum Standard Sliding Door System for doors weighing up to 180 LBS. Option for overhead or side wall mounting with or without a decorative fascia cover. Selection of sizes and finishes available.
PRICED PER SET - See full product details and specs in the tabs below.
Key Product Features:
- Sliding Door System with two mounting options
- 180 lb. door panel weight
- All necessary parts included
- Nickel plated zinc metal composition reduces corrosion and embrittlement
- Many customization options can be ordered
Included Parts
- See product specs and detailed images for visual aid
- Side wall mounting option will included aluminum bracket provided at the same length of the track. The side wall bracket reduces the amount of wall space needed to mount the track.

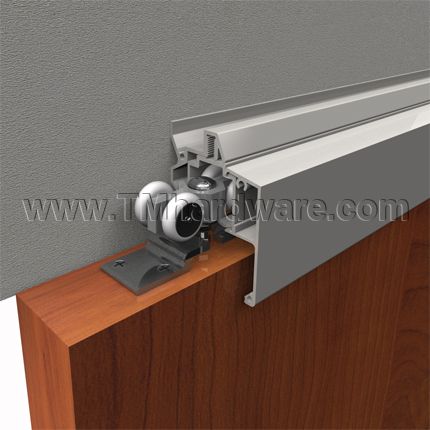

Materials: Track is made of lightweight yet durable aluminum. Hangar body is made of nickel plated zinc alloy, with four nylon coated, zinc alloy ball bearing wheels.
Configurations:

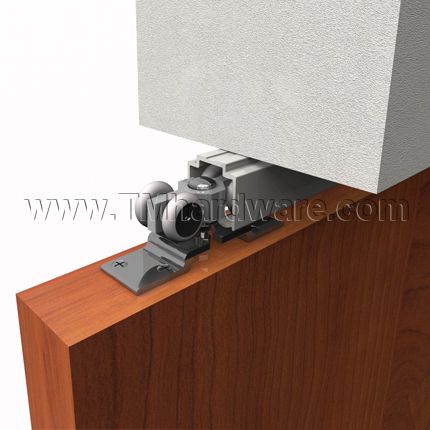

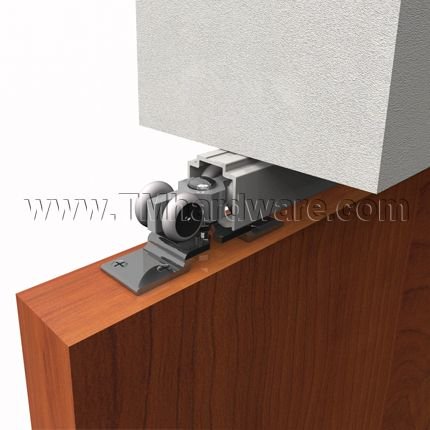

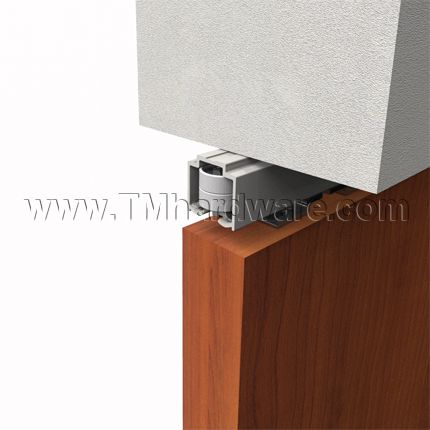

- Overhead Mount
- Side wall mount
- Single door panel installation
- Bi-parting door panel installation (additional hardware required, please contact us or call our office at 845-388-1300 for information and pricing.)

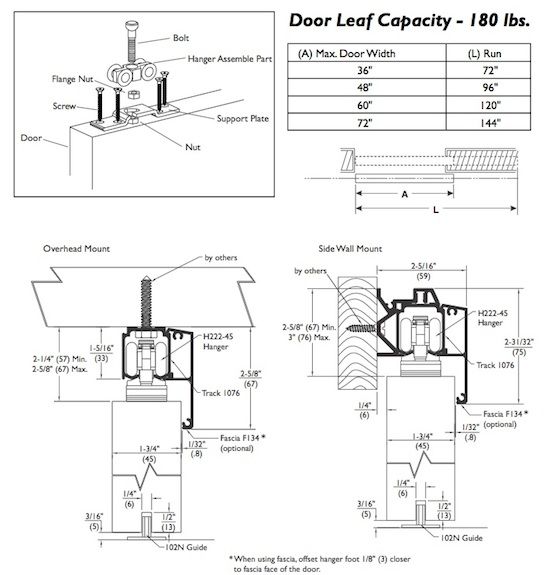

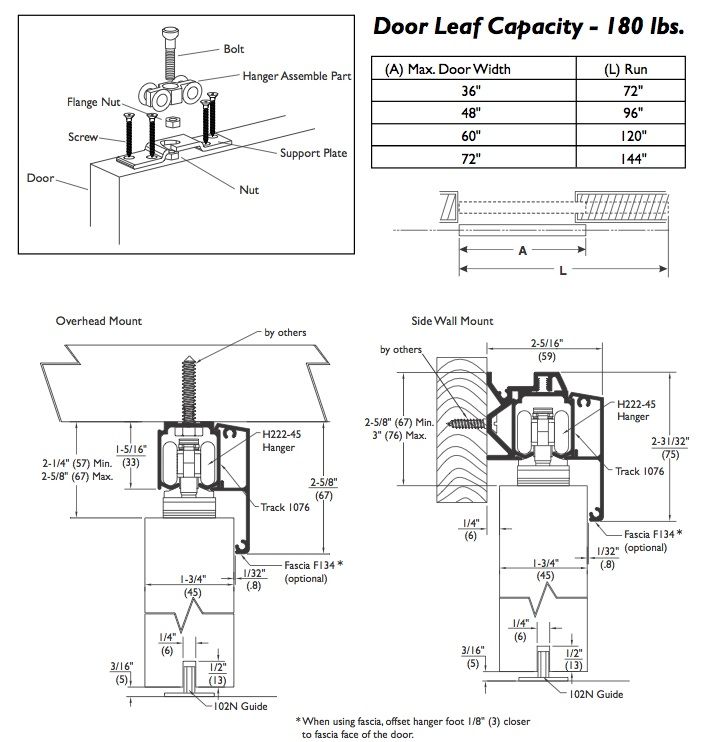

Dimensions and Installation Information: See product specs and installation instructions in tabs to the right.
Additional Customization Options: Including dual bottom guide, roller guide, guide channel and surface mounted door thresholds are available. See customization tab to the right and detailed images above for more on these products.
To order any of these options, please contact us or call us at (845) 388-1300.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Please see our similar Sliding Door Series with Overhead or Side Wall Mounting for 200 Lbs. Panels
-
QuickShipNo
-
ManufacturerPC Henderson
-
MPNH180A
- About This Product
-
Mounting TypeOverhead Mount, Sidewall Mount
-
Door MountSurface Mount
-
Track TypeBox Track
-
System TypeSingle Sliding
-

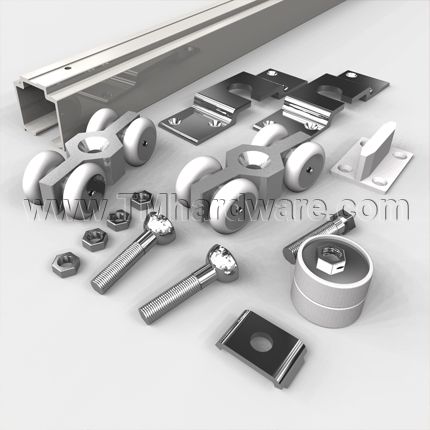

Included PartsAluminum Track - P1076A (1 ea.)
Nickel plated Zinc Hanger Assembly with Zinc alloy ball bearing wheels - H222-45 (2 ea.)
In-Track Rubber Bumper Stop - 287HD (2 ea.)
White Nylon Bottom Mortise Guide - 102N (1 ea.)
Side Wall Mounting Option will also include:

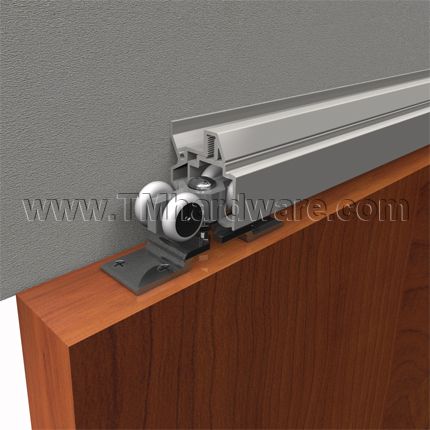

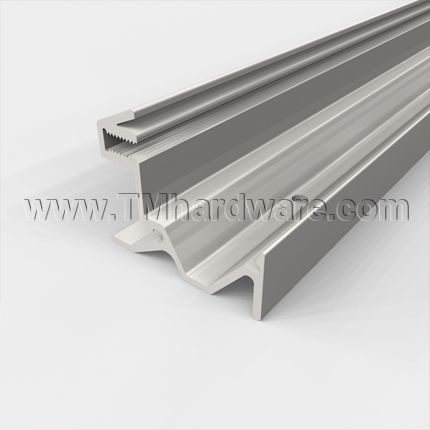

Clear Anodized Aluminum Bracket for side wall mounting, same length as track - 1075C (1 ea.) -
MaterialAluminum
-
- Dimensions
-
Door Panel Weight180 Lb Doors
-
Door Thickness1.75" Thick
-

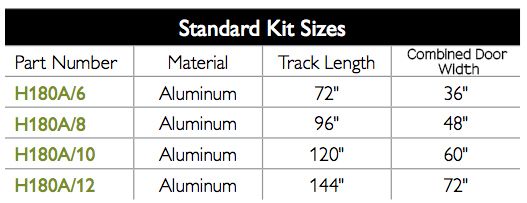

Track Length72" Length, 96" Length, 120" Length, 144" Length
-
- Finishes
-
FinishClear Anodized Aluminum (US28)
-
- Compliance Details
-
Warranty5 Year Limited Warranty
-

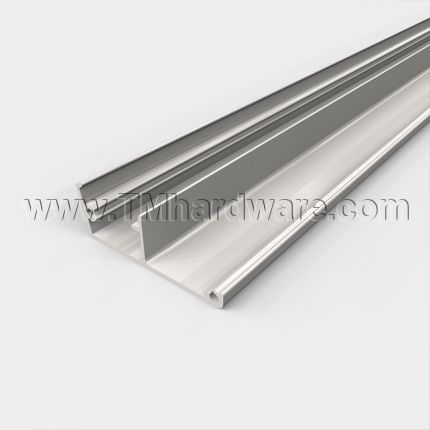

1. Snap–On Fascia Cover (F134C): Aesthetic cover for concealing hanger, track, and wheels. When using fascia, offset hanger foot 1⁄8" closer to fascia face of the door.
2. Bottom Channel (94A): Used as a guide channel when using a Roller Guide. Roller guide is used instead of a mortise guide (described below).
3. Roller Guide (106R/94): In place of a mortise in the bottom of the door for the bottom guide, this roller guide can be installed at the bottom of the door and used with a guide channel (94A).

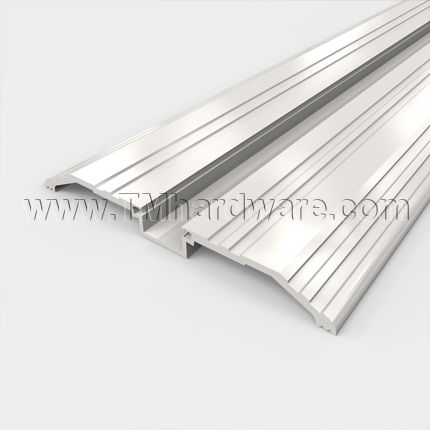

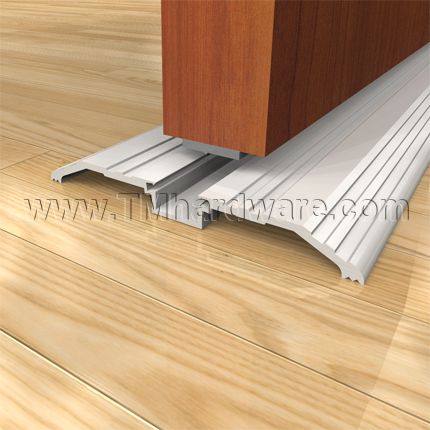

4. Aluminum, 5” Wide Threshold with Guide Channel (971A): Used in place of a bottom channel with all the benefits of a threshold. Please contact us to order.

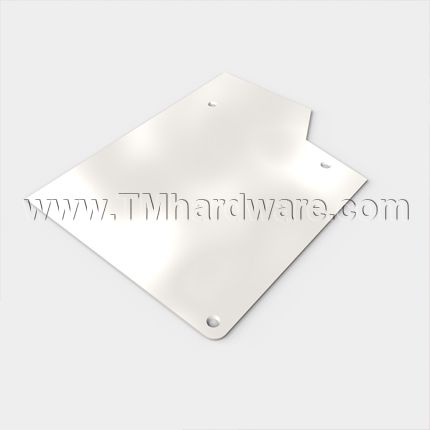

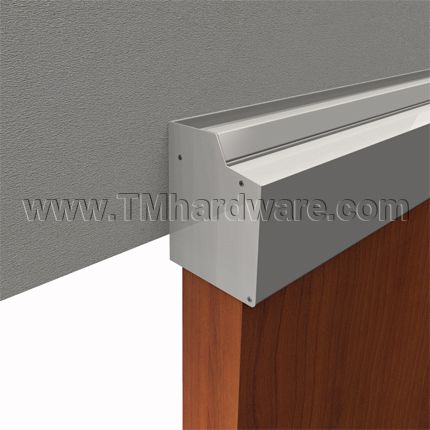

5. End Plate Kit (1077C-SWEP): Appropriate for sidewall mount only. For a neat, aesthetic finish, place end plates at both ends of installed side wall track and bracket to conceal track interior.
Click to Print Installation Guide.
