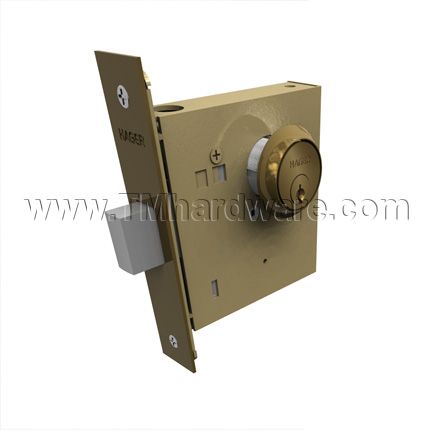

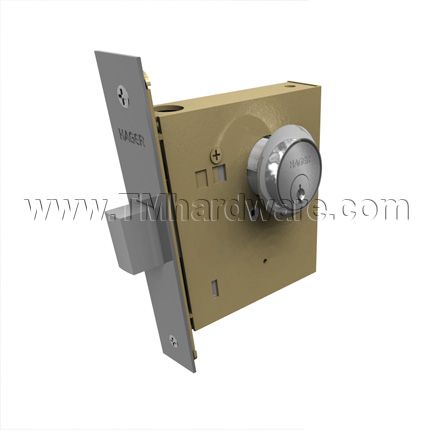

Hager 3800 Series Grade 1 Mortise Small Case Deadlock

Hager 3800 Series Grade 1 Mortise Small Case Deadlock is made of brass or stainless steel. This deadlock is heavy duty commercial, industrial and institutional and provides maximum security and durability for the harshest environments. With ease of installation, our 3800 Series lock provides great flexibility. What's more, it is ANSI certified Grade 1 Operational and Security, ADA compliant and backed by a lifetime warranty. Many functions, finishes and options available. See below for details and pricing.

PRICED PER SET - See full product details and specs in the tabs below



See tabs below for additional information
    • SKU
      HG3834S_US26D
    • Market price:$243.49
      • save 40%
    • Starting price: Price: $146.09 per set


    Click here to view Hager 3800 Series from Hager Full Line Catalog.

    Heavy duty commercial, industrial, institutional.

    ADA compliant lever designs.

    Self adjusting case for beveled doors.

    Stopworks are incorporated in thumbturn.

    1" throw stainless steel deadbolt.

    Heavy guage steel case zinc dichromate plated for corrosion resistance.

    Solid brass/stainless steel cylinder collar prevents wrenching.

    Non-handed stainless steel deadlocking bar.

    Fixed conventional or small format interchangeable housing cylinder.

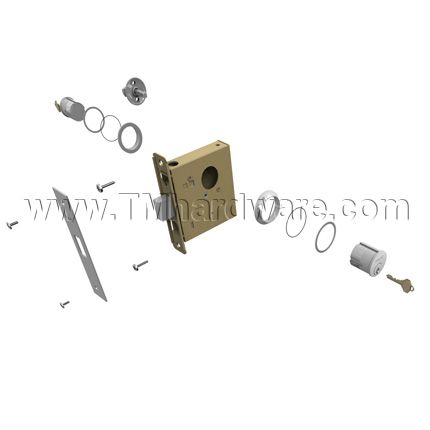

    Lock Is Comprised of:

    • Cylinder of your choice in exterior and interior finish of your choice
    • Backset-2-3/4"
    • Two operating keys-keyed different
    • Schlage C keyway
    • Drilled 6-pin, keyed 5-pin cylinder
    • Deadbolt
    • Square corner strike with dustbox
    • Door thickness of 1-3/8" to 2-1/2"

    Please note that these are the standard options available. For all other orders, call us at 845-388-1300.

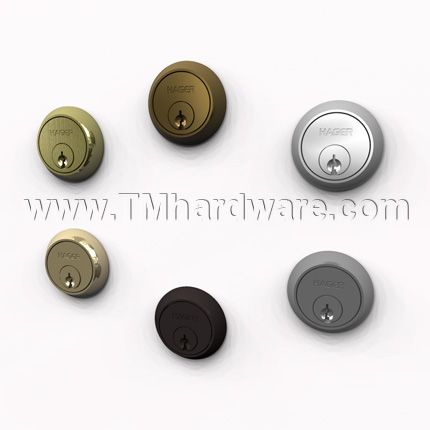

    Available Finishes: Bright Brass; Satin Brass; Satin Bronze; Antique Bronze Oiled; Bright Chromium Plated; Satin Chromium Plated (Finishes comply with BHMA codes. See Product Data Tab.)

    Option of split finish available: Lock can be purchased with one finish for the outside section of the lock and another for the inside.
     If the interior finish is the same as the exterior, select "Same as Exterior Finish". Otherwise, select the finish of your choice.

    Functions:

    • 3860-Cylinder x Thumbturn: Deadbolt is thrown or retracted by key outside or thumbturn inside.

    • 3831-Door Bolt:

    • 3862-Double Cylinder: Deadbolt is operated by a key from either side.

    • 3863-Classroom: Deadbolt is thrown or retracted by a key from the outside. Inside thumbturn cylinder retracts the deadbolt but cannot project it.

    • 3864-Cylinder: Deadbolt is thrown or retracted by a key from one side. No trim on the other side.

    Exposed Trim: Forged brass or cast stainless steel.

    Lock Case: 4-5/16" x 6" x 1"

    Armor Front: 1-1/4" x 8" x 7/32". Standard.
                           1-1/16" x 8" x 7/32". Optional. Available for order through our office only. Please call us at 845-388-1300.



    Keys: 2 operating keys supplied per lock.

    Keying Options: Available for order through our office only. Please call us at 845-388-1300.

    • Keyed alike-option for 3114-double cylinder function
    • MK-Master key
    • CMK-Construction master key
    • GMK-Grand master key
    • SK-Customer specified keying
    • "0" bitted cylinder
    • "1" bitted cylinder

    Note: For any master key options, this Master Keying Form must be filled out and faxed to us at 845-367-4657 or emailed to sales@tmhardware.com.

    Keyways: Standard keyway is Schlage C.

    Here are more keyway options available for order through our office only, at 845-388-1300.



    Cylinder Options:

    • Conventional cylinder
      • Brass, Drilled 6-pin, keyed 5-pin. Standard.
      • Brass, Drilled 6-pin, keyed 6-pin. Optional. Available through our office only, at 845-388-1300.
      • Schlage "L" cam. Standard.
    • Small Format Interchangeable Core Housing Option: The inner core, containing the keyway, is removable and changeable for security purposes. Say, a department store fires its manager. All the cores could be removed and changed, with new keys distributed to all its employees. This way, there is no worry that the previous manager has access to the offices. As an aside, the cores can than be sent to a locksmith for rekeying so that they could be used again.
      Note: Cores are not included with this option. To order Small Format Interchaneable Housing or Cores (SFIC) call us at 845-388-1300.

    Door Thickness:

    • 1-3/8"-2-1/2"- Steel Door.
    • 1-3/4"-2-1/2"-Wood Door.

    Backset: 2-3/4" Thick.

    Deadbolt: 1" throw-stainless steel

    Strikes: 3935 ASA 1-1/4" x 4-7/8", no lip.

    Note: Self-adjusting case for beveled doors.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Please see product specs tab for exact measurements. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    This product has a lifetime guarantee against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

    Click here to view all our Hager 3800 Zinc Mortise Sectional Lockset.

      • SKU
        HG3834S_US26D
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      3800S Deadlock
    • Function
      3830-Cylinder x Thumbturn, 3831-Door Bolt, 3832-Double Cylinder, 3833-Classroom, 3834-Cylinder
    • Finish
      Bright Brass - US3, Satin Brass - US4, Antique Bronze Oiled - US10B, Bright Chromium Plated - US26, Satin Chromium Plated - US26D

    Click to Print

    Please note that all other necessary templates will be included in your order.

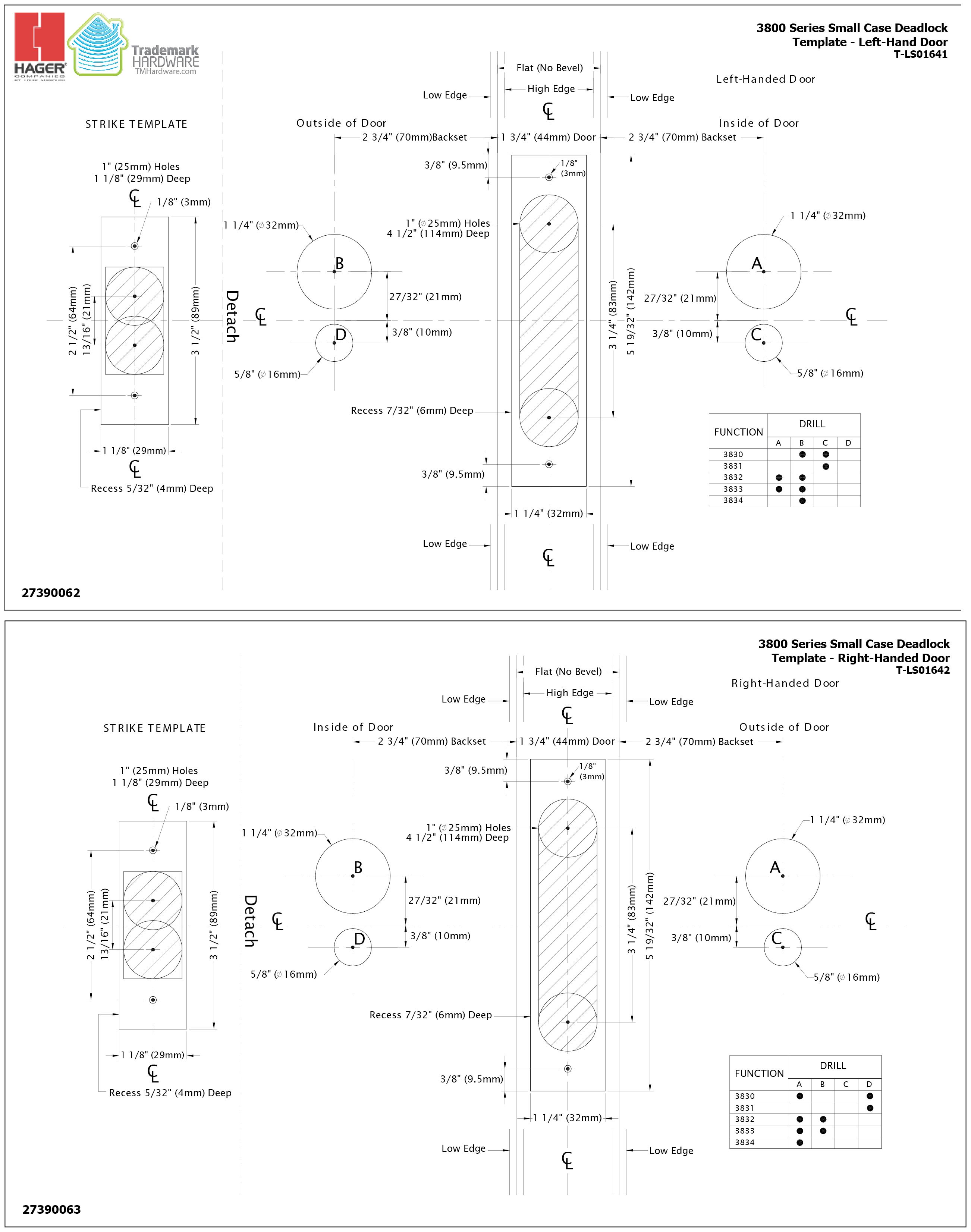

    3800 series small case deadlock template

    Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    *All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Bright Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Antique Bronze Oiled-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Satin Chromium Plated-US26D/626

    *Deadlock complies with ANSI A156.13 Series 1000 Grade 1 Operational and Security.

    *ANSI A250.13 Severe Storm Resistant Component.

    *UL/cUL listed for all functions up to 3 hours for "A" label single doors.

    *UL10C Positive Pressure Rated

    *UL10B Neutral Pressure Rated

    *ADA Compliant ANSI A117.1 Accessibility Code
