Hager 790-926 Continuous Hinge, Stainless Steel Concealed Leaf Swing Clear Action

Hager 790-926 is a Heavy-Duty, Concealed Leaf Stainless Steel Continuous Barrel Hinge which is mortised to the frame rabbet and edge of the door. Designed with a door edge protection lip and wrap around frame leaf design for doors  1 3/4" thick and up to 600 pounds. Compatible with doors of any material and is available in a choice of lengths and finishes.

PRICED PER PIECE - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      HG790-926_045597
    • Market price:$1,127.50
      • save 35%
    • Starting price: Price: $732.88 per item


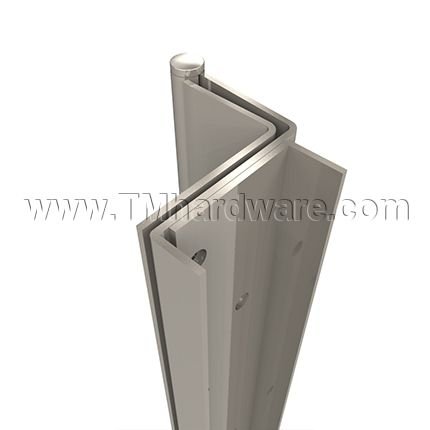

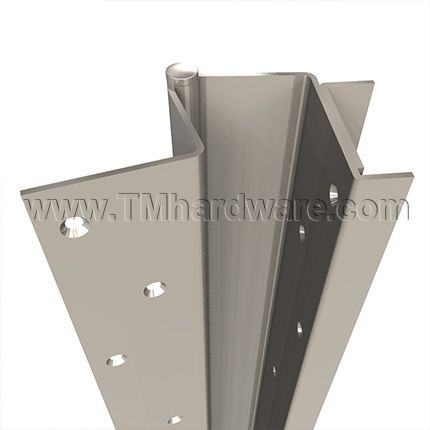

    Hager 790-926 Continuous Barrel Type, Stainless Steel Concealed Leaf Hinge with 'Swing Clear Action' for 1 3/4" doors by Hager companies.

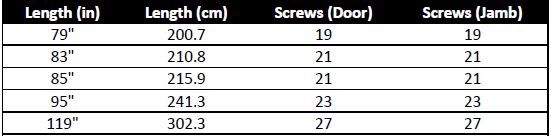

    • Available in five sizes: (chart)  For 119" Length, please contact us or call 845-388-1200 as Freight Shipping Charges may apply.

    Hager 790-926 Continuous Hinge Product Options

    • Security and Privacy: Eliminates the gap between the frame and door so doors cannot be pried open, offers privacy on hospital and toilet partitions.
    • Finish: Stainless steel continuous hinges are brushed to a satin finish (US32D). For custom color painted or powder coated finishes please contact our office at 845-388-1200 or contact us (Color samples are required for matching.)
    • Materials: Constructed from 14 Gauge Type 304 Stainless Steel with lubricated nylon 6/6 bearings between each knuckle and stainless steel pin. 1/4" diameter Stainless Steel Pin.
    • Features: Heavy-duty construction to support doors up to 600 pounds. Energy saving, creates a seal from the top to bottom of the door to prevent air infiltration and permanent weather barrier.

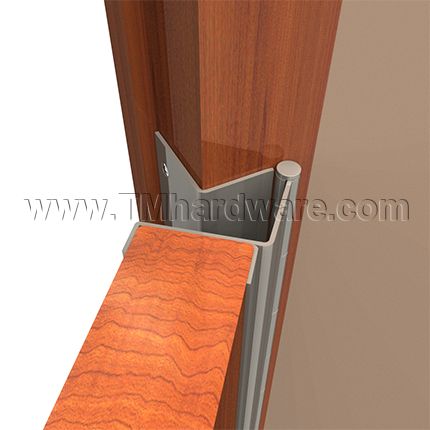

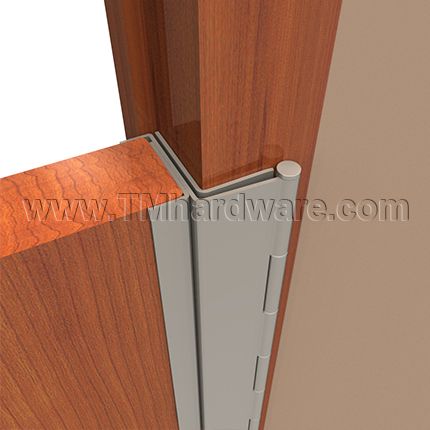

    • Design: Concealed leaf hinge for 1 3/4" thick doors with door edge protection lip (stop side only). Wrap around frame leaf design for easy installation and protection (see Product Data Tab.) Swing Clear Action for easy access.
    • Fasteners: #10-24 X 5/8" S/S Dril-Kwik (R) (metal frame)
                       #10-32 X 3/4" S/S machine (used with adjustment stud)
                       #7/16-20 X 1 3/8" S/S adjustment stud (metal/wood door)
    • Clearance: Minimum clearance between the hinge edge of the door and the frame is 9/32" plus standard lockside clearance.
    • Applications: Not recommended for doors with a beveled edge on the hinge side. Corrosion resistant for swimming pool buildings, sewage, water treatment plants and salt spray environment. Ideal for applications where doors and frames are subjected to severe abuse such as hospitals and institutions. Useful for ADA upgrade work.
    • Reinforcement: No door or frame reinforcement required up to 200 lbs. Heavier weight use 16-gauge channel. For metal doors, a 1-1/8" thick reinforcement plate is strongly recommended along the hinge edge for proper thread engagement of the adjustment studs.
    • Fire-Rating: Up to 3 hour metal and 90 min. wood composite (with studs).
    • Certification: ANSI A156.26 Grade 1 for 150 pound doors.
    • Additional Options:  Including security studs, specialty fasteners, hospital tip and customize hole patterns may be ordered, for details and pricing please contact us or call our office at 845-388-1300.
    • Installation: Installed either with or without reinforcements depending on door weight. Installation screws are provided (see Installation Tab.)
    • Priced per piece
    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click here to view our Hager 790-935 Continuous Hinge, Stainless Steel Half Surface Leaf Swing Clear Action.

    This product has a lifetime warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        HG790-926_045597
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      H790-926

    Product Specs:

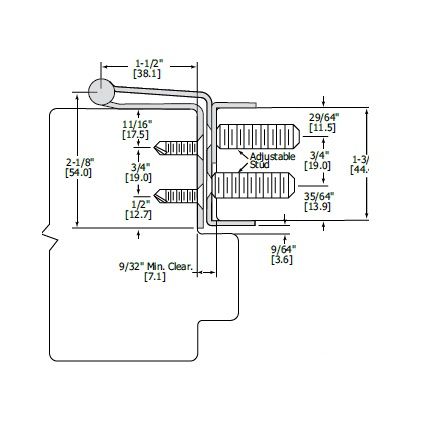

    Hager 790-926 Product Specs



    Click to print Hager 790-905 Continuous Hinge Installation Instructions.
    Hager Models 790-905 and 790-926 are Stainless Steel Continuous Edge Mount Hinges for 1 3/4" thick doors. They allow for minor lateral adjustment to the door after installation. Both models feature protective corner guards. Model 790-926 provides 'swing clear' rotation. Clearance required between the hinge edge of the door and the frame rabbet is 9/32" minimum. For metal doors, a 1/8" thick reinforcement plate is strongly recommended along the hinge edge for proper thread engagement of the doors that have electrical modifications such as through-wires (ETW) or power transfer devices (EPT).

    Hinge Length:

    All Hager Stainless Steel continuous Hinges are supplied 7/8" to 1" shorter than the nominal door height to avoid threshold or carpet clearance problems. If the hinge must be trimmed shorter, first determine the correct hand of the door and orientation of the hinge. Remove the bottom pin cap and trim from the bottom end of the hinge only to achieve the desired length - do not cut the top end. Undercut the pin 7/8" shorter for clearance and reinsert the bottom pin cap.

    General Fitting Procedure:

    • For new construction with metal doors/frames: To accommodate the 9/32" hinge clearance required for Hager Models 790-905 and 790-926 order the door undersized or the frame header oversized. See the clearance information above to attain the proper finished width required. A 1/8" thick reinforcement plate is strongly recommended along the hinge edge for proper thread engagement of the adjustment studs. The hinge edge of the door should not be beveled. Mortar guards, either styrofoam or wood, are recommended for frames to prevent grout from interfering with the installation of the hinge fasteners.
    • For new site-hung wood doors: If necessary, scribe and cut from the latch edge of the door to leave sufficient hinge stile thickness for proper fastening. A minimum clearance of 9/32" is required between the hinge edge of the door and the frame rabbet. Do not bevel the hinge edge of the door. See the clearance information above to attain the proper finished width of the door.
    • For remodeling with existing wood or laminate doors: If necessary, scribe and cut from the hinge edge of the door and plane smooth. A minimum clearance of 9/32" is required between the hinge edge of the door and the frame rabbet. Do not bevel the hinge edge of the door. See the clearance information above to attain the proper finished width of the door.

    Frame Preparation:

    1. With the hinge open, place the hinge frame leaf against the frame rabbet. Position the top of the hinge 1/8" below the header. Allow 1/16" between the frame stop and the edge of the hinge.

    2. Mark and center punch the screw hole locations. Accurate location is important for proper hinge installation.

    3. For metal frames 14 gauge or less, it is not necessary to pre-drill pilot holes fi using the self-drilling screws provided. For metal frames 12 gauge and over, drill and tap all mounting holes for #10-24 threads prior to installing the screws. For wood frames, pre-drill pilot holes using a #25 bit.

    4. Do not attach the hinge to the frame at this time.

    Door Preparation:

    1. With the hinge open, place the hinge door leaf against the edge of the door. Position the integral corner guard fully against the 'push' face of the door. Position the top of the hinge flush with the top of the door.

    2. Mark and center punch the screw hole locations. Accurate location is important for proper hinge installation.

    3. For wood doors, drill pilot holes using a Z bit to a minimum depth of 1 3/8". For reinforced metal doors, drill pilot holes using a 25/64" bit and tap for 7/16" - 20 threads.

    4. Using a 3/16" Allen wrench, screw a 7/16" Adjustment Stud into each hole. Insert each stud until it is flush with the edge of the door. The studs are designed for a tight friction fit in the holes so they will not turn when the mounting screws are being tightened. If the Adjustment Studs turn too freely, apply LOCTITETM (for threaded joints) to the stud's external threads during installation.

    Hanging the Door:

    1. Place the separate Protective Corner Guard component into position on the door edge and fully against the 'pull' face of the door. Place the hinge door leaf over it making certain the integral corner guard is fully against the 'push' face of the door. Install a #10 machine screw in the top two and bottom two hole locations only and fully tighten. Do not install the remaining screws in the door leaf at this time.

    2. Position the door (with hinge attached) at 90 degrees to the frame. Attach the hinge to the frame rabbet. For metal frames, use the #10 self-drilling screws provided (recommended driver speed 1,900-2,500 RPM). For wood frames, use the #10 wood screws.

    3. Make a gentle trial swing. Carefully check for proper swing and door clearances.

    Adjusting the Door:

    1. If lateral adjustment of the door is required due to excessive or uneven door/frame clearance, make adjustments using either the top two and/or bottom two screws installed in the door. It is not necessary to remove the hinge from the door to make adjustment.

    2. Remove one of the two screws and insert a 3/16" Allen wrench through the hole into the Adjustment Stud. It may be necessary to slightly loosen the second screw while rotating the Adjustment Stud outward to the desired position. Then adjust the second Stud in the same manner. Re-insert and tighten the #10 machine screws when complete.

    3. Make any necessary adjustments at the other end of the hinge in the above manner until the proper door fit is achieved.

    4. Using a 3/16" Allen wrench, adjust all remaining studs until each rests against the back of the hinge leaf.

    5. Install #10 machine screws into all remaining holes and tighten.

    6. Make a gentle trial swing. Carefully check for proper swing and door clearances.
