Hager 920, Plain Bearing, Steel, Standard Weight, 2 Knuckle, Full Mortise Hinge, All Sizes

Hager 920 Full Mortised, Plain Bearing, Standard Weight Architectural Hinge. Standard weight for use with medium weight doors or doors requiring medium frequency service. Available in two sizes and many finishes.

PRICED PER PIECE - See full product details and specs in the tabs below



Minimum purchase quantity: 2 units
See tabs below for additional information
    • SKU
      HG920-4.5x4-LH-USP
    • Market price:$17.08
      • save 50%
    • Starting price: Price: $8.54 per item


    Hager 920 Full Mortised, Plain Bearing, Standard Weight Architectural Hinge. Standard weight for use with medium weight doors or doors requiring medium frequency service.

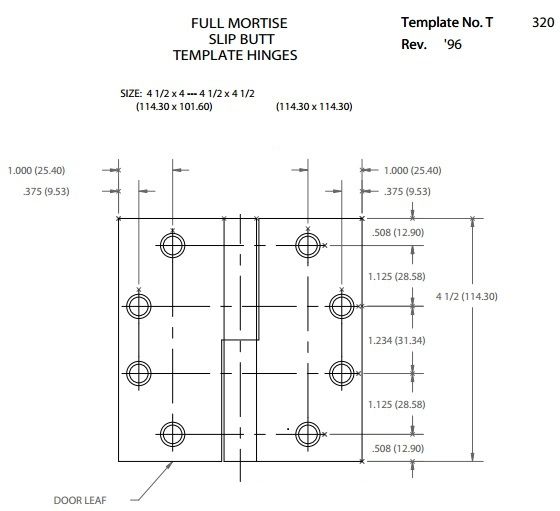

    Available sizes:

    Hinge SizeGauge of MetalHole CountScrew Size
       Inches   mm       Machine    Wood
       4-1/2" x 4"   114 x 102    0.134   8   1/2 x 12-24   1-1/4 x 12
       4-1/2" x 4-1/2"   114 x 114    0.134   8   1/2 x 12-24   1-1/4 x 12

    Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

    Custom Finishes: For details and pricing please contact us or call us at 845-388-1300.

    Handing: This hinge is handed, please select required handing from options above. Click here to view How to Determine Door Handing.

    Priced per piece

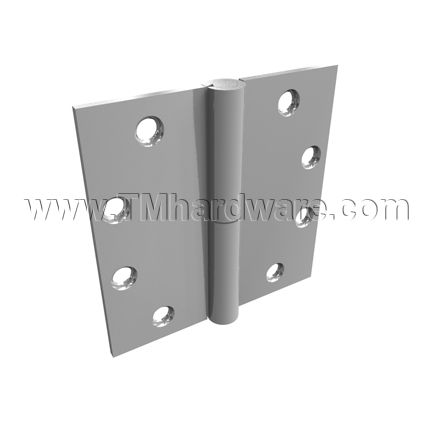

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in workmanship and material.
     Click to view our Full Warranty Policy.

    Click here to view our Hager AB920 Concealed Anti-Friction Bearing Two Knuckle Hinge of Standard Weight.

      • SKU
        HG920-4.5x4-LH-USP
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      920
    • Handing
      Left Handed, Right Handed
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Steel
      • Usage Level
        Standard Duty
      • Throw
        Standard Throw
      • Bearing Type
        Plain Bearing
      • Knuckles
        2 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        4-1/2" x 4", 4-1/2" x 4-1/2"
      • Hinge Thickness
        .134" Thick
    • Installation
      • Door Type
        Metal Door, Wooden Door
      • Installation Screws
        Installation Screws Provided Accordingly:
        4-1/2" Hinge: All metal screws and half wood screws
        3-1/2" Hinge: All wood screws and half metal screws
        4" Hinge: All wood screws and half metal screws
        5" Hinge: All metal screws and half wood screws
        Additional screw packs can be provided if listed in order comments before completing purchase.
    • Finishes
      • Finish
        Prime Coat (USP), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Satin Chrome (US26D)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        A8133, A156.18
      • Warranty
        3 Year Limited Warranty

    Hinge complies with ANSI A8133.
