Hager AB7505, Concealed Anti-Friction Bearing, Steel, Heavy Weight, 3 Knuckle, Anchor Hinge with 1 Anchor Leaf

Hager AB7505, Concealed Anti-Friction Bearing, Steel, Heavy Weight, 3 Knuckle, Anchor Hinge with 1 Anchor Leaf
Flush Pin and Plug
0.0

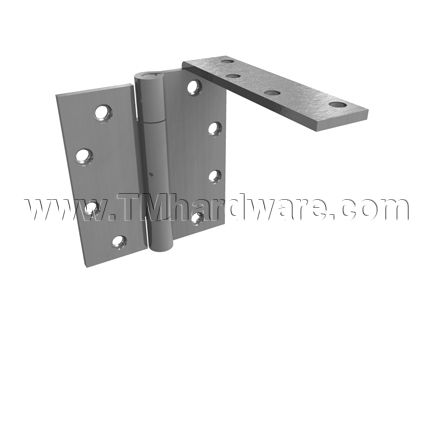

Full Mortise architectural anchor hinge with three knuckles, by Hager Companies. Concealed anti-friction bearing and heavy weight for use on heavy weight doors receiving high frequency service. Size of hinge is 5" x 4-1/2" and there are a variety of finishes available.

PRICED PER PIECE - See full product details and specs in the tabs below

See Hager Hinges Color Chart for a detailed list of Hager finishes.

Market price: $325.45
save 50%
Price: $162.73
Finish
Handing
Options
Qty
Save to wishlist
Made in USA
SKU HAB7505_13659
Size 5" x 4-1/2"
Options Left Handed, Right Handed, Non-Removable Pin
Shipping See Shipping Tab Below
Description

 This commercial grade Architectural hinge, by Hager Companies, is a full mortise anchor hinge. It is a three knuckle, concealed anti-friction bearing hinge and heavy weight.

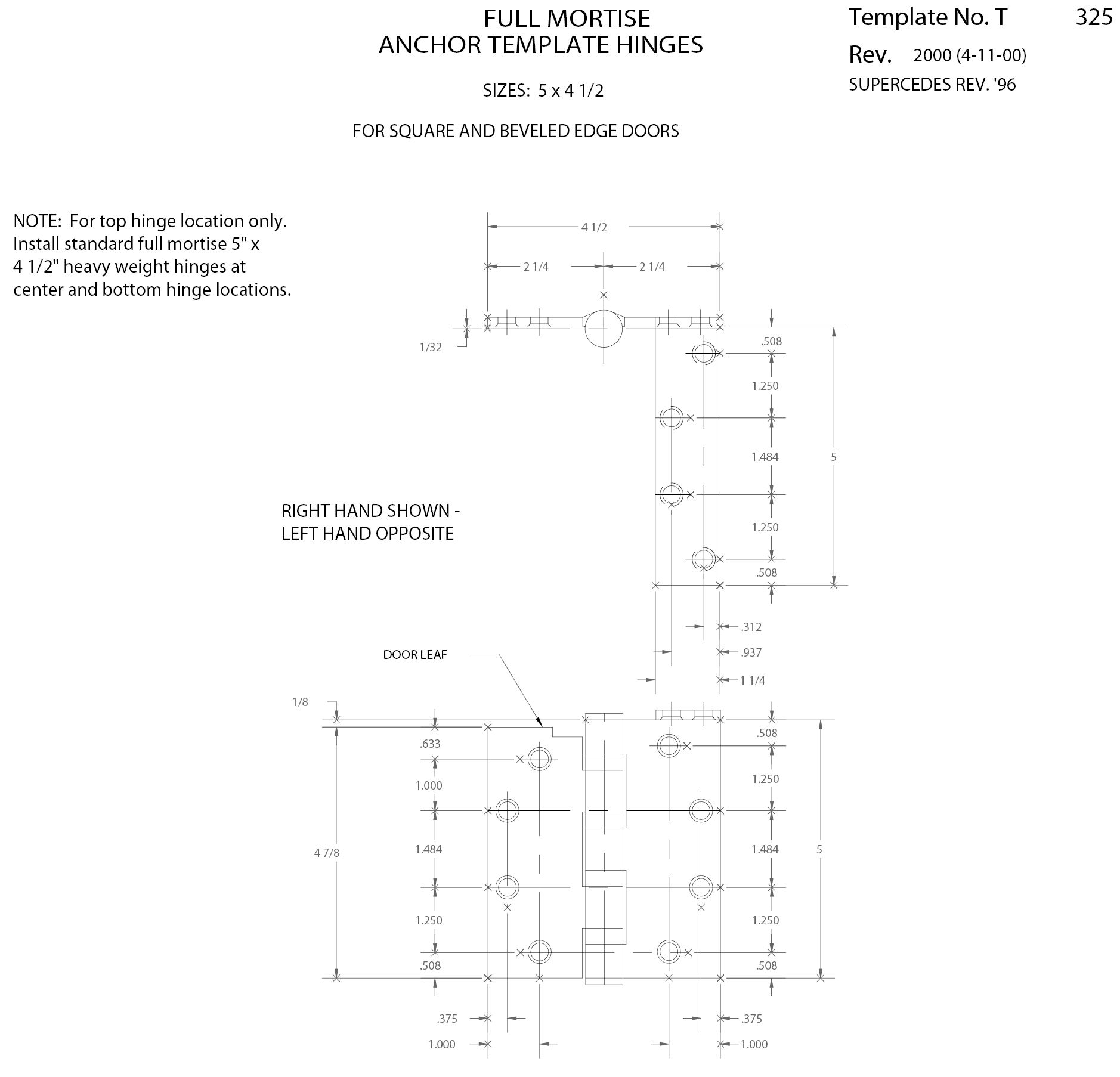

  • Anchor Hinge with One Anchor Leaf: This hinge is placed at the very top of the door with the extra leaf screwed to the frame. This way the stress of an overly heavy door is not solely supported by the door jamb and is spread to the horizontal surfaces, thus "anchoring" the door.

  • It is the perfect product for your heavy weight doors receiving high frequency service.

  • Must be used with one pair heavy weight, full mortise hinges (AB750 or AB850)-sold separately.

  • Hinge Size: 5" x 4-1/2" (chart)

Hinge Size Gauge of Metal
Hole
Count
Screw Size
  Inches   mm       Machine   Wood
  5" x 4-1/2"    127 x 114    0.190    12  1/2 x 12-24   1-1/4 x 12
  • Variety of finishes available for all sizes:  Prime Coat; Satin Bronze, Antique Bronze Lacquered, Antique Bronze Oiled, Satin Chromium Plated (Finishes comply with BHMA Codes, see Compliance Tab).

  • Materials: Steel hinge and pin.

  • Non-removable pin (NRP). Pins which have a groove milled into them. A set screw is inserted through the middle knuckle into the groove. This way the pin, hinge and door cannot be removed by burglars and the like. Pin and plug are flush with each other.

  • Option of Non-removable pin (NRP). Pins which have a groove milled into them. A set screw is inserted through the middle knuckle into the groove. This way the pin, hinge and door cannot be removed by burglars and the like.

  • Handed: This hinge is available for right handed or left handed doors, specify when ordering. Click here to learn How to Determine Handing.

  • Custom colors available. For details and pricing please contact us or call us at 845-388-1300.

  • Installation screws provided.

  • Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a lifetime guarantee against defects in workmanship and materials.

Click here to view all our Hager Hinges.

To view all hinges in this category, see How to Choose a 3 Knuckle Anchor Hinge.

Product Specs
Compliance Details

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard A156.18:

  • Prime Coat-USP
  • Satin Bronze-US10
  • Antique Bronze Laquered-US10A
  • Antique Bronze Oiled-US10B
  • Satin Chromium Plated-US26D

Hinge complies with ANSI A8511.

Shipping / Returns
  • Ship Time:
    • This item is made to order and requires a lead time of 2-4 weeks.
    • If in stock, expedite options are available and will ship within 2-5 days. Please call to confirm stock and expediting options.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • These items are non-returnable.
    • We are commited to your satisfaction. As a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
