Hager AB923, Concealed Anti-Friction Bearing, Brass or Stainless Steel, Heavy Weight, 2 Knuckle, Full Mortise Hinge, All Sizes
Hager AB923 Full Mortised, 2-Knuckle, Concealed Anti-Friction Bearing, Standard Weight Architectural Hinge. Standard weight for use with medium weight door or doors of medium frequency service. Brass or Stainless Steel Base with stainless steel pin. Available in two sizes and many finishes.
PRICED PER PIECE - See full product details and specs in the tabs below
Hager AB923 Full Mortised, 2-Knuckle, Concealed Anti-Friction Bearing, Standard Weight Architectural Hinge. Standard weight for use with medium weight door or doors of medium frequency service.Â
Available sizes:
Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
 Inches |  mm   |  Machine |  Wood | ||
  4-1/2" x 4" |  114 x 102 |   0.134 |  8 |  1/2 x 12-24 |  1-1/4 x 12 |
 4 1/2" x 4 1/2" |  114 x 114 |   0.134 |  8 |  1/2 x 12-24 |  1-1/4 x 12 |
Handing: This hinge is handed, please select required handing from options above. Click here to view How to Determine Door Handing.
Custom colors available. For details and pricing please contact us or call us at 845-388-1300.
Priced per piece

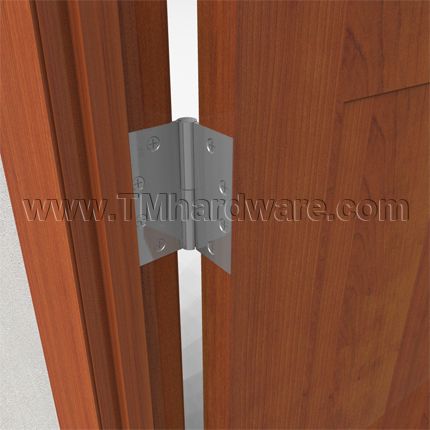

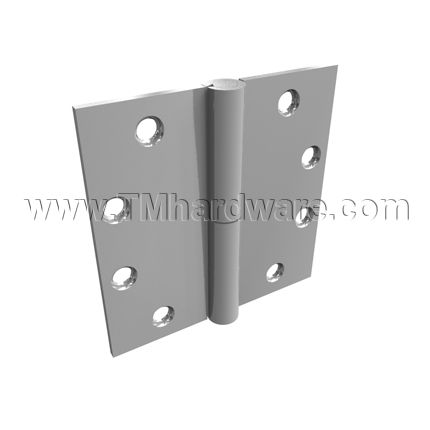

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in workmanship and materials.
 Click to view our Full Warranty Policy.
Click here to view our Concealed Anti-Friction Bearing, Two Knuckle Hinge of Heavy Weight - Hager AB930.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNAB923
-
HandingLeft Handed, Right Handed
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialBrass, Stainless Steel
-
Usage LevelHeavy Duty
-
ThrowStandard Throw
-
Bearing TypeConcealed Anti-Friction
-
Knuckles2 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-

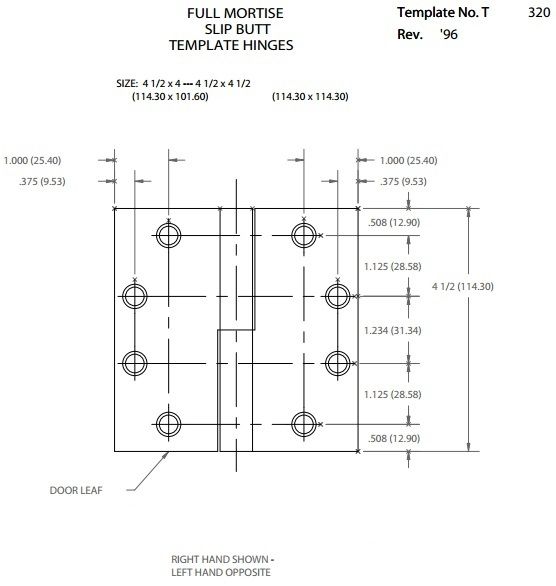

Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-
Hinge Size4-1/2" x 4", 4-1/2" x 4-1/2"
-
Hinge Thickness.134" Thick
-
- Installation
-
Door TypeWooden Door, Metal Door
-
Installation ScrewsInstallation Screws Provided Accordingly:
4-1/2" Hinge: All metal screws and half wood screws
3-1/2" Hinge: All wood screws and half metal screws
4" Hinge: All wood screws and half metal screws
5" Hinge: All metal screws and half wood screws
Additional screw packs can be provided if listed in order comments before completing purchase.
-
- Finishes
-

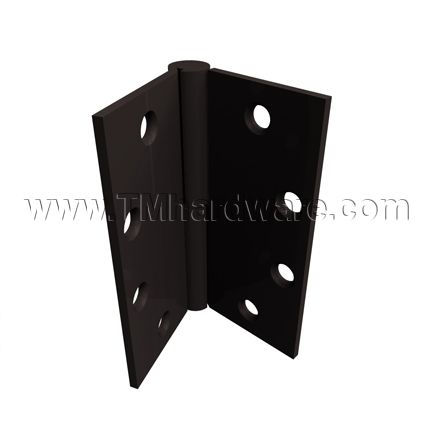

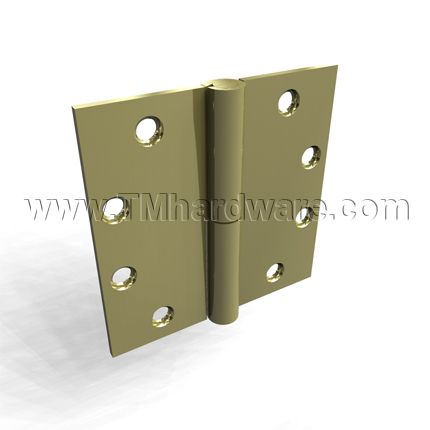

FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA2112, A5112, A156.18
-
Warranty3 Year Limited Warranty
-
