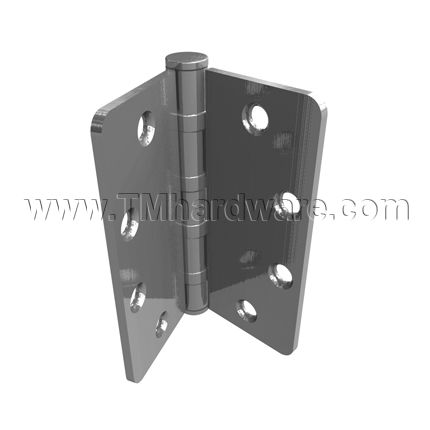

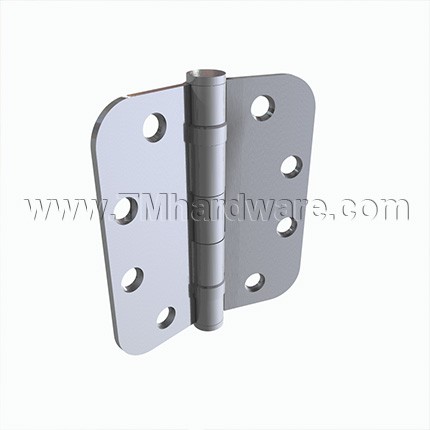

Hager ECRCBB1100, 4" x 4", 2 Ball Bearing, Steel, 5 Knuckle, Full Mortised, 1/4" Radius ECCO Hinge
Full Mortised Architectural five knuckle two ball bearing hinge with round corners, by Hager Companies. Standard weight for use with medium weight doors and doors requiring medium frequency service. Steel with steel pin. Hinge size 4" x 4" is available in selection finishes.
PRICED PER ITEM
Sold per piece in quantities of 3.
Full Mortised Architectural five knuckle two ball bearing hinge with round corners, by Hager Companies. Standard weight for use with medium weight doors and doors requiring medium frequency service. This hinge is part of Hager ECCO line which is of lower price and quality than the standard USA line.
Hinge size:Â 4" x 4"Â

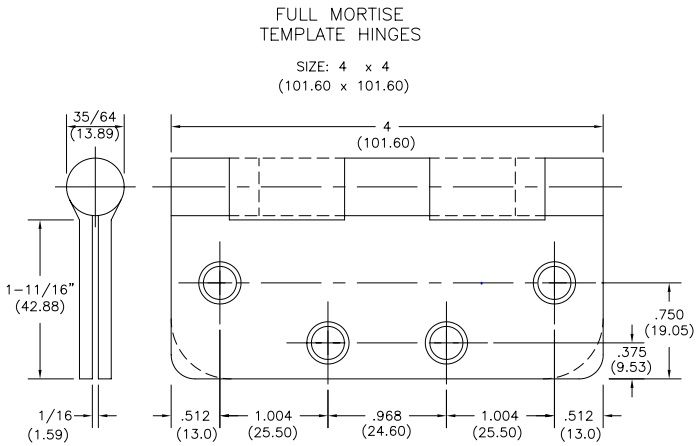

Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
 Inches |  mm   |  Machine |  Wood | ||
 4" x 4" |  102 x 102 |  0.134 |  8 |  1/2 x 12-24 |  1-1/4 x 12 |
Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.
Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable, which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. Contains button tip and plug.
Priced per piece
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in workmanship and materials.
 Click here to view our Full Warranty Policy.
Click here to view our Hager ECRC1100 Plain Bearing ECCO Hinge With Round Corners.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNECRCBB1100
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialSteel
-
Usage LevelHeavy Duty
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge Corner1/4" Radius Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-
Hinge Size4" x 4"
-
Hinge Thickness.134" Thick
-
- Installation
-

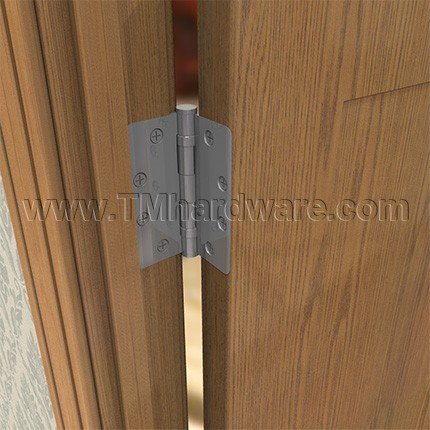

Door TypeWooden Door, Metal Door
-
Installation ScrewsInstallation Screws Provided Accordingly:
4" Hinge: All wood screws and half metal screws
Additional screw packs can be provided if listed in order comments before completing purchase.
-
- Finishes
-
FinishSatin Nickel (US15), Satin Chrome (US26D), Polished Chrome (US26)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA8133, A156.18
-
Warranty1 Year Limited Warranty
-
