Hager ECRC1100, 4" x 4", Plain Bearing, Steel, 5 Knuckle, Full Mortised, 1/4" Radius ECCO Hinge
Hager ECRC1100 Full Mortised, Five Knuckle, Plain Bearing Architectural Hinge, with 1/4" Round Corners of the Hager ECCO Series. Standard weight for use with medium weight doors and doors of low frequency service. Hinge made of steel with steel pin. Hinge size is 4" x 4" and a variety of finishes available.
PRICED PER ITEM
Sold per piece in quantities of 3.
Hager ECRC1100 Full Mortised, Five Knuckle, Plain Bearing Architectural Hinge, with 1/4" Round Corners. Standard weight for use with medium weight doors and doors of low frequency service. Hinge made of steel with steel pin. This hinge is part of Hager ECCO line which is of lower price and quality than the standard USA line.
Hinge size:Â 4" x 4" Â

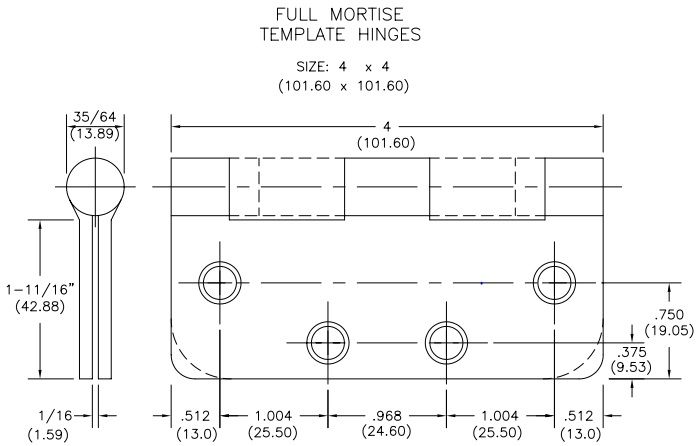

Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
 Inches |  mm   |  Machine |  Wood | ||
 4" x 4" |  102 x 102 |  0.129 |  8 |  1/2 x 12-24 |  1-1/4 x 12 |
Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

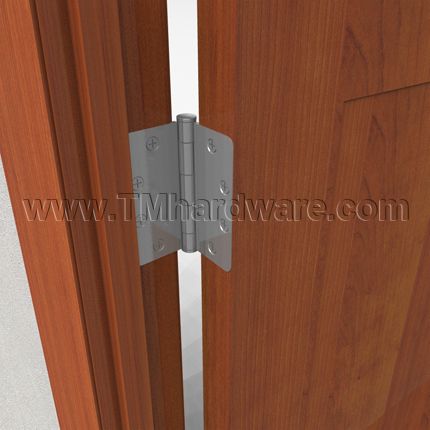

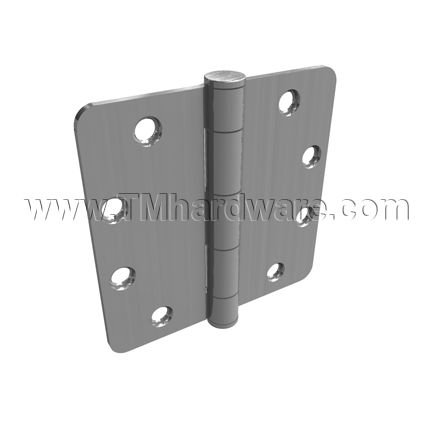

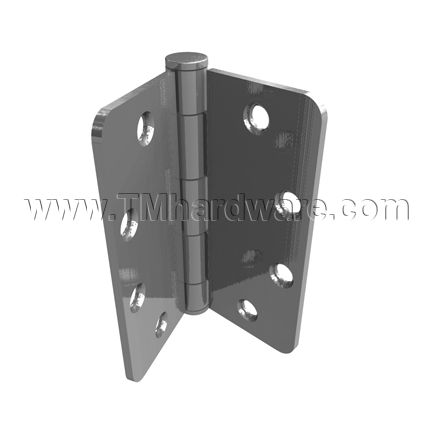

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in workmanship and materials.
 Click here to view our Full Warranty Policy.
Click here to view our Hager ECBB1100 Ball Bearing ECCO Hinge of Standard Weight and Steel.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNECRC1100
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialSteel
-
Usage LevelStandard Duty
-
ThrowStandard Throw
-
Bearing TypePlain Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge Corner1/4" Radius Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-
Hinge Size4" x 4"
-
Hinge Thickness.129" Thick
-
- Installation
-
Door TypeWooden Door, Metal Door
-
Installation ScrewsInstallation Screws Provided Accordingly:
4" Hinge: All wood screws and half metal screws
Additional screw packs can be provided if listed in order comments before completing purchase.
-
- Finishes
-
FinishSatin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA8133, A156.18
-
Warranty1 Year Limited Warranty
-
