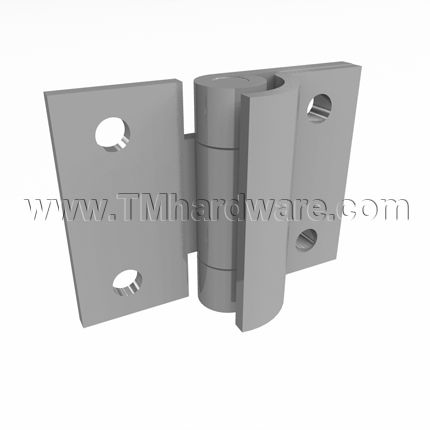

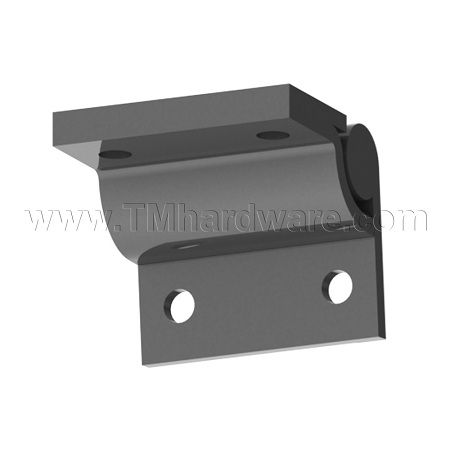

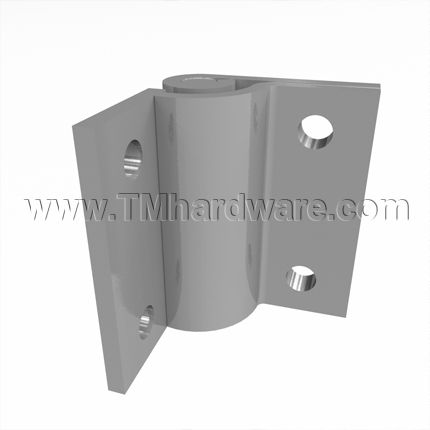

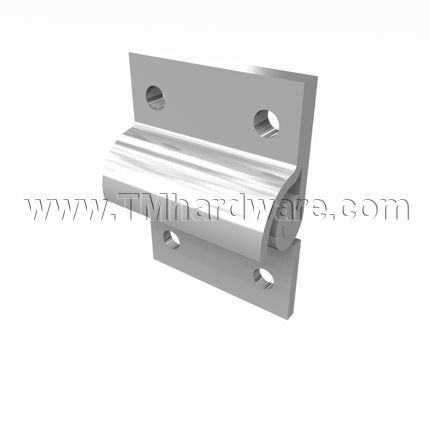

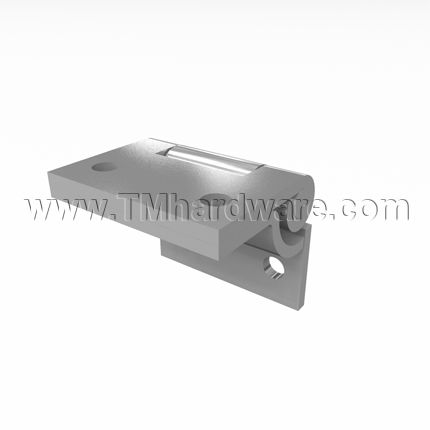

Hager Architectural, Full Surface, Heavy Weight, Prison Pass Through Hinge With Stop, Sold in Pairs

Pair of Full Surface Architectural Heavy Weight, Pass Through Prison Hinges with Two Stops, by Hager Companies. Plain bearing, steel hinge with steel pin. Available in size 3" x 4" with Prime Coat finish.

PRICED PER PAIR

See Hager Hinges Color Chart for a detailed list of Hager finishes.

See tabs below for additional information
    • SKU
      HG992
    • Market price:$481.79
      • save 50%
    • Starting price: Price: $240.90 per set

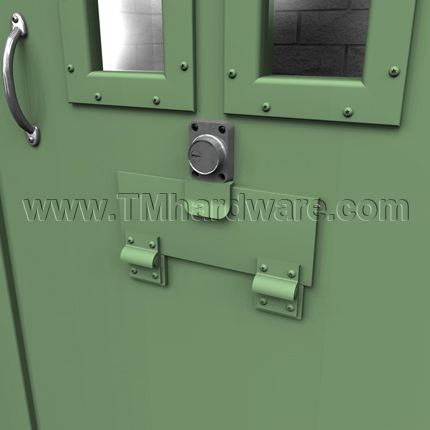

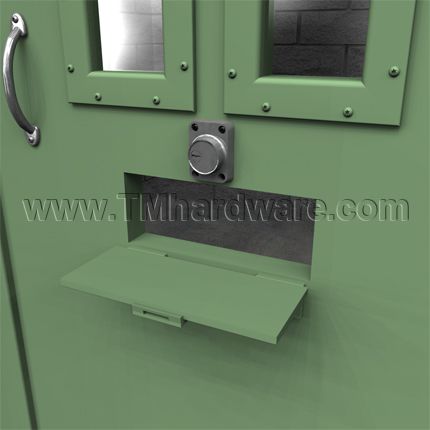

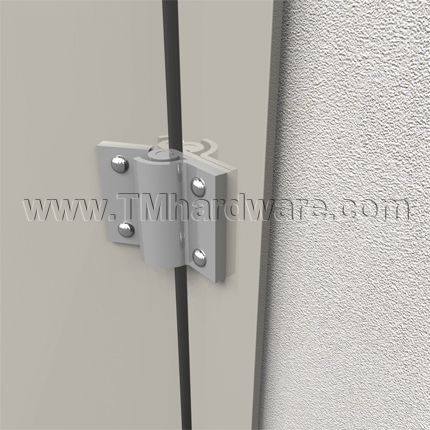

    This heavy duty Architectural hinge, by Hager Companies, is a Full Surface, Heavy Weight Pass Through Prison Hinge with Stop. It is the perfect product for your high security centers such as prisons and psychiatric areas. It is typically for use on food pass doors which form a shelf when opened to its fullest. This hinge is for use on small doors, access doors and observation shutters. Two hinges will support 150 lbs.

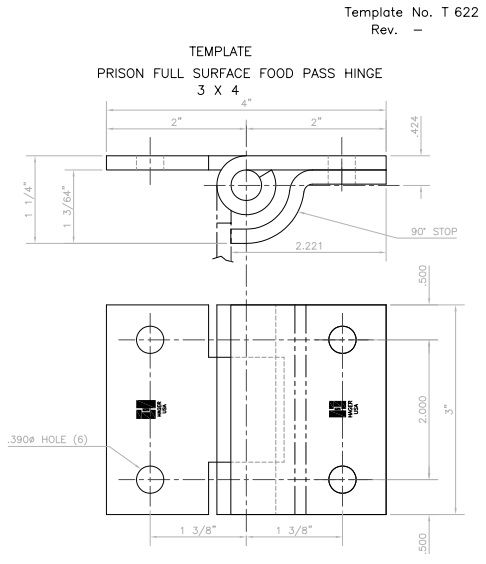

    Hinge size:

    Hinge SizePin Diameter Gauge of Metal     Hole CountMachine
      Screw Size
      Inches  mm      Inches  mm
      3" x 4"         78 x 102      0.437    11      0.203  4  1 x #16-3/8  Torx

    Custom colors available. For details and pricing please contact us or call us at 845-388-1300.

    Welded Pin. This hinge features a welded pin for security purposes. Welding eliminates the possibility of taking the hinge apart to remove the door, making it impossible to exit by those means.

    This hinge features a torx button head bolt.

    Priced per pair-2 hinges with 2 stops.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in workmanship and materials.

    Click here to view our Full Surface Heavy Weight Prison Utility Hinge

      • SKU
        HG992
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      992
    • Product Design
      • Hinge Category
        Detention Hinge, Full Surface Welding Hinge
      • Base Material
        Steel
      • Usage Level
        Standard Duty
      • Throw
        Standard Throw
      • Bearing Type
        Plain Bearing
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Number of Holes
        4 Holes
    • Dimensions
      • Hinge Size
        3" x 4"
      • Hinge Thickness
        .437" Thick
    • Installation
      • Door Type
        Small Doors
      • Installation Screws
        Installation screws provided.

    • Finishes
      • Finish
        Prime Coat (USP)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        A8383
      • Warranty
        3 Year Limited Warranty
