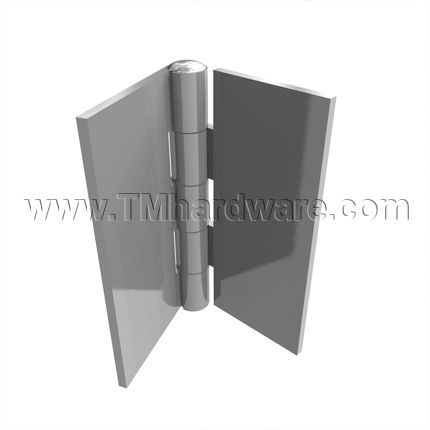

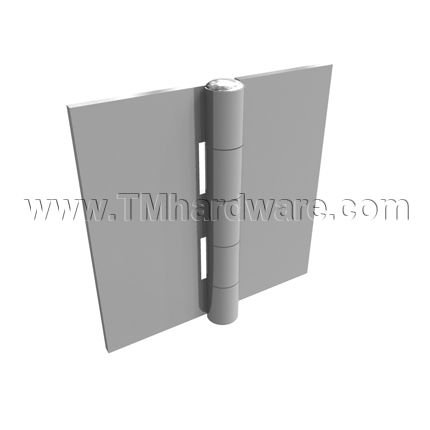

Hager 1850 Welding Hinge, Plain Bearing, Steel, Heavy Weight, 5 Knuckle, Full Surface, 4" - 6"

Hager 1850 Welding Hinge, Plain Bearing, Steel, Heavy Weight, 5 Knuckle, Full Surface, 4" - 6"
Hager Companies

Full Surface Architectural, welding hinge with five knuckles. Heavy weight and made of steel. Plain steel is the only finish available for this hinge. Variety of sizes available.

PRICED PER PIECE - See full product details and specs in the tabs below

See Hager Hinges Color Chart for a detailed list of Hager finishes.

See tabs below for additional information
    • SKU
      HG1850-4x4-USP
    • Market price:$73.41
      • save 50%
    • Starting price: Price: $36.71 per item

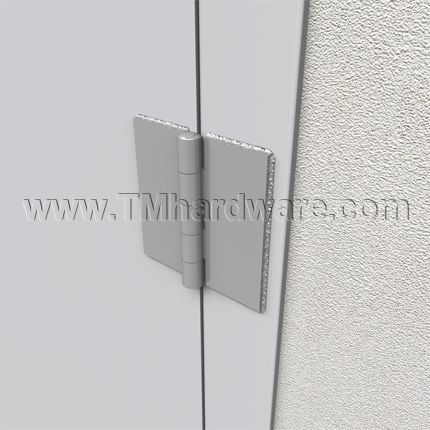

    This high quality Architectural hinge, by Hager Companies, is a full surface welding hinge. It is a five knuckle, plain bearing hinge and heavy weight. It is manufactured without holes and can easily be welded onto gates, dumpsters and industrial applications such as bins or warehouse doors.

    Available sizes:

    Hinge SizeGauge of Metal
    Pin
    Diameter
    Recommended Max Door Weight (lbs)
      Door
    Thickness
    		Max Door Width
      Inches
      mm
      4" x 4"
    		  102 x 102  0.179  0.312  150  1-3/8" to 1-3/4"  36"
      4-1/2" x 4-1/2"  114 x 114  0.179  0.322  150  1-3/4" to 2"  36"
      5" x 5"  127 x 127  0.179  0.322  175  1-3/4" to 2-2/12"  42"
      6" x 6"  152 x 152  0.203  0.500  230  1-3/4" to 2-1/2"  48"

    Reversible. This hinge can be used for a right handed or left handed door. Simply turn the hinge over, not necessary to remove and replace the hinge pin.

    Custom colors available. For details and pricing please contact us or call us at 845-388-1300.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a lifetime guarantee against defects in workmanship and materials.

    Click here to view our Two Ball Bearing Steel Standard Weight Full Surface Hinge.

      • SKU
        HG1850-4x4-USP
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      1850
    • Product Design
      • Hinge Category
        Full Surface Welding Hinge
      • Base Material
        Steel
      • Usage Level
        Heavy Duty
      • Throw
        Standard Throw
      • Bearing Type
        Plain Bearing
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Number of Holes
        No Holes
      • Swaging
        No Swage
    • Dimensions
      • Hinge Size
        4" x 4", 4-1/2" x 4-1/2", 5" x 5", 6" x 6"
      • Hinge Thickness
        See Dimensions Chart
    • Installation
      • Installation Screws
        Provided.
    • Finishes
      • Finish
        Prime Coat (USP)
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty
