Hager BB1195 - BB1197, Ball Bearing, Brass or Stainless Steel, Heavy Weight, 5 Knuckle, Anchor Hinge with 2 Anchor Leaves

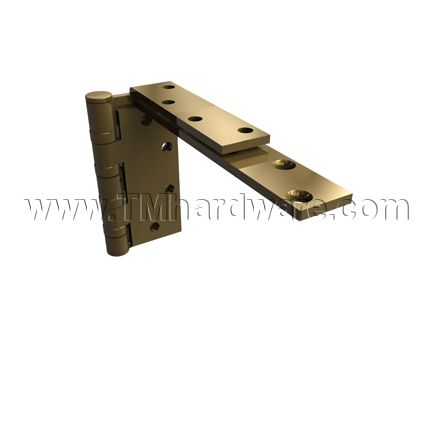

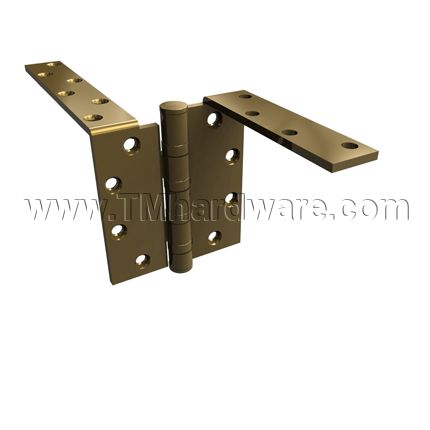

Full Mortise architectural anchor hinge with two anchor leaves and five knuckles, by Hager Companies. Hinge has four ball bearings and is heavy weight for use on heavy weight doors receiving high frequency service and using concealed door closer. Brass or stainless steel with stainless steel pin. Size of hinge is 5" x 4-1/2" and there are a variety of finishes available.
PRICED PER PIECE - See full product details and specs in the tabs below
See Hager Hinges Color Chart for a detailed list of Hager finishes.

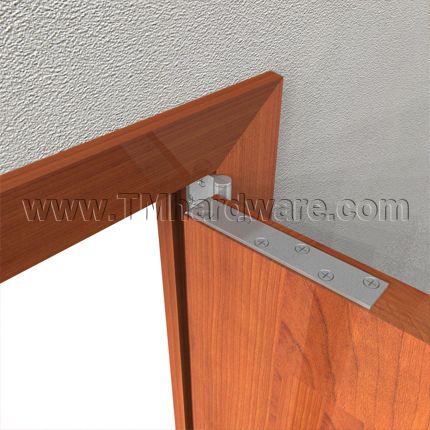

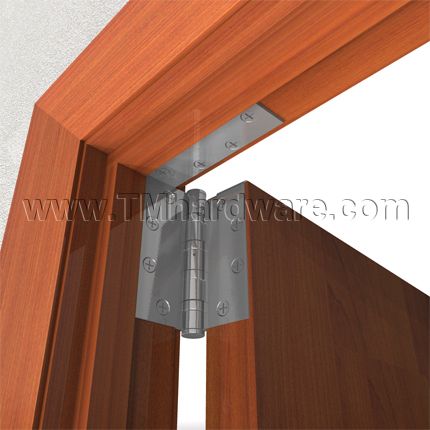

This commercial grade Architectural hinge, by Hager Companies, is a full mortise anchor hinge with one anchor leaf screwed to the frame and one to the top of the door. It is a five knuckle, ball bearing hinge and heavy weight.  HBB1165 is for square edge doors. HBB1167 is for beveled edge doors.
Must be used with one pair heavy weight, full mortise hinges (BB1168Â or BB1199)-sold separately.
Hinge Size: 5" x 4-1/2"
Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
 Inches |  mm   |  Machine |  Wood | ||
 5" x 4-1/2" |  127 x 114 |  0.190 |  15 |  1/2 x 12-24 |  1-1/4 x 12 |
- Non-removable pin (NRP). Pins which have a groove milled into them. A set screw is inserted through the middle knuckle into the groove. This way the pin, hinge and door cannot be removed by burglars and the like. Button tip and plug
- Handed:Â This hinge is available for right handed or left handed doors, specify when ordering. Click here to learn How to Determine Handing.
- Custom colors available. For details and pricing please contact us or call us at 845-388-1300.Â
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product data tab for exact measurements.
This product has a lifetime guarantee against defects in workmanship and materials.
Click here to view a Bright Stainless Steel Hinge.
To view all hinges in this category, see How to Choose a 5 Knuckle Anchor Hinge.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNBB1195/BB1197
-
HandingLeft Handed, Right Handed
-
Door Edge TypeSquare Edge Doors, Beveled Edge Doors
- Product Design
-
Hinge CategoryAnchor Hinge, Full Mortised Hinge
-
Base MaterialBrass, Stainless Steel
-
Usage LevelExtra Heavy Duty
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes15 Holes
-
- Dimensions
-
Hinge Size5" x 4-1/2"
-
Hinge Thickness.190" Thick
-
- Installation
-
Installation ScrewsInstallation screws provided.
-
- Finishes
-
FinishSatin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Chrome (US26D), Satin Stainless Steel (US32D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA2511, A5511, A156.18
-
WarrantyLifetime Limited Warranty
-
Click to Print BB1195 Template-Square Edge Doors
Click to Print BB1197 Template-Beveled Edge Doors
Â
Square Edge Door Template. See above for beveled edge door template.
