Hager BB1196, Ball Bearing, Brass or Stainless Steel, Heavy Weight, 5 Knuckle, Anchor Hinge with 2 Anchor Leaves

Hager BB1196, Ball Bearing, Brass or Stainless Steel, Heavy Weight, 5 Knuckle, Anchor Hinge with 2 Anchor Leaves
Hager Companies

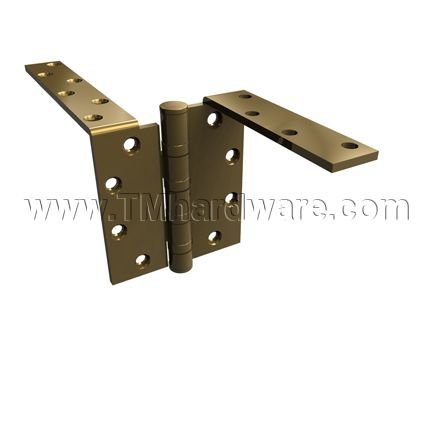

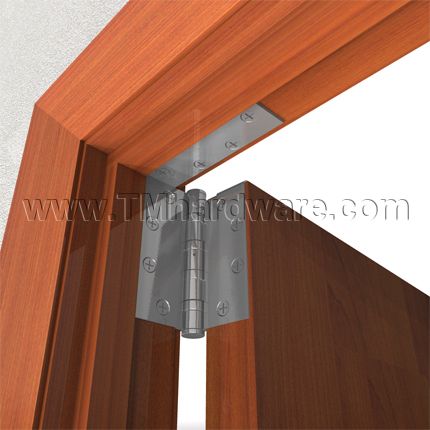

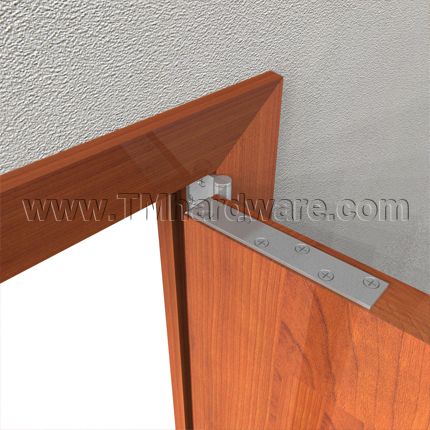

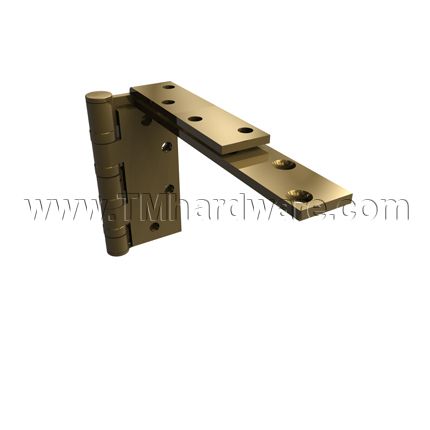

Full Mortise architectural anchor hinge with two extension leaves and five knuckles, by Hager Companies. Hinge is four ball bearing and heavy weight for use on heavy weight doors receiving high frequency service. Brass or stainless steel with stainless steel pin. Size of hinge is 5" x 4-1/2" and there are a variety of finishes available. For beveled edged doors.

PRICED PER PIECE - See full product details and specs in the tabs below

See Hager Hinges Color Chart for a detailed list of Hager finishes.

See tabs below for additional information
    • SKU
      HGBB1196-5x4.5-US10-LH
    • Market price:$484.78
      • save 50%
    • Starting price: Price: $242.39 per item


    This commercial grade Architectural hinge, by Hager Companies, is a full mortise anchor hinge. It is a five knuckle, four ball bearing hinge and heavy weight. For beveled edged doors.  Must be used with one pair heavy weight, full mortise hinges (BB1168 or BB1199)-sold separately.

    Hinge Size: 5" x 4-1/2"

    Hinge SizeGauge of Metal
    Hole
    Count
    		Screw Size
      Inches  mm      Machine  Wood
      5" x 4-1/2"   127 x 114   0.190   18 1/2 x 12-24  1-1/4 x 12

    Handed: This hinge is available for right handed or left handed doors, specify when ordering. Click here to learn How to Determine Handing.

    Custom colors available. For details and pricing please contact us or call us at 845-388-1300.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product data tab for exact measurements.

    This product has a lifetime guarantee against defects in workmanship and materials.

    Click here to view all our Architectural Hinges.

    To view all hinges in this category, see How to Choose a 5 Knuckle Anchor Hinge.

      • SKU
        HGBB1196-5x4.5-US10-LH
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      BB1196
    • Handing
      Left Handed, Right Handed
    • Product Design
      • Hinge Category
        Anchor Hinge, Full Mortised Hinge
      • Base Material
        Brass, Stainless Steel
      • Usage Level
        Heavy Duty
      • Throw
        Standard Throw
      • Bearing Type
        Ball Bearing
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        5" x 4-1/2"
      • Hinge Thickness
        .190" Thick
    • Installation
      • Door Type
        Beveled Edge Door
      • Installation Screws
        Provided.
    • Finishes
      • Finish
        Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Chrome (US26D), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        A156.1, A2511, A5511
      • Warranty
        Lifetime Limited Warranty

    Click to Print BB1196 Template-Beveled Edge Doors

     See above for beveled edge door template.
