Hager BB1266, 4 Ball Bearing, Steel, Extra Heavy Weight, 5 Knuckle, Full Surface, Swing Clear Hinge, For Beveled Surfaces
Full Surface, Architectural swing clear hinge, by Hager Companies. Four ball bearing, heavy weight and made of steel with a stainless steel pin. Hinge is available in a variety of finishes and size 5".
PRICED PER PIECE - See full product details and specs in the tabs below
See Hager Hinges Color Chart for a detailed list of Hager finishes.
Full Surface, Architectural swing clear hinge, by Hager Companies. Four ball bearing, heavy weight and made of steel with a stainless steel pin. For use in hospitals or other institutional type buildings.

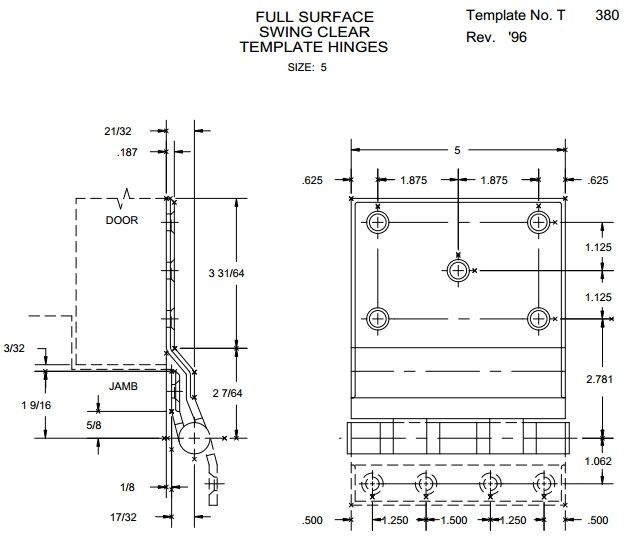

Available Sizes:
Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
Inches | mm | Machine | Wood | ||
5" | 127 | 0.187 | 9 | 2 x 1/4-20 FH | 1/2 x 1/4-20 FH |
Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.
Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable, which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. Contains button tip and plug.
- Option of Non-removable pin (NRP). Pins which have a groove milled into them. A set screw is inserted through the middle knuckle into the groove. This way the pin, hinge and door cannot be removed by burglars and the like.
- Reversible: This hinge can be used for a right handed or left handed door. Simply turn the hinge over, not necessary to remove and replace the hinge pin.
- ADA Compliant: When opened 90°, door projects 11/64" past stop of jamb.
Installation screws provided.
Priced per piece.

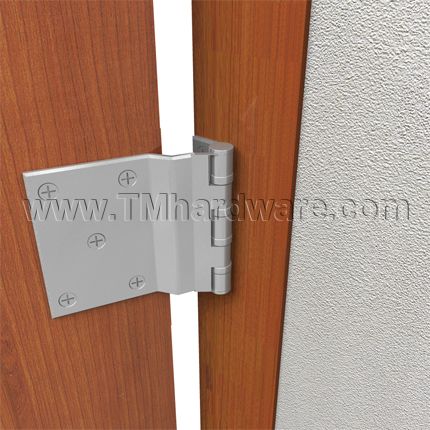

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in workmanship and materials.
Click here to view an Antique Bronze Oiled 4-1/2" x 4-1/2" Hager Hinge.
To view all hinges in this category, see How to Choose a 5 Knuckle Swing Clear Hinge.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNBB1266
- Product Design
-
Hinge CategoryFull Surface Hinge, Swing Clear Hinge
-
Base MaterialSteel
-
Usage LevelExtra Heavy Duty
-
ThrowSwing Clear Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Number of Holes9 Holes
-
- Dimensions
-
Hinge Size5"
-
Hinge Thickness.190" Thick
-
- Installation
-
Door TypeWooden Door, Metal Door
-
Installation ScrewsInstallation screws provided.
-
- Additional Options - Purchase Through Our Office
-
Reverse Hole PatternYes
-
- Finishes
-
FinishPrime Coat (USP), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Satin Chrome (US26D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified, ADA Compliant
-
ANSI DesignationA8321
-
Warranty3 Year Limited Warranty
-
